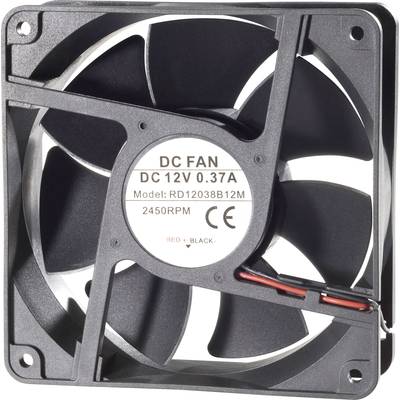

Conrad Components RD12038B12H Axial fan 12 V DC 193 m³/h (L x W x H) 120 x 120 x 38 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
12 V DC
Power
6 W
Type of bearing
Double ball bearing
Air flow rate
193 m³/h
Datasheet (PDF)
Show alternatives
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
5
3% = € 0.63
€ 20.37
10
5% = € 1.05
€ 19.95
50
10% = € 2.10
€ 18.90
100
20% = € 4.20
€ 16.80
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 21.00 / piece)
€
Highlights & Details
Waterproof fan IP58 120 x 120 mm
- Degree of protection IP58
Technical specifications
- Product type
Axial fan
- Type
RD12038B12H
- Nominal voltage
12 V DC
- Max. current consumption
500 mA
6 W
- Type of bearing
Double ball bearing
- Rotational speed
2800 U/min
- Noise emission (max.)
44.6 dB
- Air flow rate
193 m³/h
- Factory colour
Black
- Material
Plastic
50000 h
IP58
- Min. temperature
-10 °C
- Max. temperature
70 °C

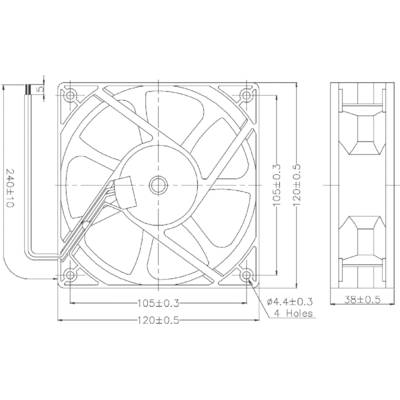

- Length
120 mm
- Width
120 mm
- Height
38 mm
- Dim
(L x W x H) 120 x 120 x 38 mm
- Material (details)
Plastic (PBT)
6 W
- Output (max.) (details)
193 m³/h
- Max. noise generation
44 6 dBa
- Nominal RPM
2800 U/min
- Nominal voltage (details)
12 V DC
- Current consumption
0.5 A
- Temperature range
-10 - +70 °C
- Operating voltage
7 - 13.8 V DC
Documents & Downloads
Datasheet
Datasheet 189259 Conrad Components RD12038B12H Axial fan 12 V DC 193 m³/h (L x W x H) 120 x 120 x 38 mm
User & Safety Instructions
User & Safety Instructions 189259 Conrad Components RD12038B12H Axial fan 12 V DC 193 m³/h (L x W x H) 120 x 120 x 38 mm
Conformity certificate
Conformity certificate 189259 Conrad Components RD12038B12H Axial fan 12 V DC 193 m³/h (L x W x H) 120 x 120 x 38 mm
Description

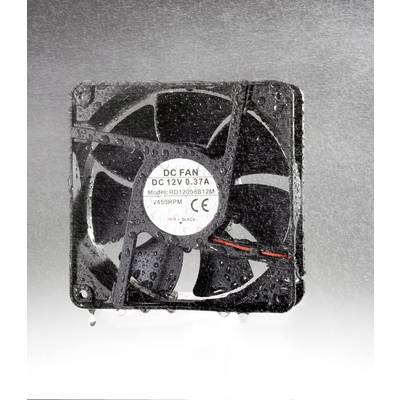

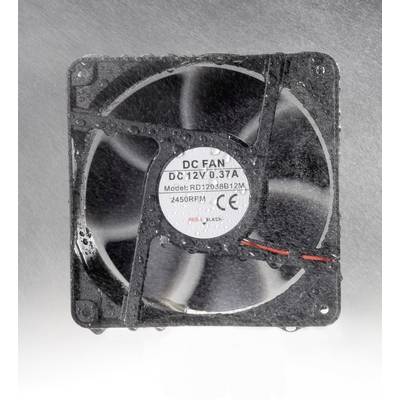

Waterproof fan degree of protection IP58, with double ball bearing. Direction of rotation on the rotor seen on the left side; by blowing webs.
Scope of delivery
- Axial Fans
- User manual.
