Voltcraft IR1000-50CAM Infrared Thermometer -50 to +1000 °C
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 331.93
5
4% = € 13.27
€ 318.66
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 331.93 / piece)
€ 331.93
plus VAT.
Highlights & Details
- 50:1 optics
- Measuring range -50 to +1000 ° C
- Real-image display with temperature
Technical specifications
- Emissivity
0.10 - 1.00
- Dim
- Emission level (max.)
1.0
- Emission level (min.)
0.1
- Features
Contact measurement
- Sensor type
K
- Display
50:1
- Basic accuracy
1 %
- Accuracy ± °C
1 °C
- Resolution (temperature)
0.1 °C
- Pick-up time (details)
150 ms
- Accuracy
±1%/±1 °C
- Temperature
-50 to +1000 °C
- Power supply (details)
MiniUSB/USB
- Max. temperature
+1000 °C
- Min. temperature
-50 °C
- Product type
IR thermometer
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 100959 Voltcraft IR1000-50CAM Infrared Thermometer -50 to +1000 °C
Information
Information 100959 Voltcraft IR1000-50CAM Infrared Thermometer -50 to +1000 °C
Conformity certificate
Conformity certificate 100959 Voltcraft IR1000-50CAM Infrared Thermometer -50 to +1000 °C
Warranty Terms
Warranty Terms 100959 Voltcraft IR1000-50CAM Infrared Thermometer -50 to +1000 °C
Description

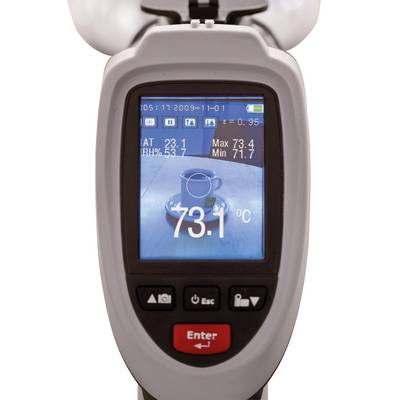

The IR1000-50CAM is a non-contact infrared thermometer with built-in digital colour camera. The real picture is displayed together with the measured temperature value and all other parameters in the 5.5 cm TFT screen and can be saved as a jpg image or 3gp video file on the built-in flash memory or microSD card. A dual laser enables simple spot measurements with precise sighting. The extensive equipment is ideal for troubleshooting, service and documentation eg construction, electrical installation area, crafts as well as heating and air conditioning.
Features
- Measurement functions selectable via menu
- Display of rel. Humidity and Temperature
- Calculation of dew point and wet bulb temperature (Wet Bulb)
- contact measurement via K-type thermocouple
- Adjustable emissivity for measurement correction as adjustable on glossy surfaces
- Fast measurement rate for comfortable measurements
- Hi / Lo alarm function
- Min / Max / Avg / difference measurement display
- Menu language
- Data Logger
- Image and video playback mode
- Removable Li-ion battery
- Auto Power Off
- TFT colour display with backlight
- lens protection cover
Scope of delivery
- Tripod
- USB cable (MiniUSB - USB)
- Power Supply
- Li-ion battery
- case
- Contact thermosensor
- User manual
Hints
Please order microSD separately
