Highlights & Details

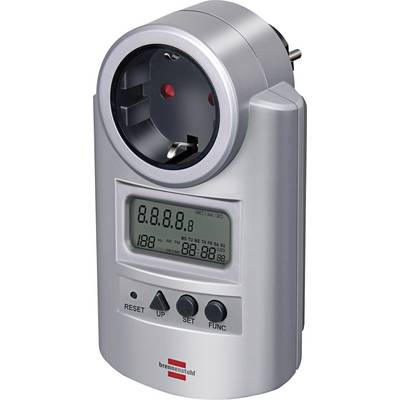

Brennenstuhl PM 231 E Energy consumption meter
- Brennenstuhl
Technical specifications
- Buffer batteries: 3 button cells (LR44)
- Product type
Energy consumption meter
- Type
PM 231 E
- Energy meter features
Selectable energy tariffs
- Suitable for (country)
Germany
Sweden
Austria
Finland
Norway
Slovenia
Hungary
Estonia
Latvia
Bulgaria
Show more
- Reading type
Active power
Energy consumption
Power factor
Nominal voltage
Amperage
Frequency
- Nominal voltage range
190 up to 276 V AC
- Mains voltage (max.)
276 V AC
- Mains voltage (min.)
190 V AC
- Energy consumption range
0 up to 9999.9 kWh
- Energy consumption (max.)
9999.9 kWh
- Energy consumption (min.)
0 kWh
- Power (max.)
3600 W
- Active power (min.)
0.2 W
- Operating voltage
230 V AC
- Current range
0.01 up to 16 A
- Current (max.)
16 A
- Current (min.)
0.01 A
- Weight
0.21
- Active power range
0.2 up to 3600 W
- Frequency
50 Hz
- Accuracy
1 %
- MID-approved
No
- Type
For mains outlets
- Factory colour
Silver
- Frequency
45 - 65 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 103696 Brennenstuhl PM 231 E Energy consumption meter Selectable energy tariffs
User & Safety Instructions 103696 Brennenstuhl PM 231 E Energy consumption meter Selectable energy tariffs
Description
The Primera -Line energy meter PM 231 E from Brennenstuhl is used for cost and energy saving. The electricity meter enables the measurement of voltage, frequency, current, power factor and power of all connected devices. In addition, it calculates the total energy consumption and thus determines all "power guzzlers" in the household or also in the office. The ammeter also has the following features:
- 2 individually adjustable electricity tariffs
- including 3 LR44 batteries for data storage in case of power failure
- Socket with increased touch protection
This text is machine translated.
- 2 individually adjustable electricity tariffs
- including 3 LR44 batteries for data storage in case of power failure
- Socket with increased touch protection
This text is machine translated.
Features
- Measurement of voltage, frequency, current, power factor and power
- Calculation of the total energy consumption and energy costs
- Display of the measuring time in hours and minutes
- 2 individually adjustable electricity tariffs (day + night)
- Socket with increased touch protection
- incl. 3 batteries LR44 for data storage in case of power failure.
Scope of delivery
- Batteries
- User manual.
