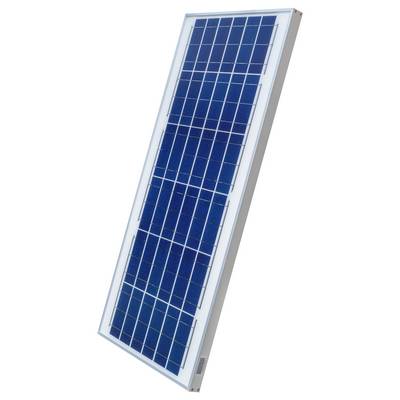

Sunset AS 50 C Monocrystalline solar panel 50 Wp 12 V
EAN:
Part number:
Item no:
Sales and shipping:
Total (€ 100.83 / piece)
€ 180.67
-44 %
€
Highlights & Details
Mono-crystalline solar module AS 50 C, 50 Watt
- High-quality and powerful 50 watt solar module
- Module made in German "Made in Germany"
- Monocrystalline silicon cells
- High performance and quality
- Hardened solar glass
- Anodised aluminum profile
Technical specifications
- Cable cross section 4 mm².
- Protection class IP65
- Cable gland PG7
- Product type
Monocrystalline solar panel
50 Wp
- Nominal voltage
12 V
- Dim
(L x W x H) 980 x 450 x 40 mm
- Efficiency
21 %
- Connector
Junction box
- Weight
5.72 kg
- Short-circuit current
3100 mA
- Open circuit voltage (OCV)
22.1 V
- Nominal current
2750 mA
- Width
450 mm
- Height
40 mm
- Length
980 mm
- Voltage (max.)
18 V
- Type
AS 50 C
- Module height
40 mm
- Module length
980 mm
- Module width
450 mm
- Module power (max.)
50 Wp
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1217907 Sunset AS 50 C Monocrystalline solar panel 50 Wp 12 V
Information
Information 1217907 Sunset AS 50 C Monocrystalline solar panel 50 Wp 12 V
Description
This high-quality 50 W solar module is made from mono-crystalline silicon in Germany.
The advantage of this module is its superior efficiency and high short-circuit current.
The AS 50C is therefore particularly well suited for battery charging in small and medium-sized stand-alone systems. Even under diffused lighting conditions(for example: cloudy sky) mono-crystalline modules deliver a high energy yield.
In addition, they have high long-term stability and provide an almost constant power supply over their entire lifecycle.
How much energy is available: Up to: 200 Wh
During weekend operation up to: 1000 Wh
This proven modular design protects the solar cells from moisture ingress, offers UV stability and also enables thermal expansion.
The solar cells themselves are embedded in the flexible EVA plastic of the module laminate and are permanently bonded to the front cover, which is made of special hardened, highly transparent glass.
This bond protects from moisture ingress, guarantees UV stability and enables thermal expansion.
The warp-resistant module frame is made from anodised aluminium and provides particularly high mechanical stability, guaranteeing easy installation of the module.
The electrical connection is made via a weather-proof connection box on the rear side, in which also the protection diodes are integrated.
This text is machine translated.
The advantage of this module is its superior efficiency and high short-circuit current.
The AS 50C is therefore particularly well suited for battery charging in small and medium-sized stand-alone systems. Even under diffused lighting conditions(for example: cloudy sky) mono-crystalline modules deliver a high energy yield.
In addition, they have high long-term stability and provide an almost constant power supply over their entire lifecycle.
How much energy is available: Up to: 200 Wh
During weekend operation up to: 1000 Wh
This proven modular design protects the solar cells from moisture ingress, offers UV stability and also enables thermal expansion.
The solar cells themselves are embedded in the flexible EVA plastic of the module laminate and are permanently bonded to the front cover, which is made of special hardened, highly transparent glass.
This bond protects from moisture ingress, guarantees UV stability and enables thermal expansion.
The warp-resistant module frame is made from anodised aluminium and provides particularly high mechanical stability, guaranteeing easy installation of the module.
The electrical connection is made via a weather-proof connection box on the rear side, in which also the protection diodes are integrated.
This text is machine translated.
Features
- High power output even under overcast sky
- Hardened and highly transparent special glass
- High quality and durable
- UV and moisture resistant
- Warp-resistant and anodized aluminum frame
- Cells embedded in EVA plastic
- High efficiency
Scope of delivery
- Solar module
- User manual.
Hints
Subject to errors and technical changes; similar illustrations.
