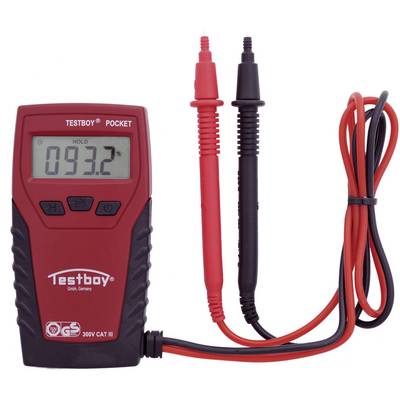

Testboy TB Pocket Handheld multimeter Digital CAT III 300 V Display (counts): 2000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Pocket Digital multimeter
- CAT III 300 V
- Built-in LED flashlight
Technical specifications
- Voltage reading range DC (min.)
1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
300 V
- V AC reading range (min.)
1 mV
- V AC reading range (max.)
300 V
- Reading range - resistance
0 - 10 MΩ
- Reading range - capacity
10 pF - 200µF
- Frequency reading range
0,001 Hz - 200 kHz
- DC resistance
3 MΩ
- AC resistance
3 MΩ
- Basic accuracy
0.8 %
- Measurement type (details)
Average
- Frequency range
40 Hz - 70 Hz Hz
- Interfaces
none
- Power supply (details)
2 x 1.5 V AAA battery (LR03)
- Height
170 mm
- Width
90 mm
- Weight
170 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 300 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
TB Pocket
- Display
Digital
- Display (counts)
2000
- Dim
(W x H) 90 mm x 170 mm
- Displays
LCD
- Reading category
CAT III 300 V
Documents & Downloads
Datasheet
Datasheet 123179 Testboy TB Pocket Handheld multimeter Digital CAT III 300 V Display (counts): 2000
User & Safety Instructions
User & Safety Instructions 123179 Testboy TB Pocket Handheld multimeter Digital CAT III 300 V Display (counts): 2000
Description
The Testboy Pocket is a robust high-performance multimeter for harsh environmental conditions. The results can be ready easily by the large-sized LCD and the Data Hold feature. The Auto Range feature saves the user from the hassle of annoying switchover of measuring range. Since Pocket Testboy is easy to use it is an ideal companion for every service technician
Features
- AC / DC voltage measurement
- Resistance measurement
- Continuity test with audio signal
- Data-hold function Data-hold function
- Auto Range feature
- Protection class: IP44.
Scope of delivery
- Pocket Digital multimeter
- Handy case
- 2 x 1.5 V AAA batteries
- User manual.
