H-Tronic 191507 DC speed controller Component 12 V DC, 24 V DC 10 A
EAN:
Part number:
Item no:
Number
Total (€ 38.65 / piece)
€ 38.65
plus VAT.
Highlights & Details

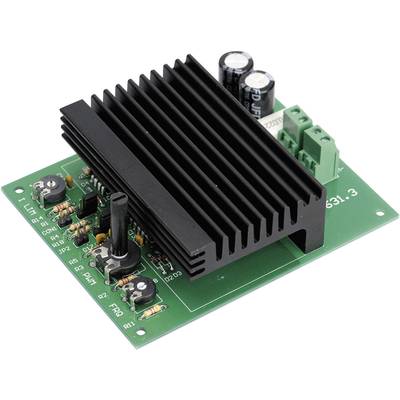

H-Tronic 191507 DC speed controller Component 12 V DC, 24 V DC 10 A
- Continuous adjustment.
- Minimal power loss
Technical specifications
- Speed setting: 0 - 100% via potentiometer or external control voltage.
- Operating voltage
12 - 24 V DC
- Output rating
0 - 10 A
- Version
Component
- Dim
(L x W) 110 mm x 90 mm
- Length
110 mm
- Width
90 mm
- Output current
10 A
- Output rating
240 W
- Operating voltage
12 V DC
24 V DC
- Product type
DC speed controller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 191507 H-Tronic 191507 DC speed controller Component 12 V DC, 24 V DC 10 A
Information
Information 191507 H-Tronic 191507 DC speed controller Component 12 V DC, 24 V DC 10 A
Description
Continuously adjustable speed for low-voltage electric motor. This motor is mainly used with DC power drills, model cars, windshield wiper drives as well as electronic tools. Due to the pulse duration control, which works with an adjustable frequency between 600 Hz and approx. 2 kHz, the power loss is kept minimal even at low speeds. The output current from 0 to 10 A can be continuously adjusted with a trim-pot.
Features
- Speed adjustable from 0 – 100 %.
