Buy GNB Sprinter XP12V3000 NAXP123000HP0FA VRLA 12 V 92.8 Ah AGM (W x H x D) 309 x 239 x 172 mm M6 connector Maintenance-fre

A silver car battery with handles. Label shows 'Sprinter XP12V3000'. Disposal symbols and voltage indication are visible.

Four grey batteries of different sizes with handles, arranged from left to right by size. They all bear the same label.

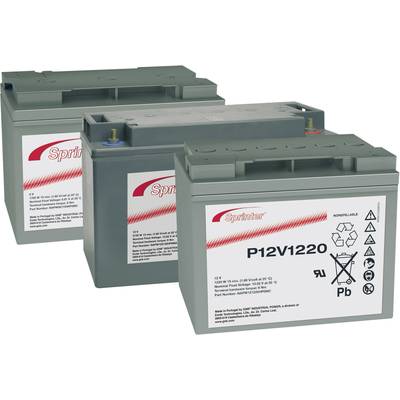

Three grey batteries with the inscription 'Sprinter' and 'P12V1220', various symbols underneath. Primarily used for industrial purposes.

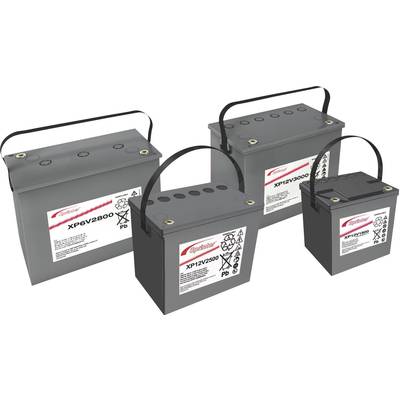

Four grey batteries with handles in different sizes stand side by side. Each battery has a label with technical specifications.

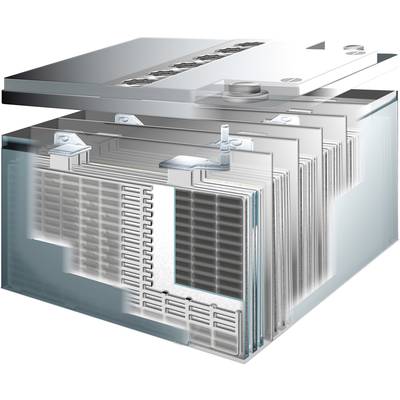

Cross-section of a car battery with multiple layered plates and terminals in a transparent casing, showing internal structure.

1/5

Datasheet (PDF)

Unavailable

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 357.14 / piece)

€ 357.14

plus VAT.

Report legal concerns

Highlights & Details

Lead nonwoven battery XP12V3000

maintenance-free
Excellent high current performance
Optimized for short unloading
Grid plate excellent lead-calcium alloy for best corrosion resistance

Technical specifications

Internal resistance 5.2 mΩ
Short-circuit current 2425 A

Dim: (W x H x D) 309 x 239 x 172 mm

Product type: VRLA

Technology: AGM

Voltage: 12 V

Capacity (mAh, Ah): 92.8 Ah

Height: 239 mm

Weight: 32.8 kg

Content: 1 pc(s)

Type: XP12V3000

Rechargeable: Yes

Connector: M6 connector

Depth: 172 mm

Width: 309 mm

Features: Maintenance-free

Pin type: F-M6

VDS certification: No

Documents & Downloads

Datasheet

Datasheet 617808 GNB Sprinter XP12V3000 NAXP123000HP0FA VRLA 12 V 92.8 Ah AGM (W x H x D) 309 x 239 x 172 mm M6 connector Maintenance-fre

Security datasheet

Security datasheet 617808 GNB Sprinter XP12V3000 NAXP123000HP0FA VRLA 12 V 92.8 Ah AGM (W x H x D) 309 x 239 x 172 mm M6 connector Maintenance-fre

Description

Extremely powerful and compact AGM battery. Ideal for uninterruptible power supply (UPS) as well as for all other areas of the emergency power supply.

Features

(No topping up) Maintenance-free
over the entire service life
Excellent high current performance high compressive, absorbent glass mat separator (AGM) technology
Optimized for short unloading
Very low self storage life
Short recharge times
Design Life: 12 years
High Performance EUROBAT classification
grid plates in excellent lead-calcium alloy for best corrosion resistance
Very low gassing due to internal gas recombination rate of 99%
outstanding power density
Designed in consideration of the IEC 60896-21 / -22
Completely recyclable
UL (underwriters Laboratories) certified
Proposal has no transport of operational blocks, either on the rail, on the road, sea or in the air (IATA, DGR, set A67)
