Buy GNB Marathon EXIM12V90FT NAMF120090HM0FB VRLA 12 V 86 Ah AGM (W x H x D) 105 x 270 x 395 mm M6 connector Maintenance-fre

Battery with 'Marathon M12V90F' label, grey casing, recycling symbols and warning notices visible.

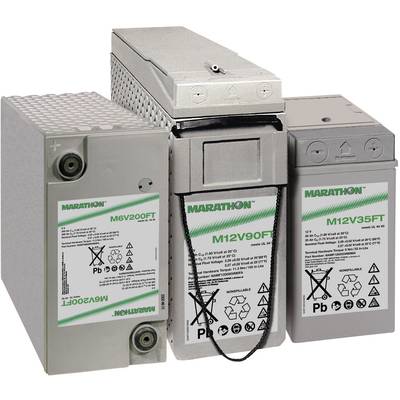

Three batteries of different sizes with green labels. Each is marked with 'Marathon' and includes symbols for disposal.

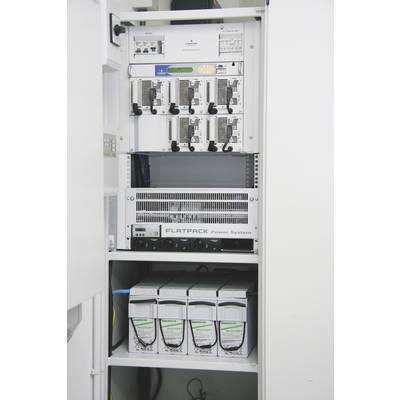

An open server rack with multiple technical devices such as a router, network cards, and power supply units.

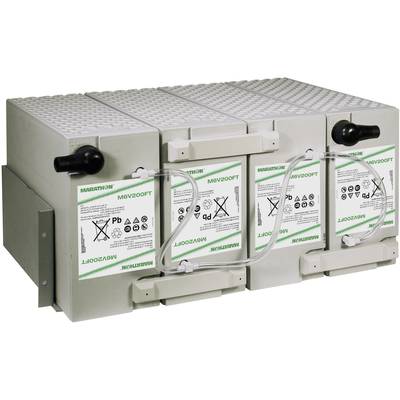

Three batteries mounted side by side, labelled 'Marathon M6V200FT', suitable for industrial energy applications.

1/5

Datasheet (PDF)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 382.35 / piece)

€

Report legal concerns

Highlights & Details

Lead nonwoven battery M12V90FT

maintenance-free
Front connection of the poles
Grid plate excellent lead-calcium alloy for best corrosion resistance

Technical specifications

Internal resistance 5.1 mΩ
Short-circuit current2440A

Technology: AGM

Voltage: 12 V

Capacity (mAh, Ah): 86 Ah

Height: 270 mm

Weight: 31 kg

Content: 1 pc(s)

Type: EXIM12V90FT

Rechargeable: Yes

Dim: (W x H x D) 105 x 270 x 395 mm

Depth: 395 mm

Width: 105 mm

Features: Maintenance-free

Connector: M6 connector

Pin type: F-M 6-90°

Range of use: Alarm systems
Electric vehicles

VDS certification: No

Product type: VRLA

Documents & Downloads

Datasheet

Datasheet 617820 GNB Marathon EXIM12V90FT NAMF120090HM0FB VRLA 12 V 86 Ah AGM (W x H x D) 105 x 270 x 395 mm M6 connector Maintenance-fre

User & Safety Instructions

User & Safety Instructions 617820 GNB Marathon EXIM12V90FT NAMF120090HM0FB VRLA 12 V 86 Ah AGM (W x H x D) 105 x 270 x 395 mm M6 connector Maintenance-fre

Security datasheet

Security datasheet 617820 GNB Marathon EXIM12V90FT NAMF120090HM0FB VRLA 12 V 86 Ah AGM (W x H x D) 105 x 270 x 395 mm M6 connector Maintenance-fre

Description

For special use in telecommunications and power supply applications, this battery offers high performance and durability for medium and longer backup time. The arrangement of the terminals for front mounting (instead of the connector on the cover) is substantially facilitates the installation and maintenance, especially when the batteries are installed in cabinets or modules in standard interconnection in battery racks.

Features

(No topping up) Maintenance-free over the entire service life
Front connection of the poles
Easy access for easier installation and maintenance
Highly compressed, absorbent glass mat separator (AGM) technology
central gas
tie plates in an excellent lead-calcium alloy for best corrosion resistance
Short recharge time
Very low gassing due to internal gas recombination rate of 99%
Low self-discharge rate, extended shelf life
design Life: 12 years
high performance EUROBAT classification
Durable polypropylene housing problems at higher operating temperatures
Low energy consumption
Designed in accordance with IEC 60896-21 / -22
Completely recyclable
UL (underwriters Laboratories) certified
Trouble-free transportation of operational blocks, either on the rail, on the road, sea or in the air (IATA, DGR, set A67)
