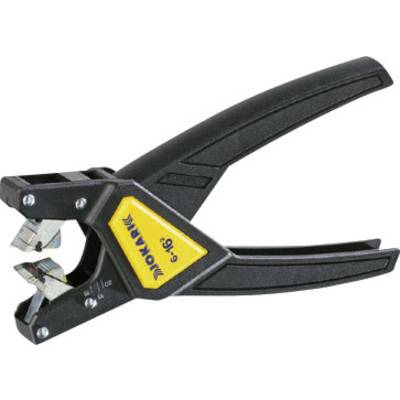

Automatic stripper Suitable for PVC-coated cables, Double-insulated solar cables 6 up to 16 mm² 5 up to 10 Jokari 20090
EAN:
Part number:
Item no:
42 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 57.13 / piece)
€ 59.66
€
Technical specifications
- Suitable for
PVC-coated cables
Double-insulated solar cables
- Working area (cross section)
6 up to 16 mm²
- Working area cross section (min.)
6 mm²
- Operating range (cross section) (max.)
16 mm²
- Operating range (AWG diameter)
5 up to 10
- Operating range (AWG cross section) (min.)
10
- Operating range (AWG cross section) (max.)
5 awg
- Length stop range
20 mm (max)
- Length stop (max.)
20 mm
- Length
166 mm
- Width
115 mm
- Weight
124.5 g
- Product type
Automatic stripper
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 829548 Automatic stripper Suitable for PVC-coated cables, Double-insulated solar cables 6 up to 16 mm² 5 up to 10 Jokari 20090
Description
Features
- For conductors with large cross-sections from 6 to 16 mm²
- Optical length stop up to 20 mm
- No adjustment required for the cable cross-section
- Unlimited stripping length
- Interchangeable blades - TÜV / GS approved.
