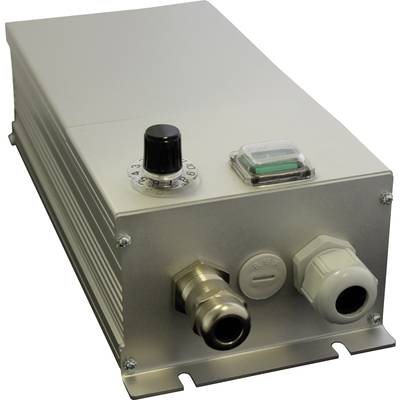

MSF-Vathauer Antriebstechnik Frequency inverter Vec eco 370/2-1-44-G1 0.37 kW 1-phase 230 V
EAN:
Part number:
Item no:
Total (€ 344.54 / piece)
€ 344.54
plus VAT.
Highlights & Details
Frequency converter VECTOR eco/1-phase
- Direct mounting on machinery and equipment
- Built-in potentiometer and switch-on and off switch
- IP 44
- Available from 0.09 kW to 0.75 kW
- Additional Start/Stop Input
- Thermal protection of the motor
Technical specifications
- Max. Motor power 0.37 kW
- Aluminium casing
- Ambient temperature: 0 - 40°C
- Input voltage
230 V
- Product type
Frequency inverter
- Output rating (max.)
0.37 kW
- Max. frequency
50 Hz
- Min. frequency
0 Hz
- Network
1-phase
- Frequency range
0 Hz - 50 Hz
- Nominal current
2.2 A
- Height
250 mm
- Width
112 mm
IP44
- Type
Vec eco 370/2-1-44-G1
- Filter class
C3
- Dim
(L x W x H) 70 x 112 x 250 mm
- Manufacturer part #
10 100001 0119
- Filter class/protection level
C3
- Length
70 mm
- Output voltage
3 x 230Vac
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1220091 MSF-Vathauer Antriebstechnik Frequency inverter Vec eco 370/2-1-44-G1 0.37 kW 1-phase 230 V
Conformity certificate
Conformity certificate 1220091 MSF-Vathauer Antriebstechnik Frequency inverter Vec eco 370/2-1-44-G1 0.37 kW 1-phase 230 V
Description
The Vector eco/1-phase is a frequency converter for the control of three-phase motors.
Due to its compact design, the Vector eco/1-phase directly to each conveyor belt and machine.
Its high protection class IP44 protects the electronics and provides for a wide range of applications.
Functions:
By means of its integrated control elements, the speed of the Vector eco/1-phase adjusted or the device is turned off.
A comprehensive thermal protection of the motor is by means of a built-in the motor temperature sensors (e.g. PTC or bimetallic switch).
Applications:
Flat, climbing, kink- and Z-conveyor belts as well as small conveyor belts, bunkers and roller conveyors.
