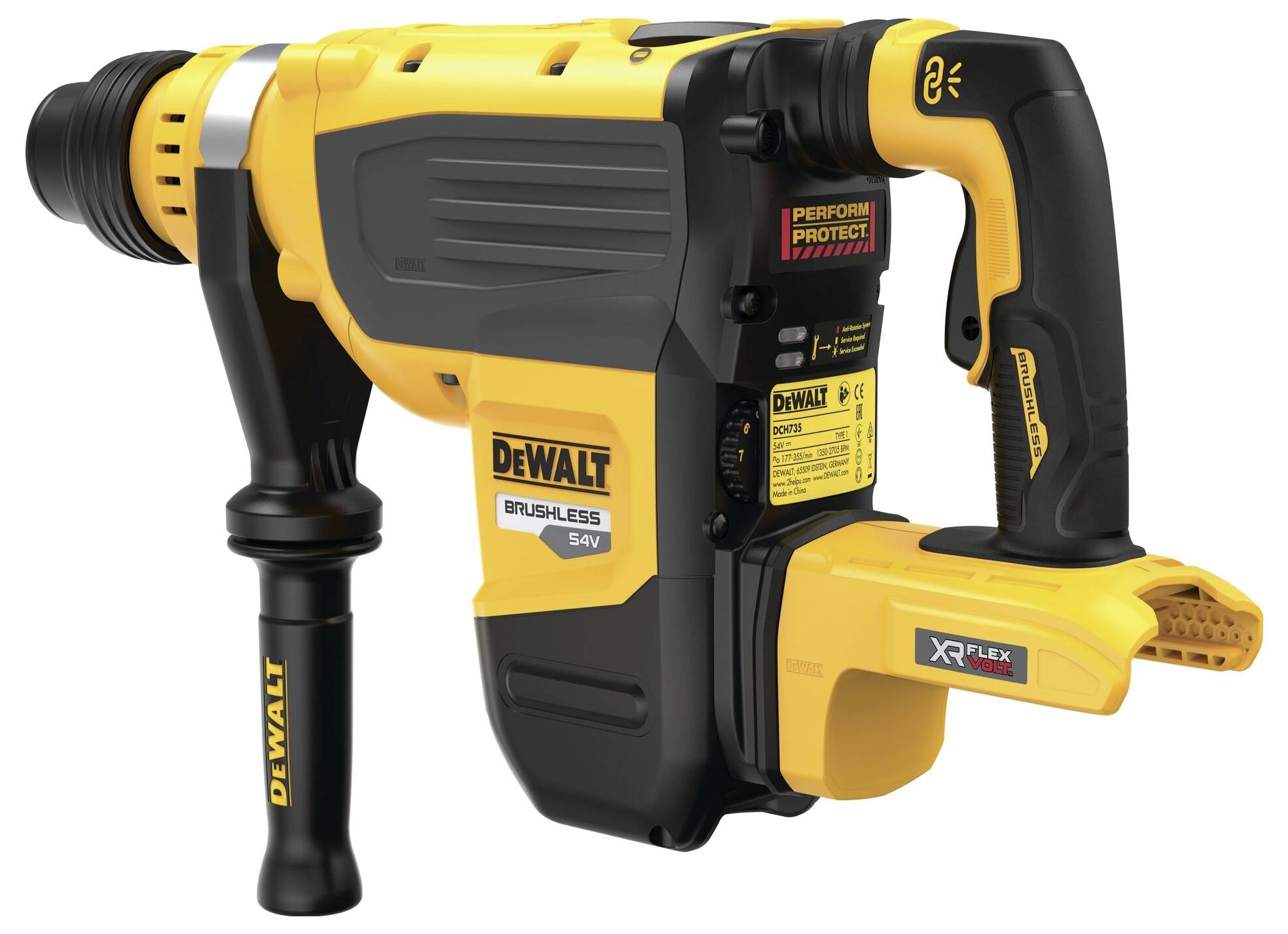

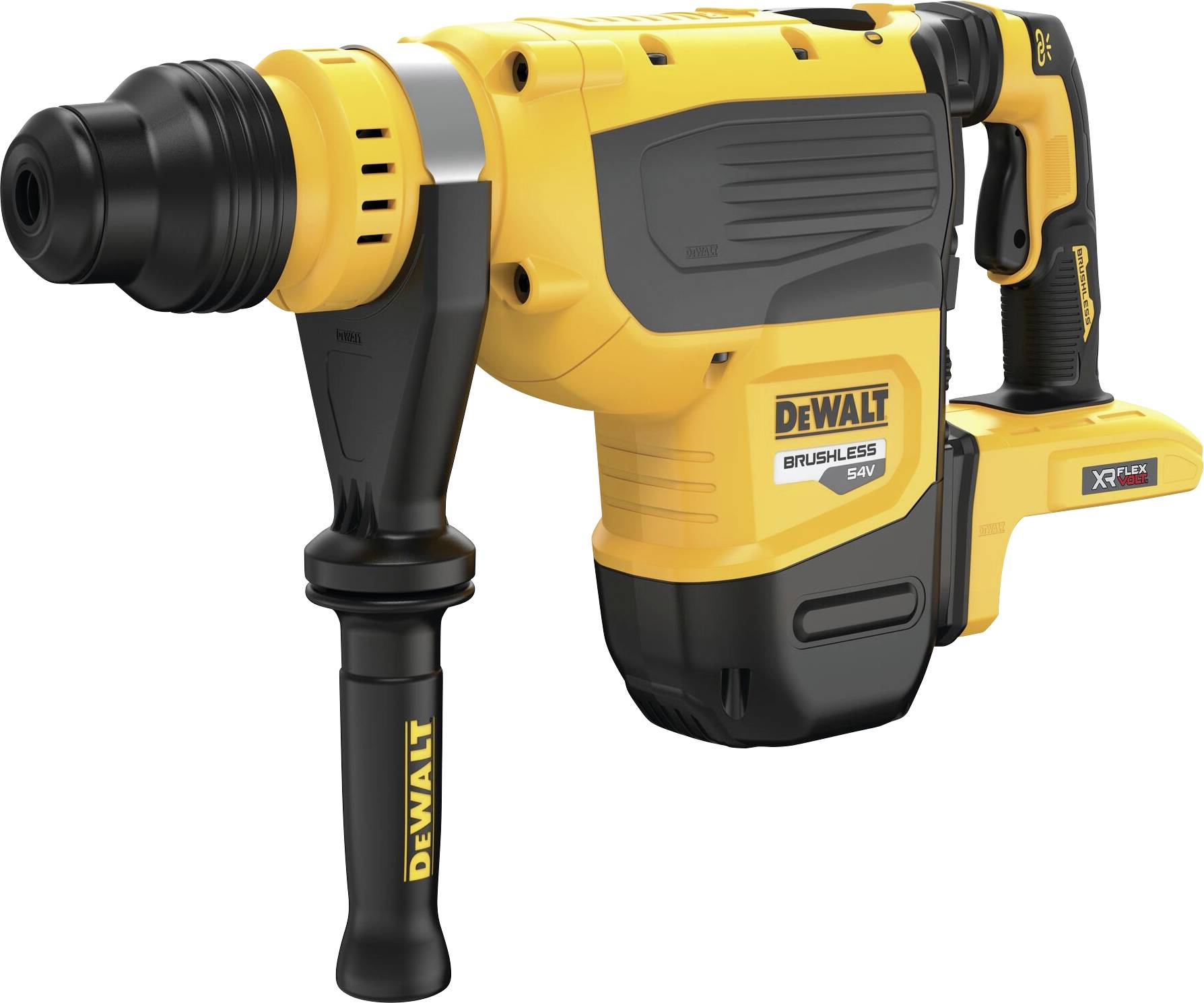

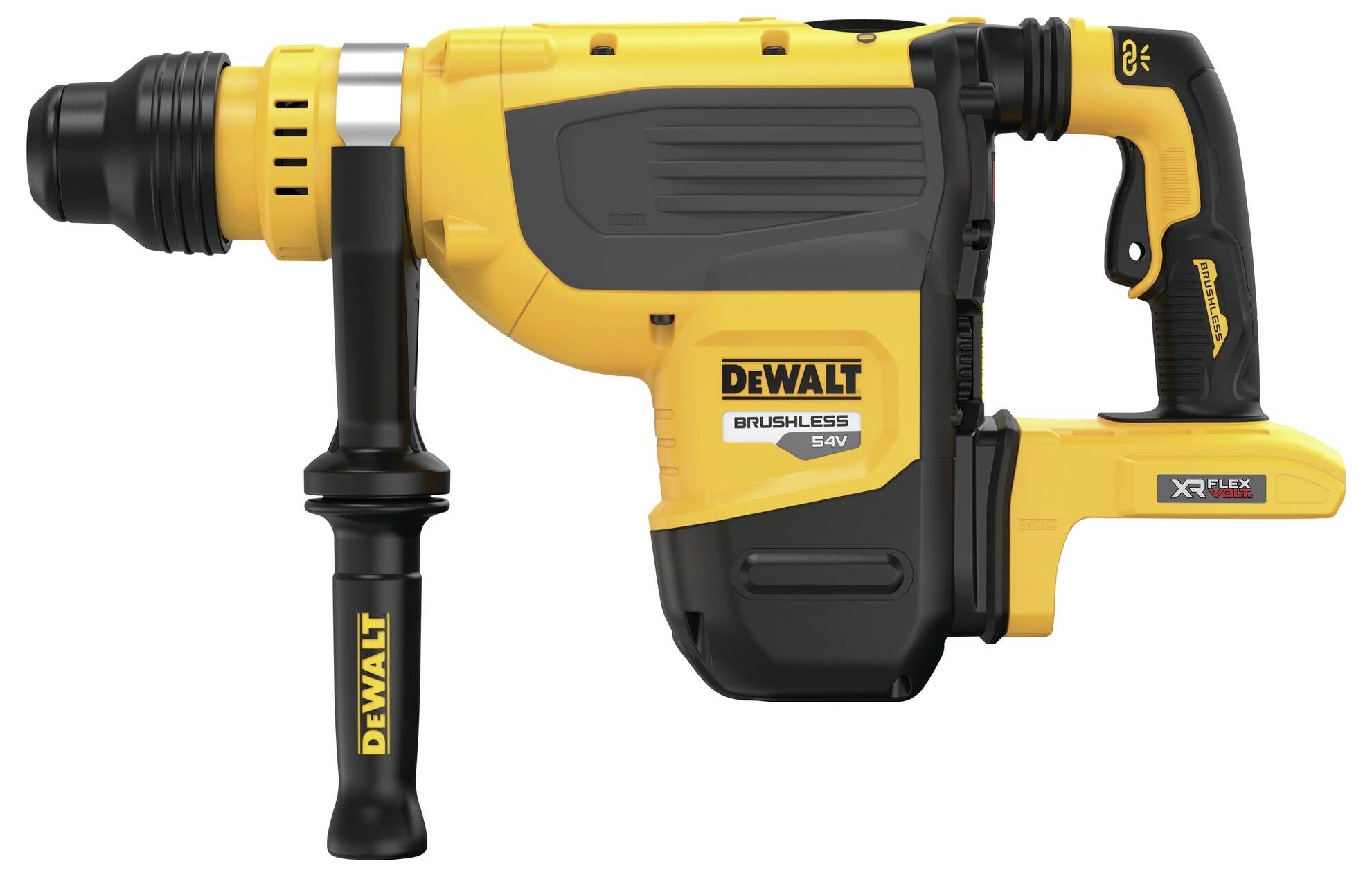

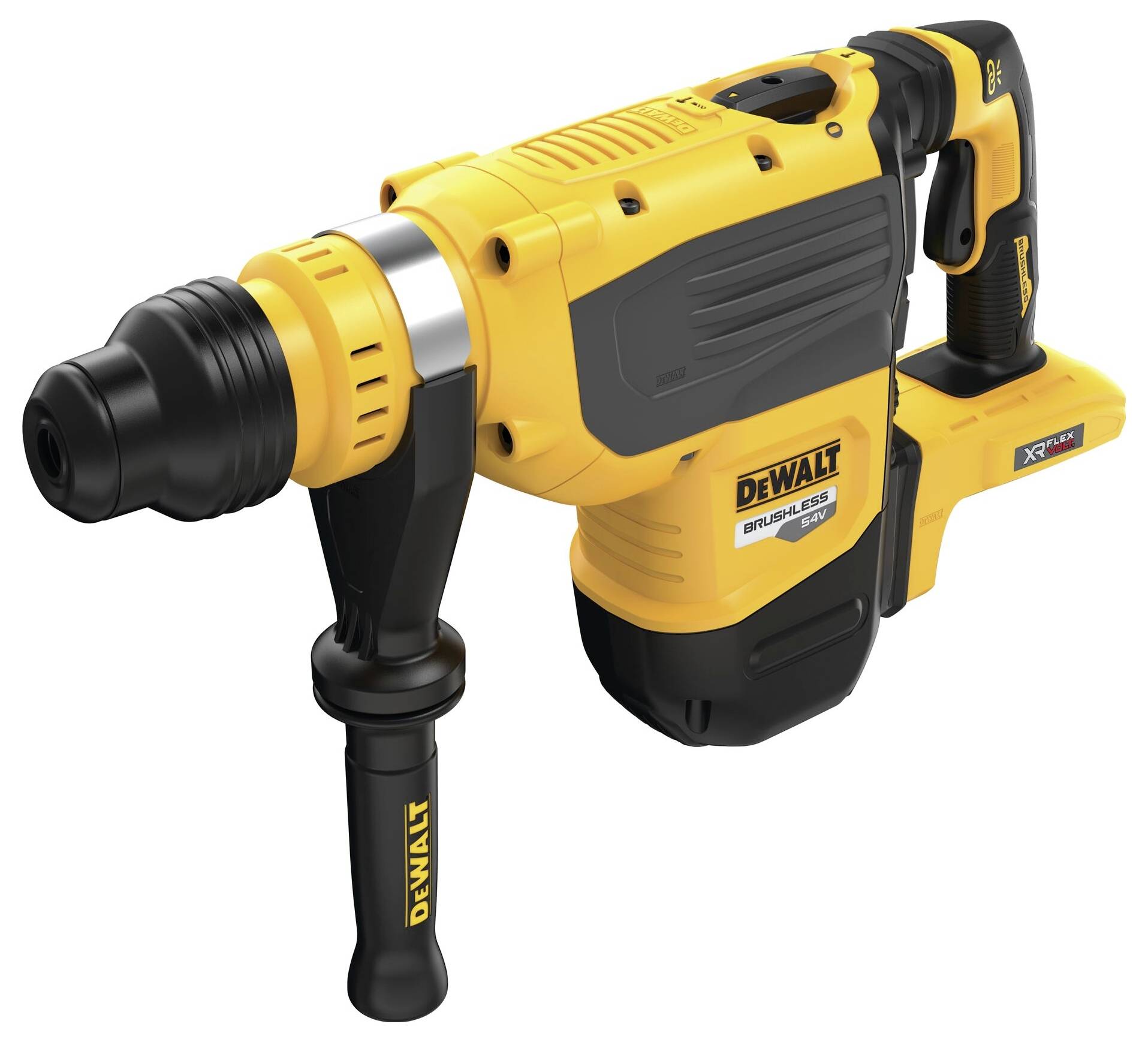

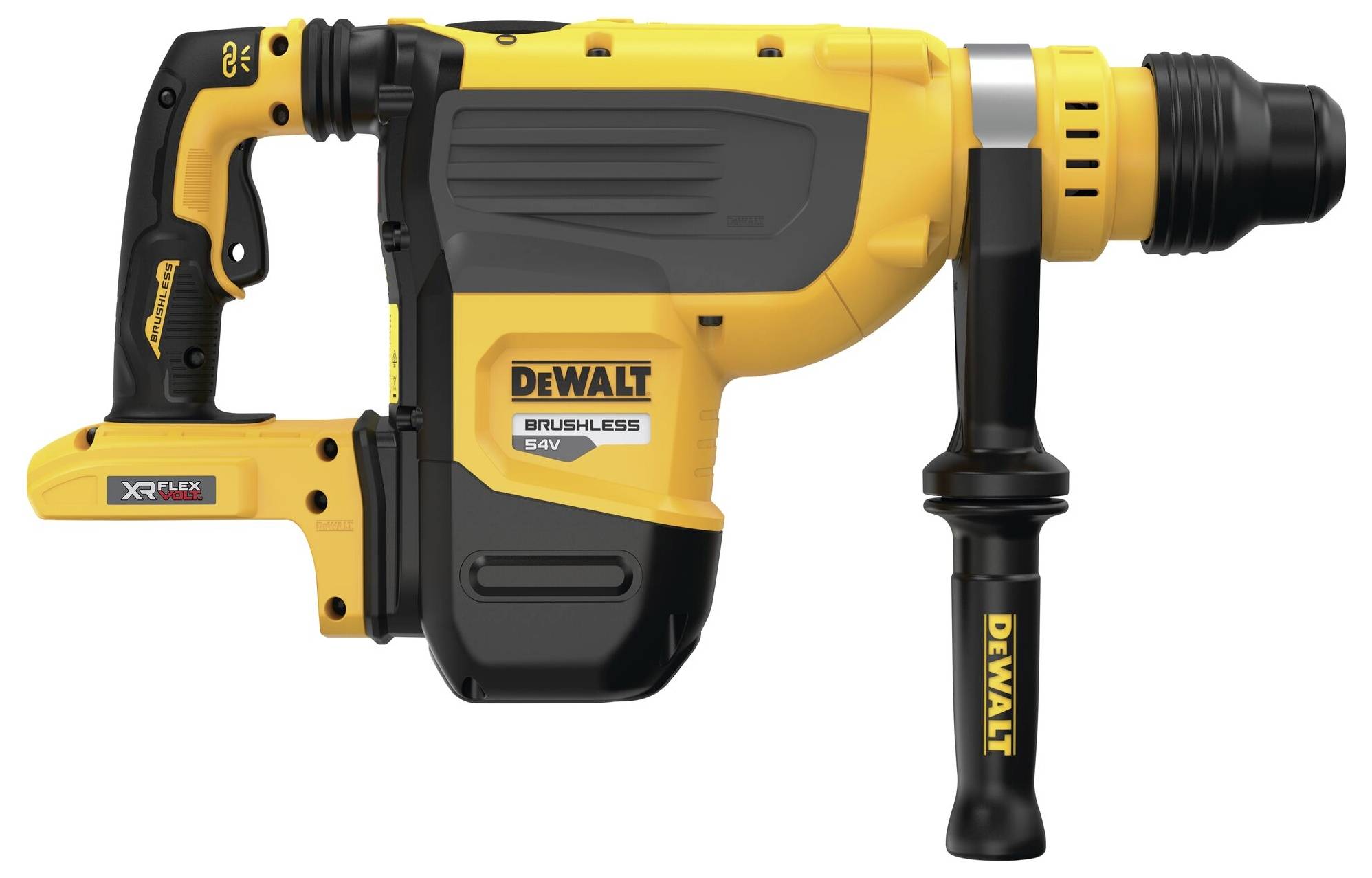

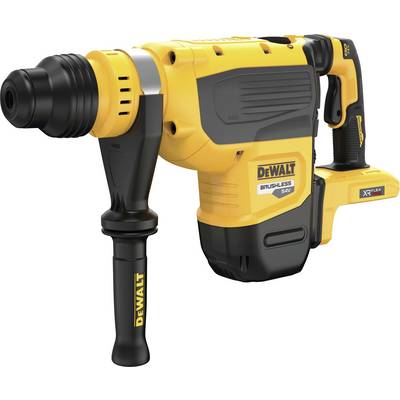

DEWALT DCH735N-XJ -Cordless hammer drill combo Li-ion w/o battery
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 772.27 / piece)
€ 772.27
plus VAT.
Highlights & Details
DEWALT DCH735N-XJ -Cordless hammer drill combo Li-ion w/o battery
- Impact (max.) 13.3 J
- Max. drill bit Ø
Technical specifications
- Product type
Cordless hammer drill combo
- Technology
Li-ion
- Operating voltage
54 V
- Blow count (max.)
2705 /min
- Impact (max.)
13.3 J
- Features
w/o battery
- Functions
Automatic load control
- Weight
0
- Weight, information
without rechargeable battery
- Length
284 mm
- Height
115 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3014991 DEWALT DCH735N-XJ -Cordless hammer drill combo Li-ion w/o battery
User & Safety Instructions
User & Safety Instructions 3014991 DEWALT DCH735N-XJ -Cordless hammer drill combo Li-ion w/o battery
Description
Dewalt DCH735N-XJ battery-combination hammer SDS-Max, 54V, base station.
This text is machine translated.
This text is machine translated.
Features
- Technical data:Battery technology: 54 Volt XR FLEXVOLT Li-Ion
- Idle speed (min-1): 177 – 355
- Idle speed (min-1): 1,350 – 2,705
- Single impact energy (J) (EPTA 05/2009): 13.3
- SDS Max. Tool attachment
- Optimum Ø range (mm): 25-38
- max. Drill-Ø Concrete (mm): 48
- max. Drill-Ø Core bits (mm): 125
- Weight (incl. 162 Wh battery
- kg) 9.7
- Triaxial vibration Hammer drilling in concrete (m/s²): 9.0
- Uncertainty factor K1 (m/s²): 1.5
- Sound pressure level LPA (dB(A)): 97.0
- Sound power level LWA (dB(A)): 108.0
- Uncertainty factor (dB(A)): 3.0
Scope of delivery
- Without rechargeable battery and without charger
- 1 PCs Battery-operated combination hammer DCH735N-XJ
- 1 pieces vibration-damping additional handle
- 1 pieces transport case
