Buy VOLTCRAFT FSP 2410 Bench PSU (fixed voltage) 24 - 29 V DC 10 A 240 W No. of outputs 1 x

A Voltcraft power supply unit, model FSP 2410, with an adjustable DC output from 23V to 29V and a maximum current of 10A. Power switch located on the right.

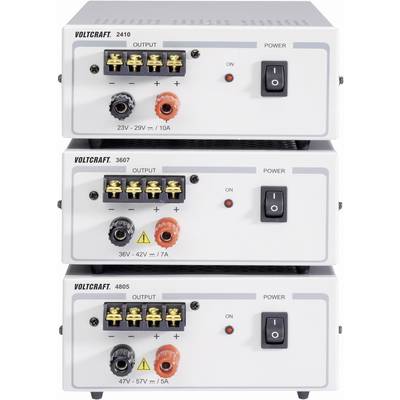

'Three stacked Voltcraft power supplies, models 2410, 3607 and 4805, with different output voltages and current ratings. Each device has switches and connections.'

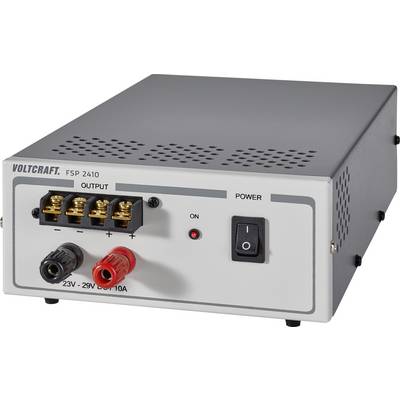

A grey direct current source with the label 'VOLTCRAFT FSP 2410'. It has connections for current output and an on/off switch.

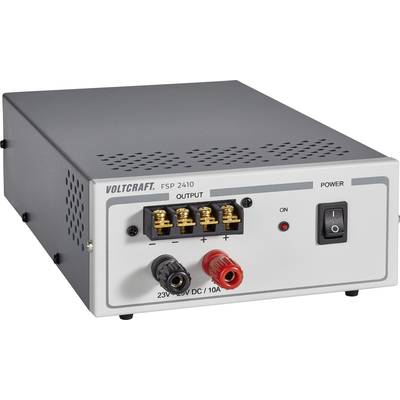

Power supply unit with switches and terminals, model 'VOLTCRAFT FSP 2410', delivers 23-30V DC at 10A.

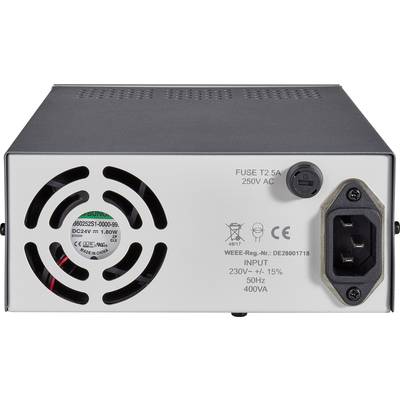

Rear view of a power supply unit with fan and power connection. Markings show fuse T2.5A, 230V AC, 50Hz, 400VA and other technical details.

1/5

Our service for you

Fast track dispatch on Thu, 6 Aug

17 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 134.45 / piece)

€ 134.45

plus VAT.

Report legal concerns

Highlights & Details

VOLTCRAFT FSP 2410 Bench PSU (fixed voltage) 24 - 29 V DC 10 A 240 W No. of outputs 1 x

240W max power
24 - 29Vdc output voltage
10A output current
3 year warranty

Technical specifications

Type: FSP 2410

Product type: Bench PSU (fixed voltage)

No. of outputs: 1 x

: 240 W

Technology: SMPSU

Dim: (W x H x D) 155 x 66 x 240 mm

: Manufacturer's standards (no certificate)

Weight: 2 kg

Connections: 4 mm sockets + screw terminals

Output voltage (max.): 29 V DC

Output voltage (min.): 24 V DC

Max. output current: 10 A

Output current (min.): 10 A

Type: Switch Mode

Width: 155 mm

Height: 66 mm

Depth: 240 mm

: 240 W

Output rating: 240 W

Output voltage: 24 - 29 V DC

Output current (details): 10 A

Input voltage: 230 V/AC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 512162 VOLTCRAFT FSP 2410 Bench PSU (fixed voltage) 24 - 29 V DC 10 A 240 W No. of outputs 1 x

Information

Information 512162 VOLTCRAFT FSP 2410 Bench PSU (fixed voltage) 24 - 29 V DC 10 A 240 W No. of outputs 1 x

Conformity certificate

Conformity certificate 512162 VOLTCRAFT FSP 2410 Bench PSU (fixed voltage) 24 - 29 V DC 10 A 240 W No. of outputs 1 x

Warranty Terms

Warranty Terms 512162 VOLTCRAFT FSP 2410 Bench PSU (fixed voltage) 24 - 29 V DC 10 A 240 W No. of outputs 1 x

Description

The Voltcraft FSP 2410 is a 240W fixed voltage switch mode power supply suitable for use in laboratories, workshops and industry. The FSP 2410 is highly efficient and produces 24 - 29Vdc and 10A with a current limiter. The output voltage can be adjusted via the potentiometer on the PSU's underside. Its steel plate enclosure makes the FSP 2410 suitable for use even in demanding industrial conditions."
