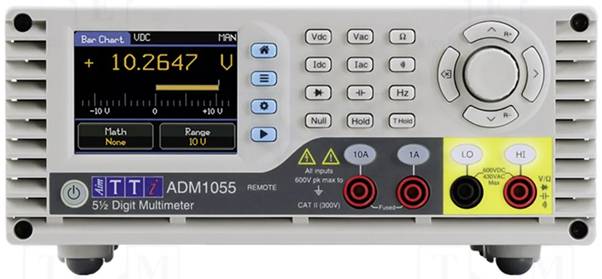

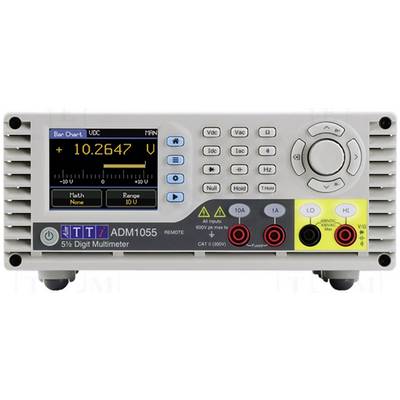

Aim TTi Digital Multimeter Precision tester, USB multimeter Digital CAT II 300 V Display (counts): 120.000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 802.52 / piece)
€
Only 2 Piece(s) available
Highlights & Details
Digital Multimeter
- 5½-digit high-performance desktop multimeter
- High accuracy and resolution 0.02%, 1 µV, 1 mΩ, 10 nA, 0.01 Hz, 100 pF
- Intuitive operation via touch-screen
- Displays bar charts, histograms, and statistics
- Illuminated connectors for a guided operation
- 9 measurement modes, including frequency and capacitance
- Advanced math functions
- Resettable current protective circuit (fuse)
- Compact aluminum casing with small footprint: 213 x 228 x 98 mm (WxTxH)
- Kensington lock connection (anti-theft device)
- USB-interface for remote control, SCPI-compatible
- Free "Test Bridge" control software
Technical specifications
- Voltage reading range DC (min.)
1 µV
- Product type
Precision tester
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
1 µV
- V AC reading range (max.)
430 V
- Amperage reading range DC (min.)
10 nA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
10 nA
- Amperage reading range AC (max.)
10 A
- Basic accuracy
0.02 %
- Measurement type (details)
True RMS
- Frequency range
10 Hz to 100 kHz
- Interfaces
USB 2.0
- Power supply (details)
110-240 V AC
- Height
98.2 mm
- Width
213.3 mm
- Length
227.6 mm
- Weight
1.3
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Voltage metering
AC/DC
AC
DC
- Current reading
AC
AC/DC
DC
- Type
Digital Multimeter
- Display
Digital
- Display (counts)
120.000
- Dim
(L x W x H) 227.6 x 213.3 x 98.2 mm
- Temperature reading range (max.)
40 °C
- Temperature reading range (min.)
5 °C
- Reading frequency
10 Hz to 100 kHz
Documents & Downloads
Datasheet
Datasheet 3734914 Aim TTi Digital Multimeter Precision tester, USB multimeter Digital CAT II 300 V Display (counts): 120.000
User & Safety Instructions
User & Safety Instructions 3734914 Aim TTi Digital Multimeter Precision tester, USB multimeter Digital CAT II 300 V Display (counts): 120.000
Description
The ADM1055 multimeters are the latest release from the new "A Series" by Aim-TTi, which was specially developed to meet the requirements of customers in the fields of design, testing and education.
