Akyga USB charger 65 W USB-C® PPS, Power Delivery 3.0, QC 4+, QC 3.0, Quick Charge 2.0, Adaptive Fast Charge White Inter
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.82
€ 20.18
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€ 21.00
plus VAT.
Akyga USB charger
Technical specifications
- Packaging: EcoBox
- Earthing: Without (II protection class)
- Product Colour: White
- Series: Universal
- Power supply voltage 100-240 V/50/60 Hz
- Power:65 W (USB-C) or (45 W + 20 W)
- Manufacturing material: ABS
- Power input < 0.5 A.
- Power supply line: CEE 7/16 (Europlug)
- OVP fuse: Yes
- OCP Backup: Yes
- OTP fuse: Yes
- SCP fuse: Yes
- MTBF: 100000 h
- Standard: Quick charge 4+/3.0, Power delivery 3.0, Samsung AFC, HUAWEI FCP, DCP, SCP, Apple 2.4A, PPS, GaN
- USB-C voltage supply: 2x USB-C: 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/3.25 A (2x Max. 65 W), PPS 5-20 V/3 A (60 W)
- Matching with DCP (Dedicated Charging Port): Yes
- Product type
USB charger
65 W
- Inputs
Europlug
- No. of outputs
2 x
- Outputs
USB-C®
- Output current (max.) - rounded
3.25 A
- Max. output current
3.25 A
- Max. output current per channel
3.25 A
- Type
AK-CH-32
- Suitable for
Smartphone
Notebook
MacBook
Android
iPhone
Tablet
- PSU features
Surge protection
USB Power Delivery (USB-PD)
Quick charger
GaN
- Dim
(L x W x H) 46 x 86 x 58 mm
- Height
58 mm
- Length
46 mm
- Width
86 mm
- Weight
100 g
- Factory colour
White
- Used at
Internal
- Charging method
PPS
Power Delivery 3.0
QC 4+
QC 3.0
Quick Charge 2.0
Adaptive Fast Charge
- Operating voltage
100 - 240 V / AC
- Max. temperature
50 °C
- Min. temperature
5 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3731368 Akyga USB charger 65 W USB-C® PPS, Power Delivery 3.0, QC 4+, QC 3.0, Quick Charge 2.0, Adaptive Fast Charge White Inter
User & Safety Instructions
User & Safety Instructions 3731368 Akyga USB charger 65 W USB-C® PPS, Power Delivery 3.0, QC 4+, QC 3.0, Quick Charge 2.0, Adaptive Fast Charge White Inter
Description

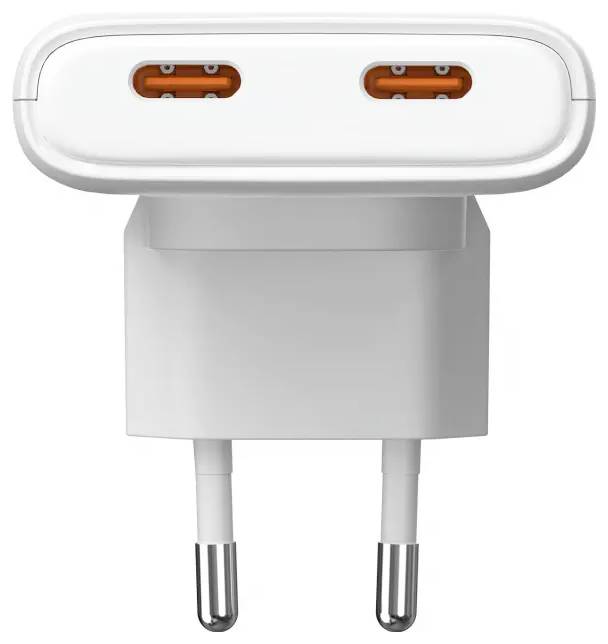

The Akyga® AK-CH-32 is a low-profile 65 W USB-C battery charger that combines high performance with a minimalist design. Thanks to its modern design, it can be fixed on the wall and thus can be mounted without any problem behind furniture, in narrow rooms or at places, where the classical chargers simply do not find any place. The charger AK-CH-32 quickly and securely manages to supply power to your laptop, your smartphone or tablet – and supports two devices at the same time.
Charging of two devices – 65 W without compromises

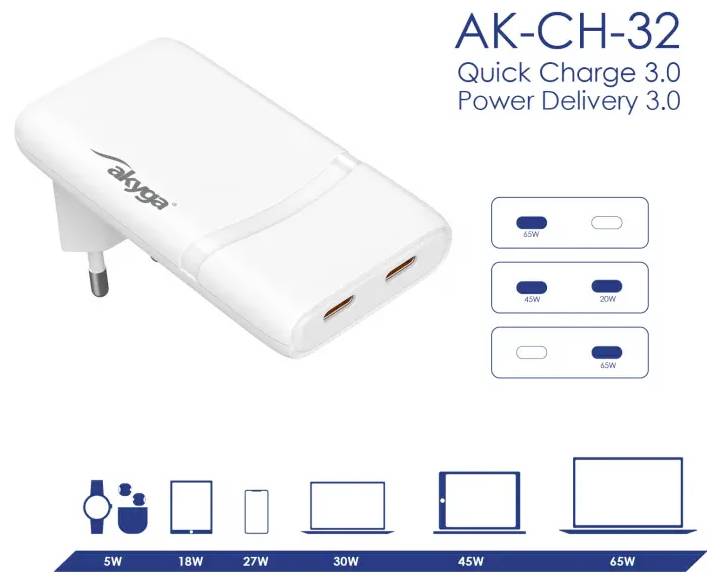

Each of the two USB-C ports supports Power delivery technology with a maximum power of 65 W (PD3.0), allowing you to charge MacBooks, Ultrabooks, smartphones and tablets, among other things. If two devices are charged at the same time, the charger intelligently splits the power into 45 W + 20 W, so that you can supply your laptop and your smartphone with power at the same time efficiently - without compromising on performance.
USB-C charger - compatible with any device
The USB-C charger AK-CH-32 supports all common quick charging protocols: Power delivery 3.0 and 2.0, PPS, Quick Charge 4+, QC 3.0 / 2.0, Apple 2.4 A, Samsung 5 V/2 A, DCP, AFC, FCP, SCP. This allows the charger to detect the device and automatically adjust the performance parameters whether you are using an iPhone, Samsung Galaxy S, HUAWEI Mate, tablet or laptop with USB-C.
GaN technology – compact size, higher efficiency
By using advanced GaN technology (gallium nitride) the AK-CH-32 achieves a higher energy efficiency with a significantly reduced size. The charger remains cooler, uses less energy and offers a longer life and improved safety - even during continuous operation. Through its slim, space-saving shape it fits perfectly in modern interiors, without compromising on appearance or functionality.
This text is machine translated.
Charging of two devices – 65 W without compromises
Each of the two USB-C ports supports Power delivery technology with a maximum power of 65 W (PD3.0), allowing you to charge MacBooks, Ultrabooks, smartphones and tablets, among other things. If two devices are charged at the same time, the charger intelligently splits the power into 45 W + 20 W, so that you can supply your laptop and your smartphone with power at the same time efficiently - without compromising on performance.
USB-C charger - compatible with any device
The USB-C charger AK-CH-32 supports all common quick charging protocols: Power delivery 3.0 and 2.0, PPS, Quick Charge 4+, QC 3.0 / 2.0, Apple 2.4 A, Samsung 5 V/2 A, DCP, AFC, FCP, SCP. This allows the charger to detect the device and automatically adjust the performance parameters whether you are using an iPhone, Samsung Galaxy S, HUAWEI Mate, tablet or laptop with USB-C.
GaN technology – compact size, higher efficiency
By using advanced GaN technology (gallium nitride) the AK-CH-32 achieves a higher energy efficiency with a significantly reduced size. The charger remains cooler, uses less energy and offers a longer life and improved safety - even during continuous operation. Through its slim, space-saving shape it fits perfectly in modern interiors, without compromising on appearance or functionality.
This text is machine translated.
