Buy ATEN CE680-AT-G HDMI™ Extension via FO cable 600 m

A black DVI Optical KVM Extender from ATEN with various connection options and indicator lights on the front panel.

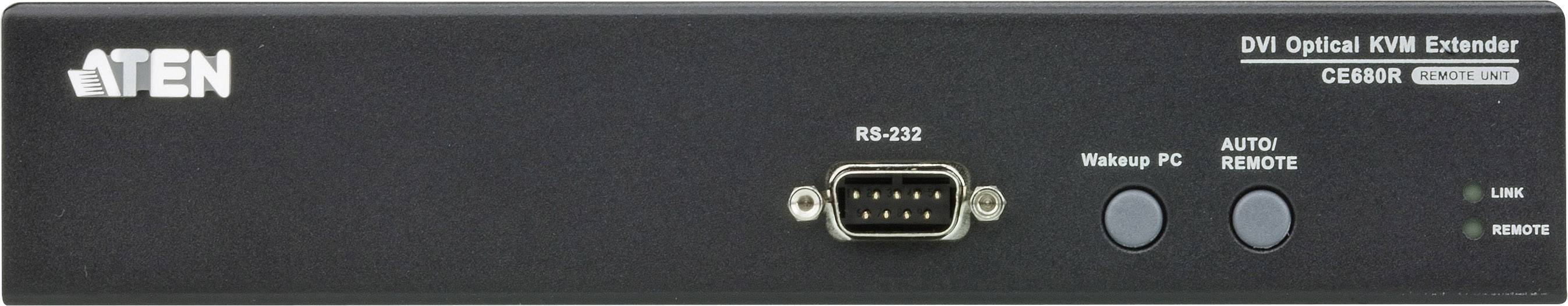

A ATEN DVI Optical KVM Extender with connections and buttons for RS-232, PC wake-up, automatic mode, and remote control.

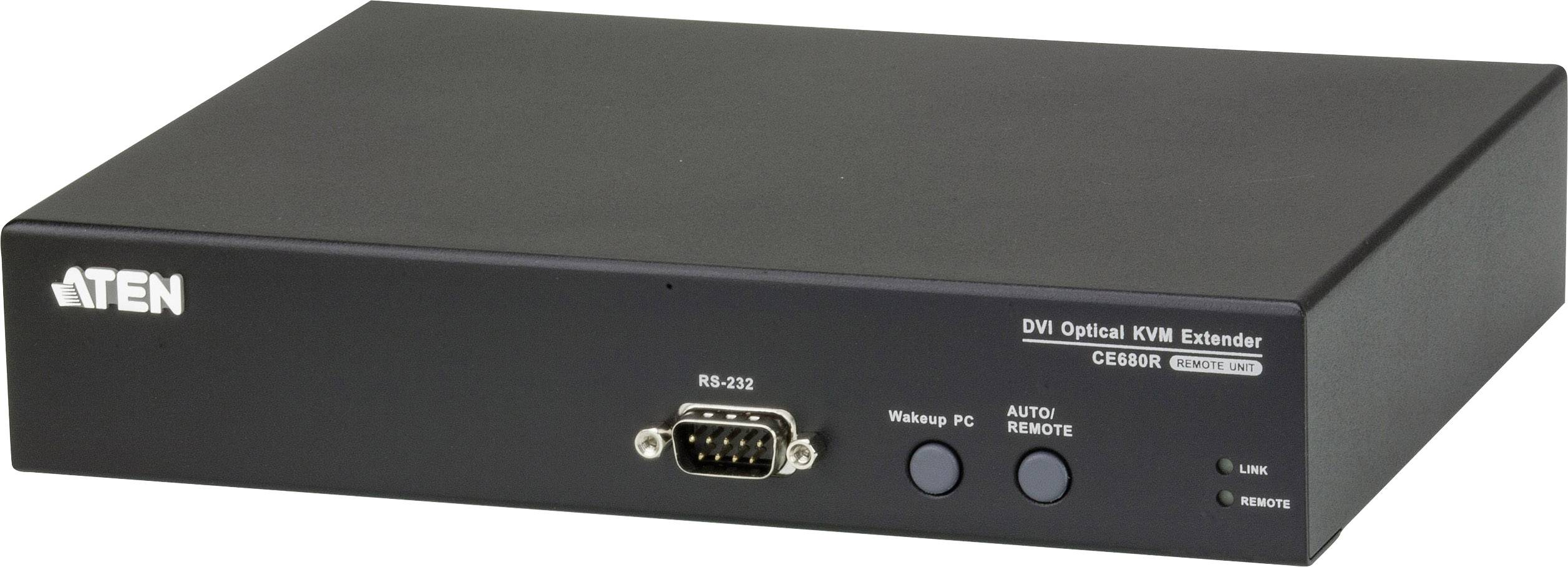

A black electronic device, described as 'ATEN DVI Optical KVM Extender CE680R', with an RS-232 port and switches for Webapp PC and Auto/Remote.

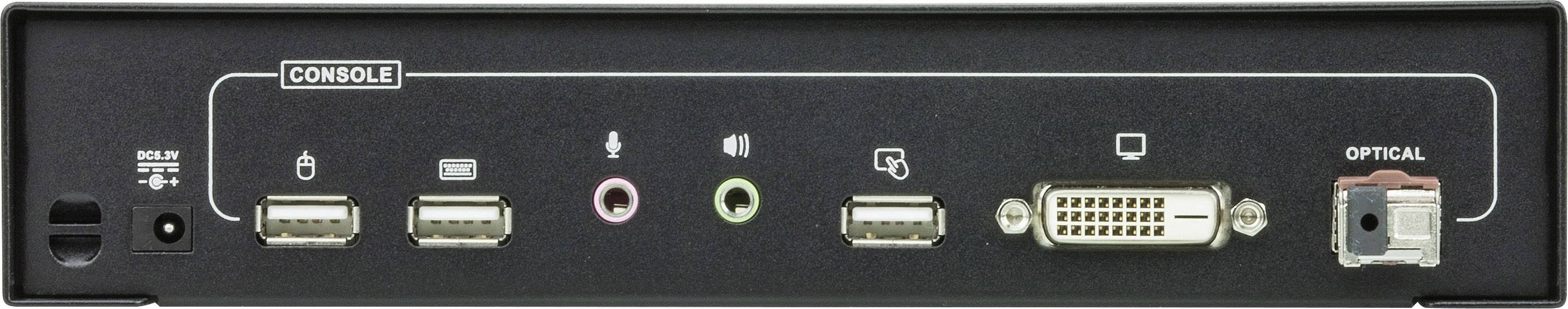

Rear view of a KVM switch with multiple ports: two USB, audio, microphone, DVI, network and optical connection, labelled as 'CONSOLE'.

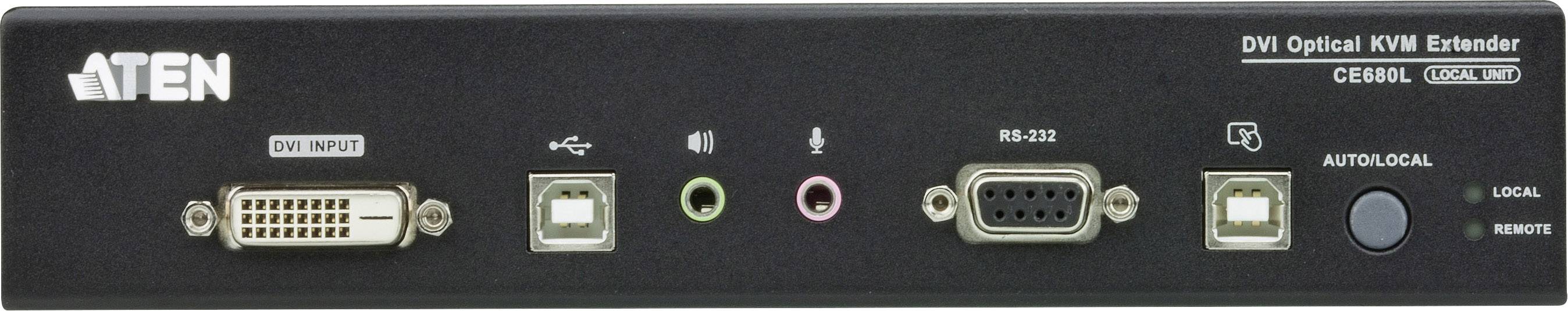

Rear view of a DVI Optical KVM Extender with connections for DVI input, USB, audio, RS-232 and a switch for 'Auto/Local/Remote'.

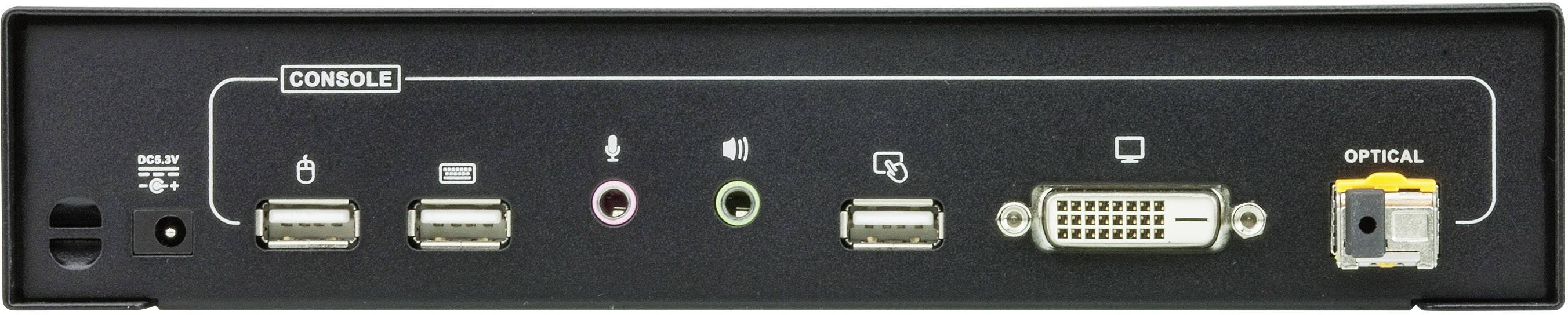

Back of a computer device with multiple connection types: USB, network, audio, digital video, and optical interfaces.

1/6

Datasheet (PDF)

Dispatches on Mon, 5 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,483.19 / piece)

€ 1,483.19

plus VAT.

Report legal concerns

ATEN CE680-AT-G HDMI™ Extension via FO cable 600 m

Highlights & Details

Provides access to a computer or a KVM installation from a local or remote console.
Supports the DVI-D interface, and enables the transmission of DVI single link image signals
Improved graphics quality up to 1920 x 1200 at 60 Hz (24 Bit)
Used for connection of the local and remote device glass fiber cable
Supports touch screen

Technical specifications

Product type: Extension

Transfer type: via FO cable

Interfaces (input): HDMI™

Interfaces (output): HDMI™

Resolution (max.): 1920 x 1200 p

Range (max.): 600 m

Factory colour: Black

Weight: 2200 g

Length: 41.8 mm

Width: 215 mm

Height: 163.3 mm

Dim: (L x W x H) 41.8 x 215 x 163.3 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1879635 ATEN CE680-AT-G HDMI™ Extension via FO cable 600 m

User & Safety Instructions

User & Safety Instructions 1879635 ATEN CE680-AT-G HDMI™ Extension via FO cable 600 m

Description

Aten CE 680. Keyboard Port Type: USB, Mouse Port Type: USB, Video port type: DVI-D. Product Color: black, Rack Capacity: 1 U, cable length 600 m. Power consumption (typical): 10.2 W. width: 162,9 mm, Depth: 215 mm, Height: 41.8 mm

This text is machine translated.

Features

Zweikonsolbetrieb - allows the operation of your system via the local and remote console (USB keyboard, mouse and monitor)
HDCP compatible
Supports touch screens - you can connect a touch-screen (supports devices up to 10 point multi-touch), and you can benefit from interactive user comfort (no additional driver necessary)
RS-232 serial interface connection for a serial terminal or serial devices, such as bar code scanner (baud rate up to 115200 bps)
PC Wakeup Support - simply press a button on the receiving device, in order to reactivate a local PC via RS-232
Sound transmission - supports stereo speakers and microphone
Rack mounting possible.
