B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 2291-004 0 bar up to 10 bar ISO 4400 square connector Analogue Pie
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pressure transducer
Connector
ISO 4400 square connector
Model
Absolute pressure
Pressure reading range (max.)
10 bar
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
Highlights & Details

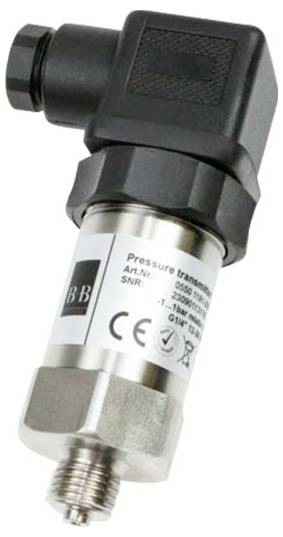

Pressure transmitter with DIN-Square connector
- High-quality stainless steel housing; very sturdy construction
Technical specifications
- Output signal, 4...20 mA, burst pressure, 30 bar, designation, Pressure transmitter stainless steel, pressure measuring mode, absolute pressure, operating temperature, -20...+80 °C, Electrical connection, 4-pin industrial plug, DIN 43650, EMC emission, EN 61000-6-3: 2011, EMC immunity, EN 61000-6-1: 2007, pressure measuring range, 0...10 bar, process connection, G1/4", residual error linearity/hysteresis, <±0.4% FS, protection class, IP65, power supply, 12...24 V AC/DC, temperature coefficient, TCO < ±0.015 % FS < /K; TCG ±0.010 % FS/K, material housing, stainless steel 1.4305, material, sensor: ceramic measuring cell
- Packaging type
Piece
- Product type
Pressure transducer
- Type
0550 2291-004
- Connector
ISO 4400 square connector
- Model
Absolute pressure
- Outputs
Current (analogue)
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Accuracy
0.4 %
- Pressure reading range (min.)
0 bar
- Pressure reading range (max.)
10 bar
- Pressure reading range
0 bar up to 10 bar
- Min. operating voltage
12 V DC
- Max. operating voltage
24 V DC
- Operating voltage
12 - 24 V DC
- Contact type
Analogue
- Burst load
30 bar
IP65
- Min. temperature
-20 °C
- Max. temperature
80 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3089537 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 2291-004 0 bar up to 10 bar ISO 4400 square connector Analogue Pie
User & Safety Instructions
User & Safety Instructions 3089537 B + B Thermo-Technik Pressure transducer 1 pc(s) 0550 2291-004 0 bar up to 10 bar ISO 4400 square connector Analogue Pie
Description
The pressure sensors with Hirschmann plug are Ideal for measuring static and dynamic absolute pressures in liquids or gases.
