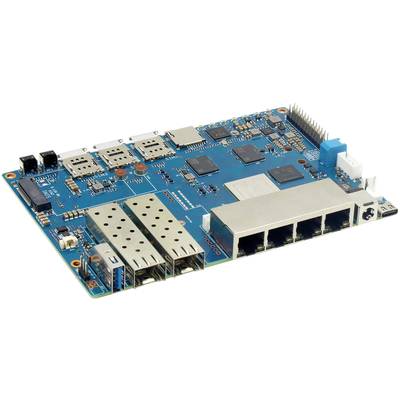

Banana PI Pi-R4 Router Board Banana Pi BPI-R4 4 GB 4 x 1.8 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Processor: MediaTek MT7988A (filogic 880) Quad-core ARM Corex-A73, 1.8 GHz
- MicroSD card memory, 128 MB SPI NAND, 8 GB eMMC
- GPIO: 26-PIN GPIO
- Network: 4 port 10/100/1000 Mbps Ethernet
- SFP 2x 10G
- Mini PCIe: 2x mini PCIe slots with PCIe 3.0 2Lane interface for BPI WiFi 7 NIC (network interface card)
- M.2: 1x M.2 Key-B slot with USB3.2/PCIe3.0 interface for 5G, 1x M2 Key-M slot with PCIe3.0 1lane interface for NVMe SSD
- USB 1x USB 3.2
- Buttons Reset Button, WPS Button, Boot Switch
- Power supply 12 V & 5.2 A or 19 V & 3.2 A.
- Type
Banana Pi BPI-R4
- Processor
ARM Cortex-A73
- Processor cores (No.)
4 x
4 GB
- Clock speed
1.8 GHz
- Memory type
DDR4
- Memory capacity
8 GB
- Internal ports
GPIO (26-pin)
- External ports
LAN (10/100/1000)
- Wi-Fi
upgradable
- Power supply (LOV)
mains-powered
- Output voltage
12 V
- Output current
5.2 A
- Length
100.50 mm
- Width
148 mm
- Product type
Routerboard computer
Documents & Downloads
Datasheet
Datasheet 3189584 Banana PI Pi-R4 Router Board Banana Pi BPI-R4 4 GB 4 x 1.8 GHz
User & Safety Instructions
User & Safety Instructions 3189584 Banana PI Pi-R4 Router Board Banana Pi BPI-R4 4 GB 4 x 1.8 GHz
Description
Discover the Banana PI BPI-R4!
Router board: A powerful platform for anyone looking for a reliable and versatile network solution. Equipped with a high-performance quad-core processor, this device offers excellent processing capacity for demanding network tasks. With extensive connection options such as Gigabit Ethernet ports and USB 3.2, the BPI-R4 Ideal is for a variety of applications - from high-speed Internet routers to advanced home automation gateways. The board supports the latest Wi-Fi 7 technology, which enables lightning-fast and reliable wireless connections. Thanks to its compact design, the BPI-R4 can be easily integrated and expanded, WAS making it the perfect choice for innovative projects and professional networking solutions. Take advantage of the versatility and performance of the Banana PI BPI-R4 to take your network projects to the next level.
This text is machine translated.
Router board: A powerful platform for anyone looking for a reliable and versatile network solution. Equipped with a high-performance quad-core processor, this device offers excellent processing capacity for demanding network tasks. With extensive connection options such as Gigabit Ethernet ports and USB 3.2, the BPI-R4 Ideal is for a variety of applications - from high-speed Internet routers to advanced home automation gateways. The board supports the latest Wi-Fi 7 technology, which enables lightning-fast and reliable wireless connections. Thanks to its compact design, the BPI-R4 can be easily integrated and expanded, WAS making it the perfect choice for innovative projects and professional networking solutions. Take advantage of the versatility and performance of the Banana PI BPI-R4 to take your network projects to the next level.
This text is machine translated.
Scope of delivery
- R4 board
