Beha Amprobe 2100-DELTA+ Two-pole voltage tester CAT III 1000 V, CAT IV 600 V
EAN:
Part number:
Item no:
56 Piece(s)
Sales and shipping:
Number
Total (€ 210.08 / piece)
€
Highlights & Details
Real effective voltage tester 2100-Delta with current measurement
- Two instruments in one:
- Voltage tester with current measurement up to 200 A AC
- A tool in the tool belt - and you can do many tasks do it
- True RMS measurements
- "Free-hand click system" for measuring tips Continue measuring range up to 1000 V AC / 1500 V DC
Technical specifications
- Power supply 3 V (2 x AA)
IP64
- Dim
(L x W x H) 37 x 63 x 210 mm
- Weight
470 g
- Height
210 mm
- Length
37 mm
- Width
63 mm
- Max. frequency
800 Hz
- Frequency range
1 Hz - 800 Hz
- V AC reading range
100 up to 1000 V
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Reading type
Resistance
Continuity
Phase
- Type
2100-DELTA+
- Min. frequency
1 Hz
- V AC reading range (max.)
1000 V
- V AC reading range (min.)
100 V
- Product type
Two-pole voltage tester
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2348078 Beha Amprobe 2100-DELTA+ Two-pole voltage tester CAT III 1000 V, CAT IV 600 V
Description
Beha-Amprobe completes the voltage tester series 2100 with the 2100-Delta. This robust voltage tester has numerous functions, including current measurement. With safety specifications according to the measurement categories CAT III 1000 V/CAT IV 600 V , it is the ideal product for fault-finding in industrial and commercial environments. You can capture measurements for voltage, current, resistance, continuity and frequency with a single device. The probes can be securely attached to the top of the unit housing when you check power to keep your hand free. With the 2100-Delta you can easily measure currents up to 200 A AC without interrupting the circuit by pushing the open clamp-on ammeter over the conductor. And of course, as with the 2100-Alpha, 2100-Beta and 2100-Gamma, the 2100-Delta is equipped with high-quality components for reliable operation. It has protection class IP 64, fulfills the requirements of the standard EN 61243-3:2014 and is GS tested.
Easy troubleshooting in electronics
The pliers with an opening of 13 mm allows a quick inspection of currents and loads during maintenance or troubleshooting of electrical devices.
Protective probe cover with storage of accessories
Keep the 4 mm probe tip extensions and GS38 protective caps here until they are needed. With the tip of the protective probe cover, the safety sockets used in Great Britain can be opened more easily.
This text is machine translated.
Easy troubleshooting in electronics
The pliers with an opening of 13 mm allows a quick inspection of currents and loads during maintenance or troubleshooting of electrical devices.
Protective probe cover with storage of accessories
Keep the 4 mm probe tip extensions and GS38 protective caps here until they are needed. With the tip of the protective probe cover, the safety sockets used in Great Britain can be opened more easily.
This text is machine translated.
Features
- Polarity detection in the entire range
- Current measurement 0.1 to 200.0 A AC(50/60 Hz) real effective
- Single pole Phase testing
- Continuity test (Rx) (visual and acoustic signal) < 500 kΩ
- Two-pole phase rotation display right/left
- Resistance measurement
- Frequency measurement 1 to 800 Hz
- Display of low resistance (L Rx) tone + display < 20 Ω
- Diode test
- Data Hold feature
- IP 64 protection (dust-proof and protected against all-round splash water)
- Backlight
- Flashlight/illumination of the measuring point
- Reinforced insulated test lead
- 4-mm probe tip extensions
- (Screw-on) and protective caps GS38
- Holster

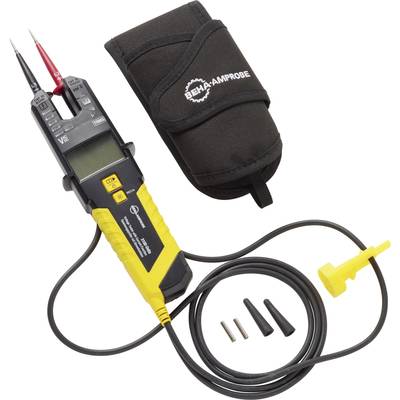

Scope of delivery
- 1x Voltage tester 2100-Delta with current measurement function
- 1x Holster
- 2x protective caps GS 38
- 2x 4 mm Ø probe extension (screw-in)
- 2x 1.5 V alkaline batteries, IEC LR03 (installed)
- 1x user manual.
