1/4
Benning 044162 MA 4 Measurement adapter 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 1,289.92 / piece)
€ 1,289.92
plus VAT.
Highlights & Details

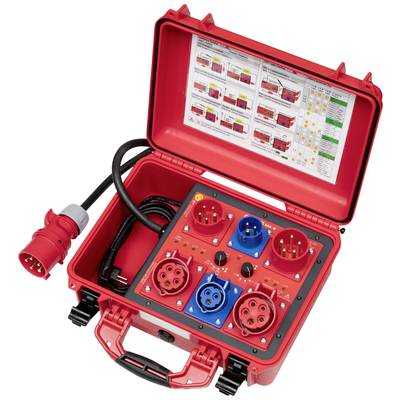

Measurement adapter Benning MA 4
- Active/passive test for 1+3-phase devices, also for welding devices
- For complete DGUV regulation 3 tests in combination with device testers
- Load capacity up to 32 A.
Technical specifications
- Product type
Measurement adapter
- Compatible with
Benning
- Weight
4200 g
- Compatible with
Benning ST 720
Benning ST 725
Benning ST 750
Benning ST 750A
Benning ST 755
Benning ST 760
- Width
410 mm
- Height
170 mm
- Depth
350 mm
- Type
MA 4
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2239529 Benning 044162 MA 4 Measurement adapter 1 pc(s)
Description
Adapter case for the active and passive testing of 1- and 3-phase CEE-accessories and CEE-extension lines in combination with device testers.
The measuring adapter makes it easier for you to check devices which change in location. Its rugged design is particularly suitable for use in industrial environments. Its simple handling allows the user to work quickly and rationally with the measuring adapter. You can test devices and extension cables that have the following IEC 60309-1-compliant connectors.
CEE-plug:
16 a, 50 Hz – 60 Hz, 230 V, L+N+PE, 6 h
16 a, 50 Hz – 60 Hz, 380 V – 415 V, 3L+N+PE, 6h
32 a, 50 Hz – 60 Hz, 380 V – 415 V, 3L+N+PE; 6h
Connect the measuring adapter to a device tester for testing devices that change locally according to DIN EN 50678 (VDE 0701), DIN EN 50699 (VDE 0702) or DIN EN 62353 (VDE 0751-1) or DIN EN 60974-4 (VDE 0544-4).
The device tester must have a socket with earthing contact for connecting the measuring adapter. Depending on the type of test, a CEE 16A or 32A socket may also be available. An adapter cable is required for the CEE 16A.
The measuring adaptor is suitable for connection to the device testers:
Benning ST 725
Benning St 750 / 750A / 755 / 755+ / 760 / 760+
Other devices that can actively connect 230 V mains voltage
This text is machine translated.
The measuring adapter makes it easier for you to check devices which change in location. Its rugged design is particularly suitable for use in industrial environments. Its simple handling allows the user to work quickly and rationally with the measuring adapter. You can test devices and extension cables that have the following IEC 60309-1-compliant connectors.
CEE-plug:
16 a, 50 Hz – 60 Hz, 230 V, L+N+PE, 6 h
16 a, 50 Hz – 60 Hz, 380 V – 415 V, 3L+N+PE, 6h
32 a, 50 Hz – 60 Hz, 380 V – 415 V, 3L+N+PE; 6h
Connect the measuring adapter to a device tester for testing devices that change locally according to DIN EN 50678 (VDE 0701), DIN EN 50699 (VDE 0702) or DIN EN 62353 (VDE 0751-1) or DIN EN 60974-4 (VDE 0544-4).
The device tester must have a socket with earthing contact for connecting the measuring adapter. Depending on the type of test, a CEE 16A or 32A socket may also be available. An adapter cable is required for the CEE 16A.
The measuring adaptor is suitable for connection to the device testers:
Benning ST 725
Benning St 750 / 750A / 755 / 755+ / 760 / 760+
Other devices that can actively connect 230 V mains voltage
This text is machine translated.
Hints
Can also be used for non-manufacturer devices.
