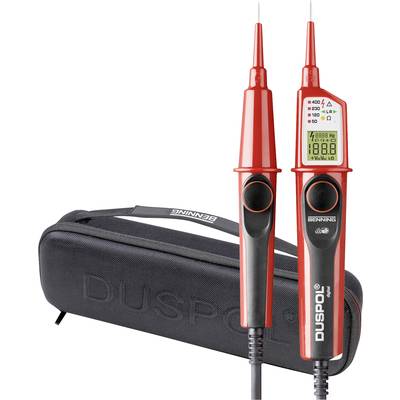

Benning DUSPOL digital SET Phase and EMF tester
EAN:
Part number:
Item no:
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
Highlights & Details
Voltage tester set DUSPOL digital SET
- Voltage of 1 - 1000 V AC TRMS/ 1200 V DC
- Real-effective value procedure TRUE RMS
- Acoustic and optical continuity test
- Resistance up to 300 kΩ
- Frequency of 1 - 1000 Hz
- Diode test up to 2 V.
- Rotating field direction, phase, polarity test
- Cable break detector
- VDE rating:
- CAT IV 600V
- With 6 bits. Premium bag (hard case)
Technical specifications
- Product type
Phase and EMF tester
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 330 x 105 x 65 mm
- Weight
0.6600 kg
- Width
105 mm
- Height
65 mm
- Length
330 mm
- Type
DUSPOL digital SET
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2299190 Benning DUSPOL digital SET Phase and EMF tester
Description
Suitable for electrical engineering, industry, maintenance, service (troubleshooting), photovoltaic/wind power plants and hybrid vehicle technology.
Background lighting of the LC display.
Non-contact voltage detection, yellow LED flashing. Direct display without pushbutton actuation, high-resistance test. Load connection via pushbutton, low-resistance test. Deliberate triggering of the RCD/FI protective switch. Vibration alarm in the test handle. Measurement point illumination Load can be switched on. Protection class IP 65 dust-proof, splash-water protected. Robust housing design with rubberized grip area. Tested and approved according to DIN EN 61243-3, VDE 0682-401:2015. Measurement category cat IV 600 V, cat III 1000 V. length 260 mm. Power supply with and without battery. Practical hard case bag with carrying handle, reverse travel lock (outside), padded net pocket with zipper, flexible attachment loops with Velcro fastener. High protection despite low weight. Dimensions length 330 mm x width 105 mm x depth 65 mm.
This text is machine translated.
Background lighting of the LC display.
Non-contact voltage detection, yellow LED flashing. Direct display without pushbutton actuation, high-resistance test. Load connection via pushbutton, low-resistance test. Deliberate triggering of the RCD/FI protective switch. Vibration alarm in the test handle. Measurement point illumination Load can be switched on. Protection class IP 65 dust-proof, splash-water protected. Robust housing design with rubberized grip area. Tested and approved according to DIN EN 61243-3, VDE 0682-401:2015. Measurement category cat IV 600 V, cat III 1000 V. length 260 mm. Power supply with and without battery. Practical hard case bag with carrying handle, reverse travel lock (outside), padded net pocket with zipper, flexible attachment loops with Velcro fastener. High protection despite low weight. Dimensions length 330 mm x width 105 mm x depth 65 mm.
This text is machine translated.
Scope of delivery
- Incl. DUSPOL digital with 2 x 1.5 V Micro/ AAA/ LR03 battery, probe tip protection, hard case
