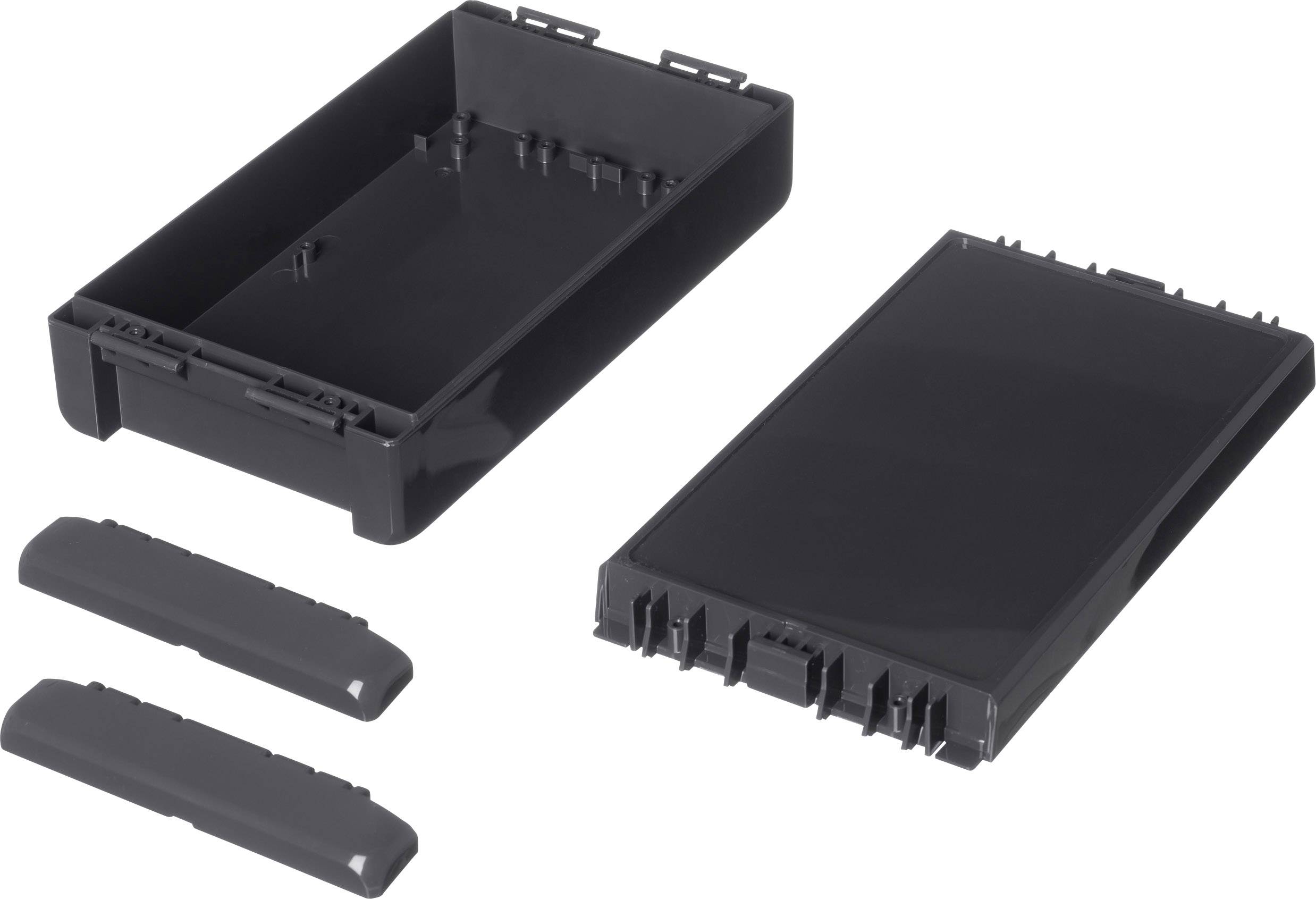

Bopla Bocube B 221306 PC-V0-7024 96015224 Outdoor casing 125 x 231 x 60 Polycarbonate V0 Graphite grey (RAL 7024) 1 pc(s
EAN:
Part number:
Item no:
Product type
Outdoor casing
Material
Polycarbonate V0
IP rating
IP66
IP68
Width
231 mm
Height
60 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.21
€ 26.51
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
Highlights & Details
Installation housing Bocube
- Installation without any tools
Our service for you
Technical specifications
- Temperature resistance: 25°C to 100°C.
- Product type
Outdoor casing
- Material
Polycarbonate V0
IP66
IP68
- Factory colour
Graphite grey (RAL 7024)
- Length
125 mm
- Width
231 mm
- Height
60 mm
- Inside width
118.4 mm
- Inside height
52 mm
- Internal depth
194.4 mm
- Content
1 pc(s)
- Dim
(L x W x H) 125 x 231 x 60 mm
- RoHS-compliant
Yes
- Type
Bocube B 221306 PC-V0-7024
Documents & Downloads
Datasheet
Datasheet 706885 Bopla Bocube B 221306 PC-V0-7024 96015224 Outdoor casing 125 x 231 x 60 Polycarbonate V0 Graphite grey (RAL 7024) 1 pc(s
User & Safety Instructions
User & Safety Instructions 706885 Bopla Bocube B 221306 PC-V0-7024 96015224 Outdoor casing 125 x 231 x 60 Polycarbonate V0 Graphite grey (RAL 7024) 1 pc(s
Download
Download 706885 Bopla Bocube B 221306 PC-V0-7024 96015224 Outdoor casing 125 x 231 x 60 Polycarbonate V0 Graphite grey (RAL 7024) 1 pc(s
Download 706885 Bopla Bocube B 221306 PC-V0-7024 96015224 Outdoor casing 125 x 231 x 60 Polycarbonate V0 Graphite grey (RAL 7024) 1 pc(s
Description
New, innovative and elegant housing system, which the user through different features many advantages during installation and handling.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Upper and lower sections
- Hinge locks.
