Buy Bopla Element E 445 05445000 Electronics casing 150 x 80 x 80 Polystyrene Grey-white (RAL 7035), Graphite grey (RAL 7024

A grey, rectangular block with a dark base, suspended against a white background.

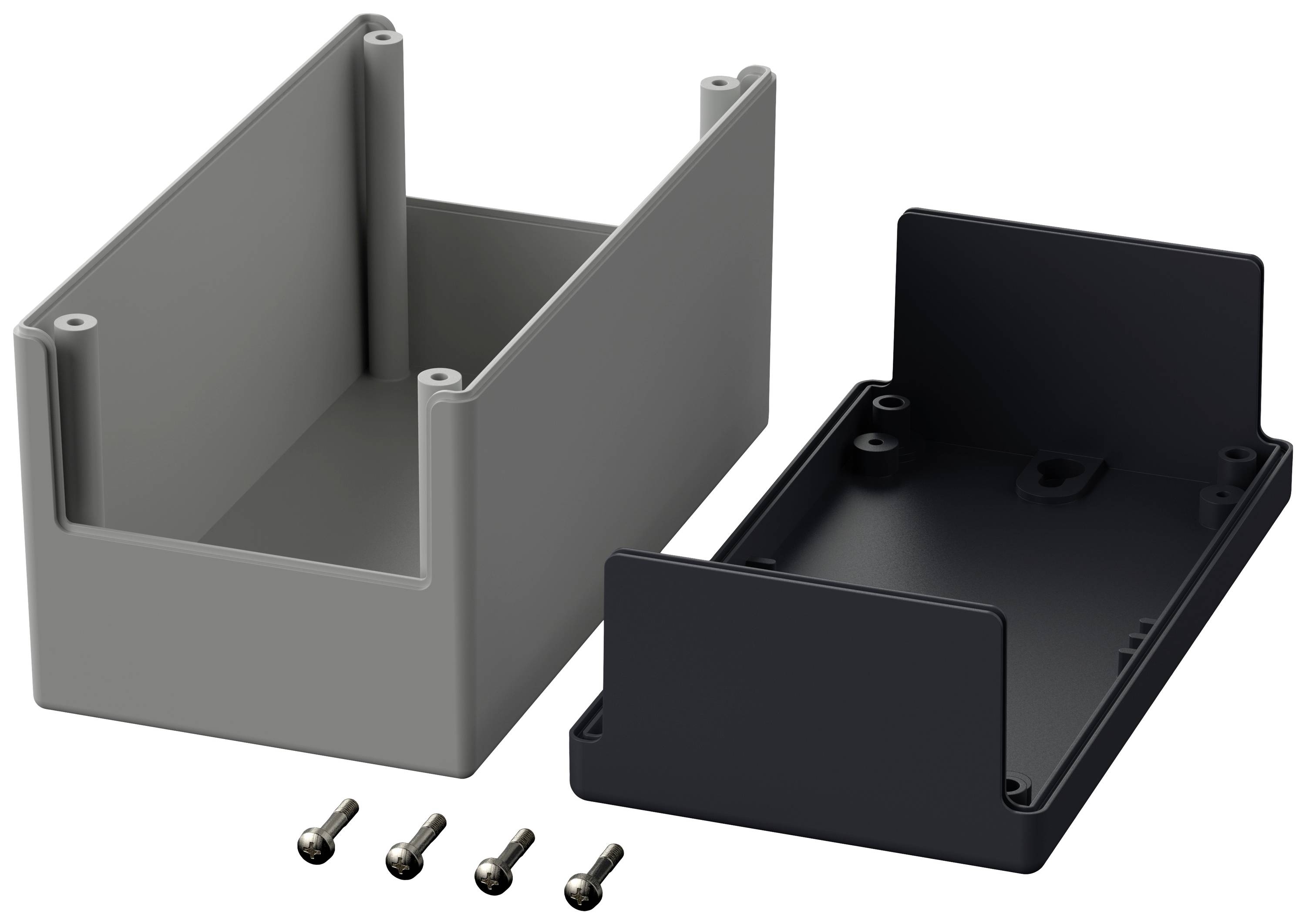

Grey housing case with a removable black cover, accompanied by four mounting screws.

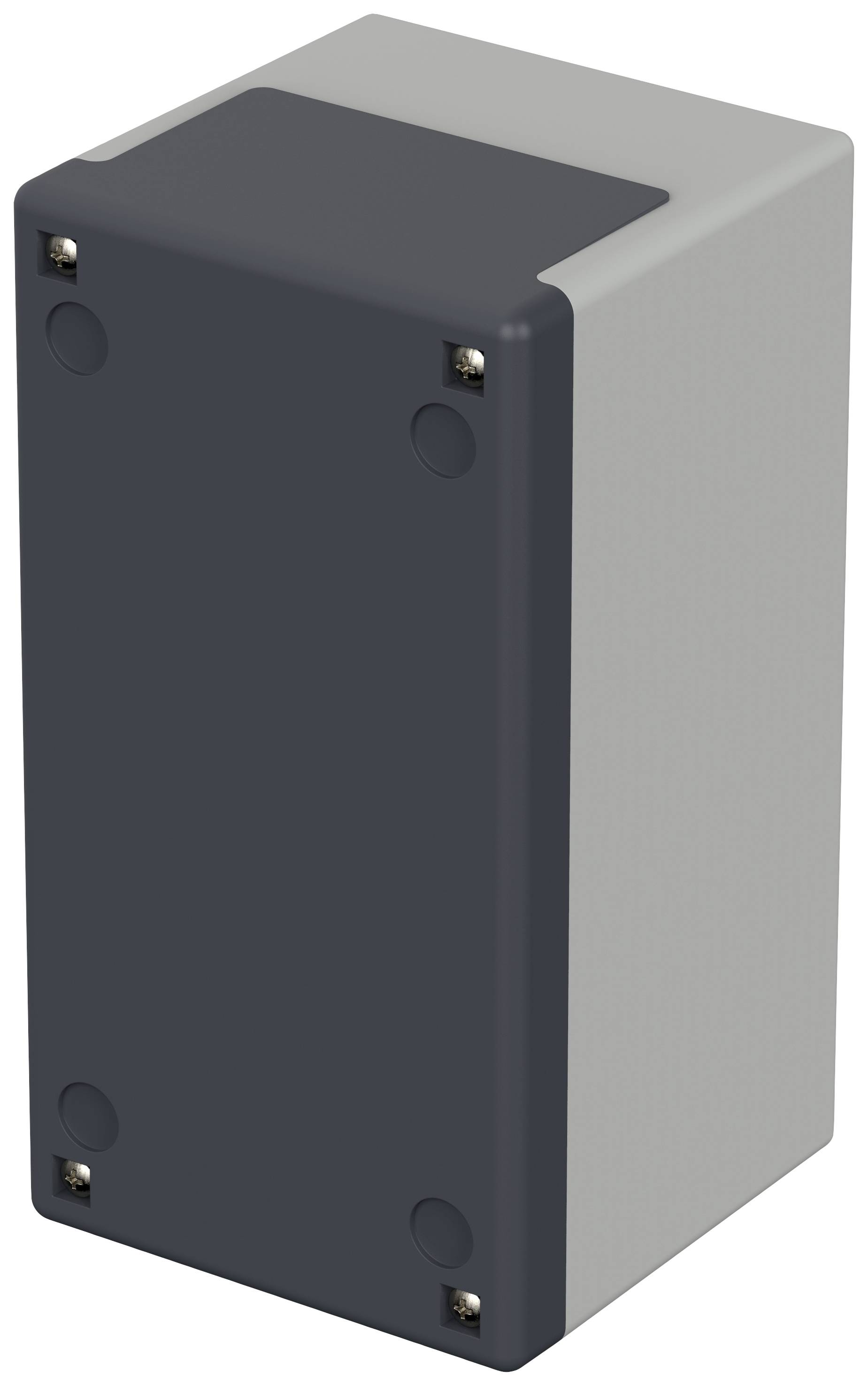

Rectangular grey enclosure with a dark front panel, mounted with four visible screws at the corners.

1/3

Product type

Electronics casing

Material

Polystyrene

IP rating

IP40

Width

80 mm

Height

80 mm

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

34 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 21.00 / piece)

€ 21.00

plus VAT.

Report legal concerns

Technical specifications

Temperature resistance --10°C to +65°C.

Product type: Electronics casing

Material: Polystyrene

: IP40

Factory colour: Grey-white (RAL 7035)
Graphite grey (RAL 7024)

Length: 150 mm

Width: 80 mm

Height: 80 mm

Inside width: 74 mm

Inside height: 74 mm

Internal depth: 144 mm

Content: 1 pc(s)

Dim: (L x W x H) 150 x 80 x 80 mm

Type: Element E 445

Wireless charging: Yes

Documents & Downloads

Datasheet

Datasheet 2995323 Bopla Element E 445 05445000 Electronics casing 150 x 80 x 80 Polystyrene Grey-white (RAL 7035), Graphite grey (RAL 7024

Download

Download 2995323 Bopla Element E 445 05445000 Electronics casing 150 x 80 x 80 Polystyrene Grey-white (RAL 7035), Graphite grey (RAL 7024

Description

Features

The cover can be removed using the molded front panel on the lower part without having to disassemble the electronics
By the screw connection from below no disturbing screws are visible in the application
Temperature resistance: -10°C to 65°C.
