Pepperl+Fuchs Proximity sensor Capacitive CBN5-F46-E2 051974 50 x 20 mm non-shielded PNP
EAN:
Part number:
Item no:
Product type
Proximity sensor
Max. operating voltage
30 V DC
Contact type
1 maker
Switching distance (max.)
5 mm
Outputs
PNP
Datasheet (PDF)
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
Technical specifications
- Product type
Proximity sensor
- Type
CBN5-F46-E2
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 maker
- Switching distance (max.)
5 mm
- Outputs
PNP
- Model
Capacitive
- Installation type
non-shielded
- Size

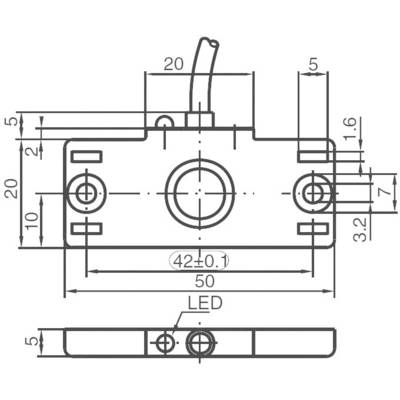

50 x 20 mm
- Connector
Cable, open end
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Output
Switching output PNP controller
- Type
flat design
- Type
CBN5-F46-E2
- Connection
PVC fixed cable 2 m
- Operating voltage
10 - 30 V DC
Documents & Downloads
Datasheet
Datasheet 156463 Pepperl+Fuchs Proximity sensor Capacitive CBN5-F46-E2 051974 50 x 20 mm non-shielded PNP
