Buy Pepperl+Fuchs Proximity sensor Ultrasound 80 x 80 mm Current (analogue) UB2000-F42-I-V15 Piece

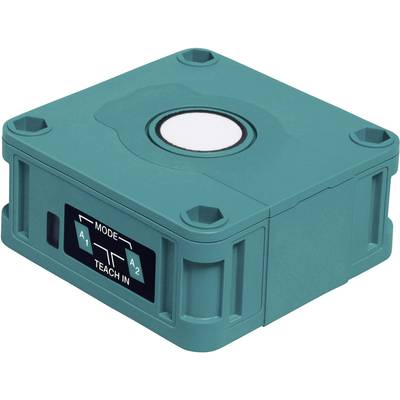

A rectangular, turquoise sensor device with a round white area on top and a mode indicator on the front.

Packaging type

Piece

Product type

Proximity sensor

Max. operating voltage

30 V DC

Outputs

Current (analogue)

Switching distance (max.)

2000 mm

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 343.70 / piece)

€ 343.70

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

Pepperl+Fuchs Proximity sensor Ultrasound 80 x 80 mm Current (analogue) UB2000-F42-I-V15 Piece

Extremely long switching distances
Not affected by unfavourable environmental conditions

Technical specifications

Very small blind zone
Teach-in input
Temperature compensation
Synchronisation options

Packaging type: Piece

Product type: Proximity sensor

Type: UB2000-F42-I-V15

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Outputs: Current (analogue)

Switching distance (max.): 2000 mm

Model: Ultrasound

Features: LED indicator

Connector: M12 (5-pin)

Size: 80 x 80 mm

Contact type: Analogue

: IP54

Length: 80 mm

Width: 80 mm

Height: 80 mm

Dim: (L x W x H) 80 x 80 x 80 mm

Depth: 34 mm

Output: Analogue output 4 - 20 mA

Type: UB2000-F42-I-V15

Connection: M12, 5-pin

Operating voltage: 10 - 30 V DC

Documents & Downloads

Datasheet

Datasheet 156162 Pepperl+Fuchs Proximity sensor Ultrasound 80 x 80 mm Current (analogue) UB2000-F42-I-V15 Piece

User & Safety Instructions

User & Safety Instructions 156162 Pepperl+Fuchs Proximity sensor Ultrasound 80 x 80 mm Current (analogue) UB2000-F42-I-V15 Piece

Description

In all areas of industry in which sensors are affected by harsh environmental influences such as dust, dirt, smoke or steam, ultrasonic sensors are the ideal solution for contactless position and distance measurement. They can be installed in the smallest spaces and configured by "Teach-In". Objects in a wide range of materials (including transparent) can be detected with millimetre precision, regardless of their shape and colour.
