VOLTCRAFT MSS-120 Magnetic test tip 4 mm socket;CAT III 1000 V, CAT IV 600 V;Black;1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
Highlights & Details

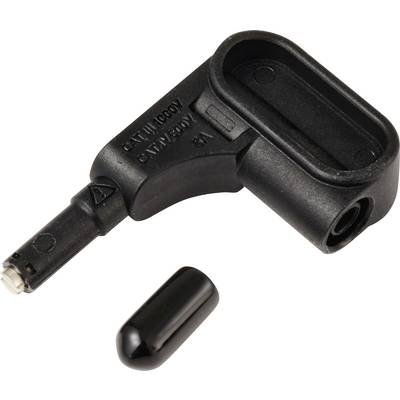

VOLTCRAFT MSS-120 Magnetic test probe CAT IV 1000V 2A
- CAT III 1000 V, CAT IV 600 V
- Nominal current 5 A
- Socket Ø 4 mm
- Magnetic adapter for 4 mm banana socket
- Black
Technical specifications
- magnetic probe tip
- Product type
Safety test probe
- Connection
4 mm socket
- Nominal voltage
1000 V
- Factory colour
Black
- Reading category
CAT III 1000 V
CAT IV 600 V
- Jack diameter
4 mm
- Length
54 mm
- Tip diameter
5.8 mm
- Tip material
copper
- Nominal current
5 A
- Nominal current - rounded value
5 A
- Width
14 mm
- Height
31 mm
- Plug features
Angled
- Temperature range
5 ~ 45 °C
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3431128 VOLTCRAFT MSS-120 Magnetic test tip 4 mm socket;CAT III 1000 V, CAT IV 600 V;Black;1 pc(s)
User & Safety Instructions
User & Safety Instructions 3431128 VOLTCRAFT MSS-120 Magnetic test tip 4 mm socket;CAT III 1000 V, CAT IV 600 V;Black;1 pc(s)
Warranty Terms
Warranty Terms 3431128 VOLTCRAFT MSS-120 Magnetic test tip 4 mm socket;CAT III 1000 V, CAT IV 600 V;Black;1 pc(s)
Description
These magnetic measuring tips have been specially developed for use on electrical control panels. They allow fast, secure attachment to screw heads in terminal blocks, which reduces connection time and increases safety. They are suitable well for voltage tests with 4 mm safety measurement leads and are Ideal for technicians, who need to measure quickly and precisely.
It provides protection in accordance with CAT III 1000 V and CAT IV 600 V in the field of electrical engineering for testing tasks at switch cabinets, circuit breakers, ground fault circuit breakers and devices with screw heads in connection blocks.
