Buy Brennenstuhl 1506706 Timer/power strip digital 7 day mode IP44 Programmable ON/OFF settings , Daylight savings control,

Wall-mounted programmable outdoor timer with digital display and buttons, showing '15:41' on the screen.

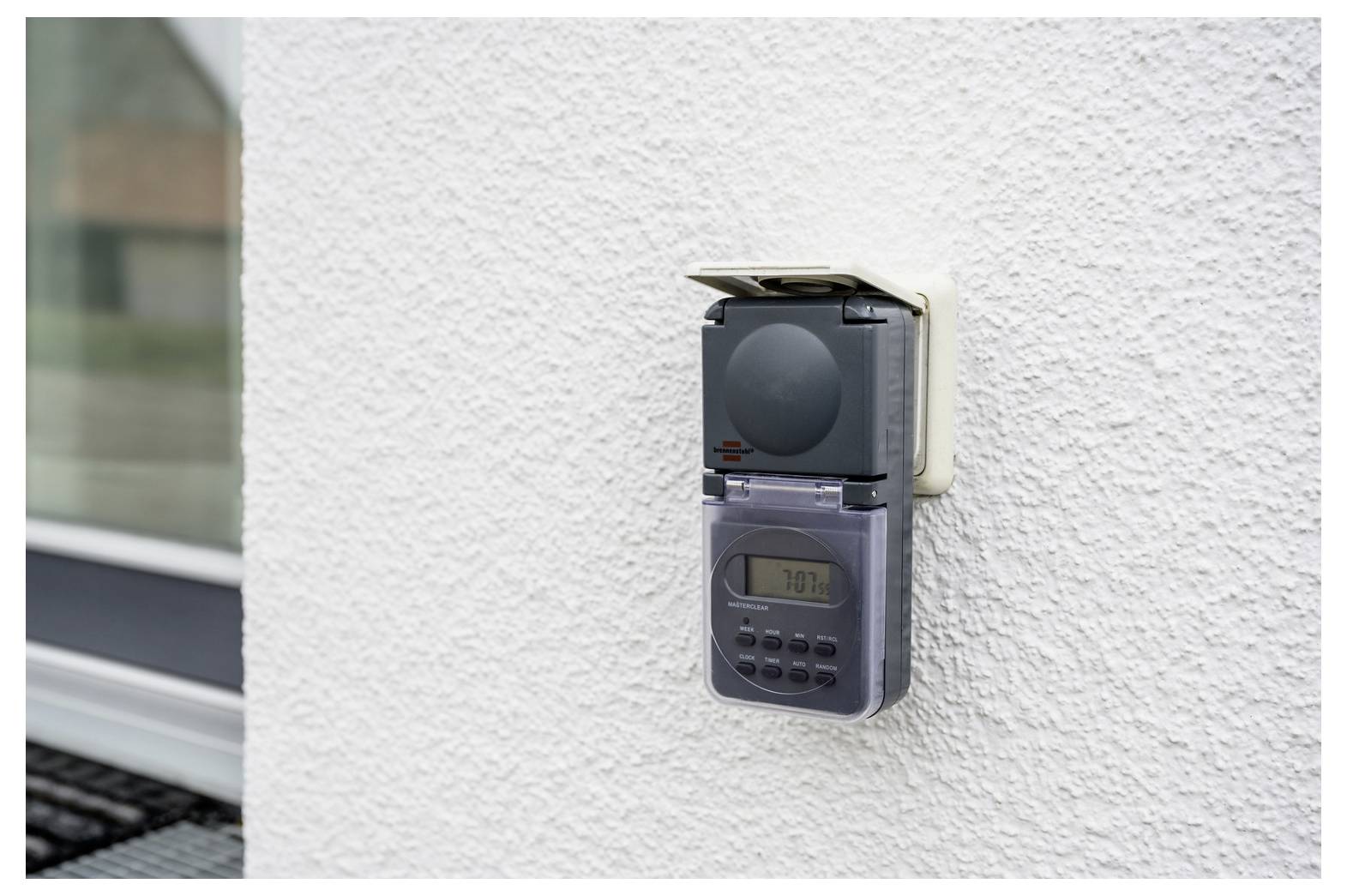

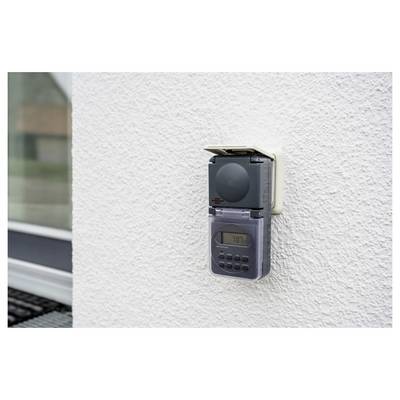

Wall-mounted digital timer or outlet controller on a white textured exterior wall, with a small display and buttons beneath a protective cover.

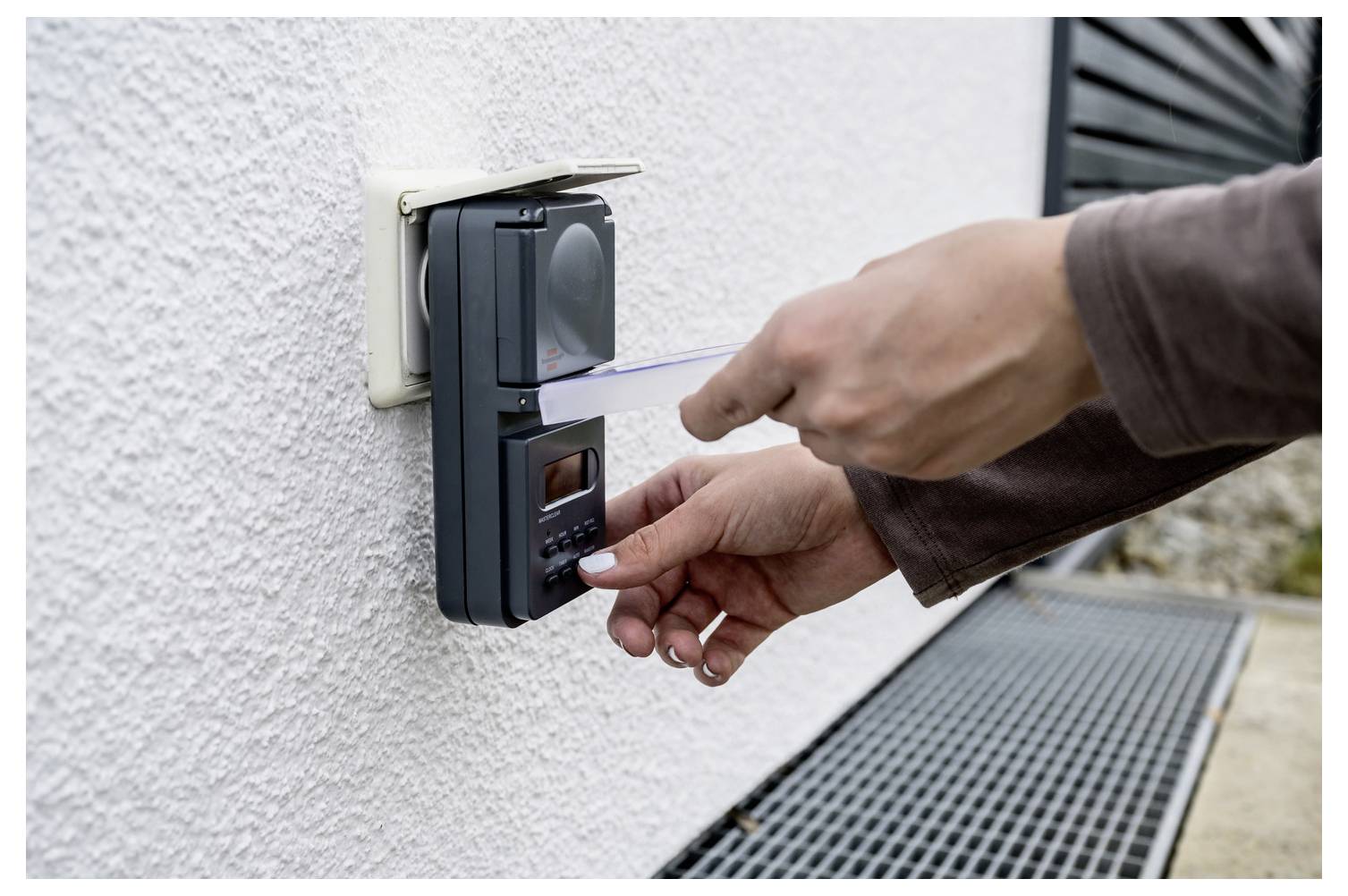

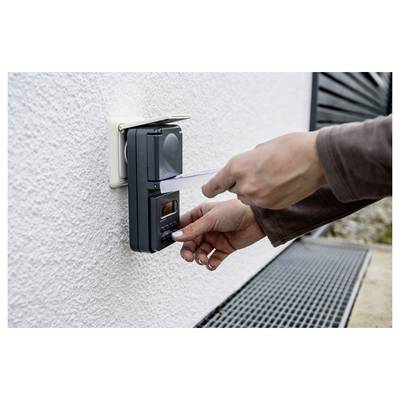

Person swipes a card at an exterior wall-mounted access control keypad to unlock a door or gate.<br>

1/3

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

47 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 11.76 / piece)

€ 11.76

plus VAT.

Report legal concerns

Highlights & Details

Digital weekly timer IP44 anthracite

Digital time switch with LCD display, random switching for holiday time and increased touch protection, GS -tested
The minimum switching distance of the weekday timer switch is 1 minute
Including 10 on/off programs with weekday, hour and minute settings
With data storage in case of power failure and manual on, off function

Technical specifications

Product type: Timer/power strip

Type: digital

Features: Programmable ON/OFF settings
Daylight savings control
RND mode

Switching cycle: 7 day mode

Used at: Outdoors
Indoors

: IP44

No. of SPCs: 10

Operating voltage: 230 V AC

Switching current (max.): 16 A

Factory colour: Anthracite

Shortest switching time: 1 min

Summer/winter time: manual

Width: 75 mm

Height: 195 mm

Depth: 95 mm

Dim: (L x W x H) 7.0000 cm x 75 mm x 195 mm

Use: Lighting and appliance control

Length: 7.0000 cm

Weight: 0.287 kg

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1763489 Brennenstuhl 1506706 Timer/power strip digital 7 day mode IP44 Programmable ON/OFF settings , Daylight savings control,

User & Safety Instructions

User & Safety Instructions 1763489 Brennenstuhl 1506706 Timer/power strip digital 7 day mode IP44 Programmable ON/OFF settings , Daylight savings control,

Conformity certificate

Conformity certificate 1763489 Brennenstuhl 1506706 Timer/power strip digital 7 day mode IP44 Programmable ON/OFF settings , Daylight savings control,

Description

The Brennenstuhl digital weekly timer switch in anthracite color impresses with its quality and safety in all areas.

- LCD display for weekdays, hours in 12 and 24 hour format, minutes and seconds, as well as for operating mode
- 10 on/off programs with weekday, hour and minute settings
- for outdoor use
- practical housing design. With switch socket combinations, the light switch is not covered by the timer housing
- Suspend of running programs possible
- Data storage in case of power failure
- including NiMH rechargeable battery
- Socket with increased touch protection
- nominal voltage 230 V.
- Nominal current 16 A.

This text is machine translated.
