Buy Brennenstuhl CEE power distributor 1153750 1153750 400 V 16 A

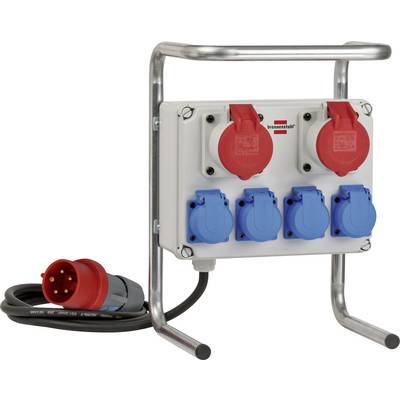

Portable industrial power distribution box with multiple red and blue covered outlets, attached power cable and plug on a metal stand.

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

32 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 73.94 / piece)

€ 73.94

plus VAT.

Report legal concerns

Highlights & Details

Compact 16A small power distribution BKV 2/4 G IP44

Power station 16 A with sturdy, impact-resistant plastic housing and robust, zinc-plated tubular steel frame for stability, ideal for rugged use on construction sites
Power distributor with 2 CEE-sockets, 4 protective contact sockets (protective contact sockets on all 3 phases distributed) and a connection socket
Current distributor 16 A with practical winding device for storage of the cable
Power supply distributors is thanks to olbestandigem rubber cable for regular use outdoors.

Technical specifications

Product type: CEE power distributor

No. of CEE connectors: 2

Type A: CEE plug (5-pin, 16 A)

Type B: CEE connector (5-pin, 16 A)
PG connector

No. of PG sockets: 4

Inputs: CEE-plug 400V/16 A 5-pin

Outputs: 2 x CEE-coupling 400 V/16 A 5-pin · 4x protective contact coupling 230V/16A

Nominal input voltage: 400 V

Nominal output voltage: 400 V

Nominal input current: 16 A

: IP44

Cable length: 2.00 m

Cable standard: H07RN-F 5G 1,5 mm²

Factory colour: Grey
Black
Red
Blue

Weight: 2.68 kg

Dim: (W x H x D) 295 x 365 x 200 mm

Width: 295 mm

Height: 365 mm

Inputs (CEE power distributor): CEE plug (5-pin, 16 A)

Outputs (CEE power distributors): CEE connector (5-pin, 16 A)
PG connector

Content: 1 pc(s)

Number of pins: 5

Depth: 200 mm

Version: Cable

Cable use: C13/C14 appliances

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1763478 Brennenstuhl CEE power distributor 1153750 1153750 400 V 16 A

User & Safety Instructions

User & Safety Instructions 1763478 Brennenstuhl CEE power distributor 1153750 1153750 400 V 16 A

Description

The construction current distributor from Brennenstuhl impresses through its quality and safety in all areas. It is extremely robust and is suitable for Ideal for the construction site use or in general for industrial and crafts. The stable, impact-resistant and splash-protected power distributor with plastic housing can also be used permanently outdoors thanks to oil-resistant cable. In addition, the construction current distributor impresses by its following features:

* Ideal for tough use
* Protection class: IP44
* Sockets: 2x CEE 400V/16A, 4x 230V earthed sockets
* Cable length: 2m
* Cable quality: Rubber neoprene
* CABLE DESIGNATION: H07RN-F 5G1.5
* Maximum current carrying capacity: 16 A.

This text is machine translated.
