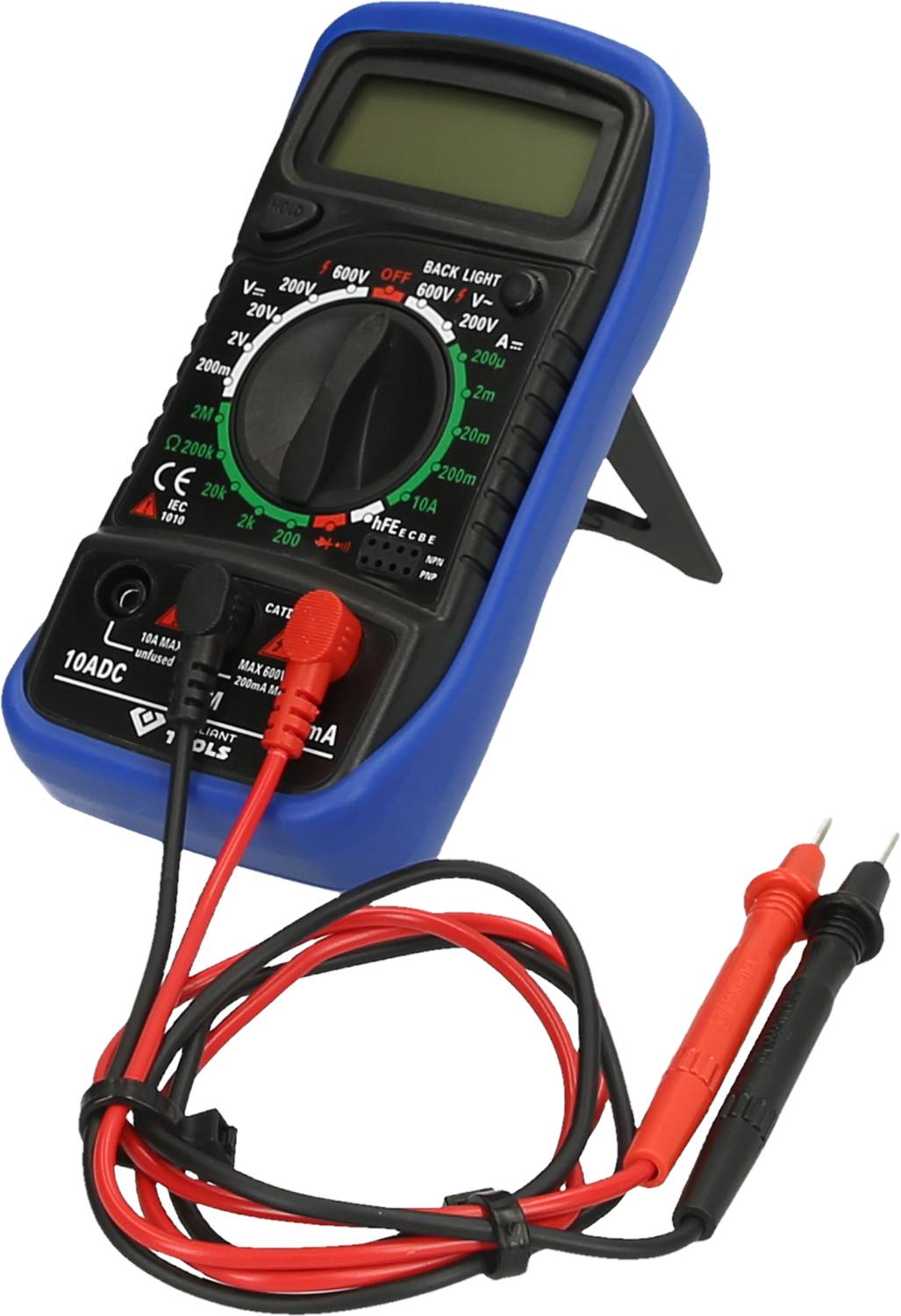

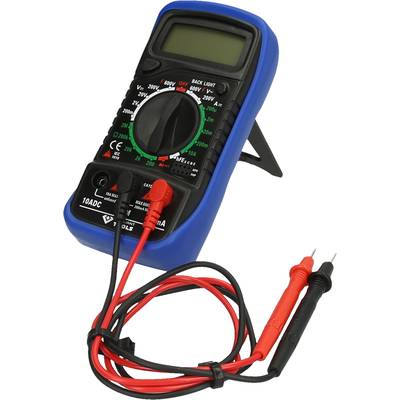

Brilliant Tools BT122900 Handheld multimeter Digital LoZ
EAN:
Part number:
Item no:
Number
Total (€ 7.55 / piece)
€ 7.55
plus VAT.
Technical specifications
- Voltage reading range DC (min.)
200 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
200 V
- V AC reading range (max.)
600 V
- A DC reading range (max.)
10 A
- Height
138 mm
- Width
69 mm
- Length
138 mm
- Weight
340 g
Manufacturer's standards (no certificate)
- Current reading
AC/DC
- Type
BT122900
- Display
Digital
- Dim
(L x W x H) 138 x 69 x 138 mm
- Features
LoZ
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2745591 Brilliant Tools BT122900 Handheld multimeter Digital LoZ
Conformity certificate
Conformity certificate 2745591 Brilliant Tools BT122900 Handheld multimeter Digital LoZ
Description
Approved according to international standards EN 61326-1: 2013 and EN 61326-2-2: 2013Directive on the electromagnetic compatibility of electrical and electronic products 2014/30/EUOverload protection during the measurement of AC/DC voltage, AC/DC current, resistances, capacities, diodes, Logic tests and continuity testingNotification when the battery is low, to replace the battery in good timeIncluding 9V batteryThe BT122900 Brilliant TOOLS multimeter is a compact multimeter for all common measuring tasks at home and for amateurs. It measures safely, quickly and precisely in the areas of voltage, current and resistance and possesses a diode test function for function and polarity determination.The multimeter has a practical data hold storage mode for reading the last measured values. The battery test function is used to measure the charge state of batteries and rechargeable batteries. Moreover, the battery is protected after 15 minutes with the automatic power off function. The multimeter has a large, easy to read display as well as a compact housing.
