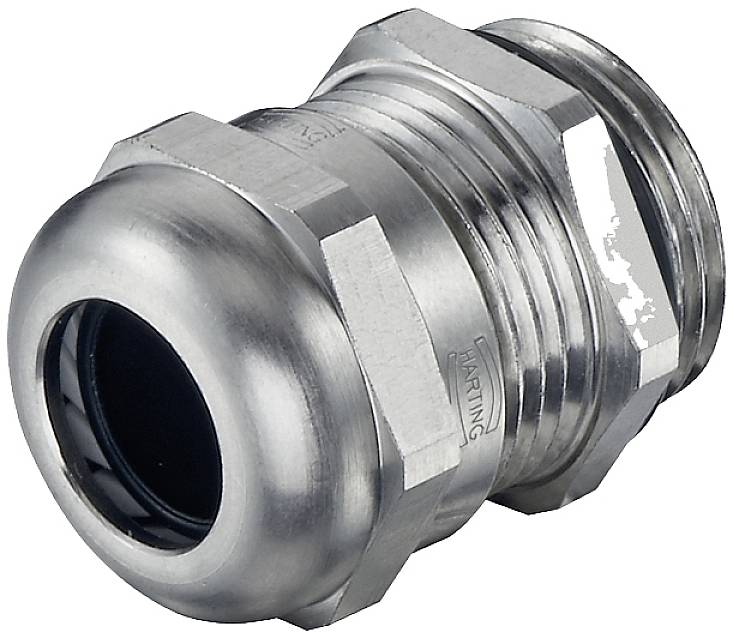

Cable gland 19000005099 HARTING Content: 1 pc(s) Cable screw gland
EAN:
Part number:
Item no:
Product type
Cable screw gland
Type
Harting
Manufacturer part #
19000005099
Content
1 pc(s)
Material
Brass
Datasheet (PDF)
Number
Total (€ 57.13 / piece)
€ 57.13
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Cable gland
Our service for you
Technical specifications
- Material Seal: NBR
- Material clamp cage: Polyamide
- Net weight: 188.8 g
- Wrench width: 50
- Screw size: M40
- Tightening torque: 15 Nm
- Surface Accessories: Nickel plated
- Corner dimension: 55 mm
- Housing series: Han CGM-M
- Clamping range: 20 mm - 32 mm
- Type
Harting
- Product type
Cable screw gland
- Manufacturer part #
19000005099
- Content
1 pc(s)
- Material
Brass
IP68
IP69
IPX9K
- Max. temperature
+100 °C
- Halogen-free
No
Documents & Downloads
Datasheet
Datasheet 1989864 Cable gland 19000005099 HARTING Content: 1 pc(s) Cable screw gland
User & Safety Instructions
User & Safety Instructions 1989864 Cable gland 19000005099 HARTING Content: 1 pc(s) Cable screw gland
