Buy Celsa TQ 18-B 100/1A 0.2VA Kl. 1 70006-1025 Cable current transformer Primary current 100 A Secondary current 1 A Line f

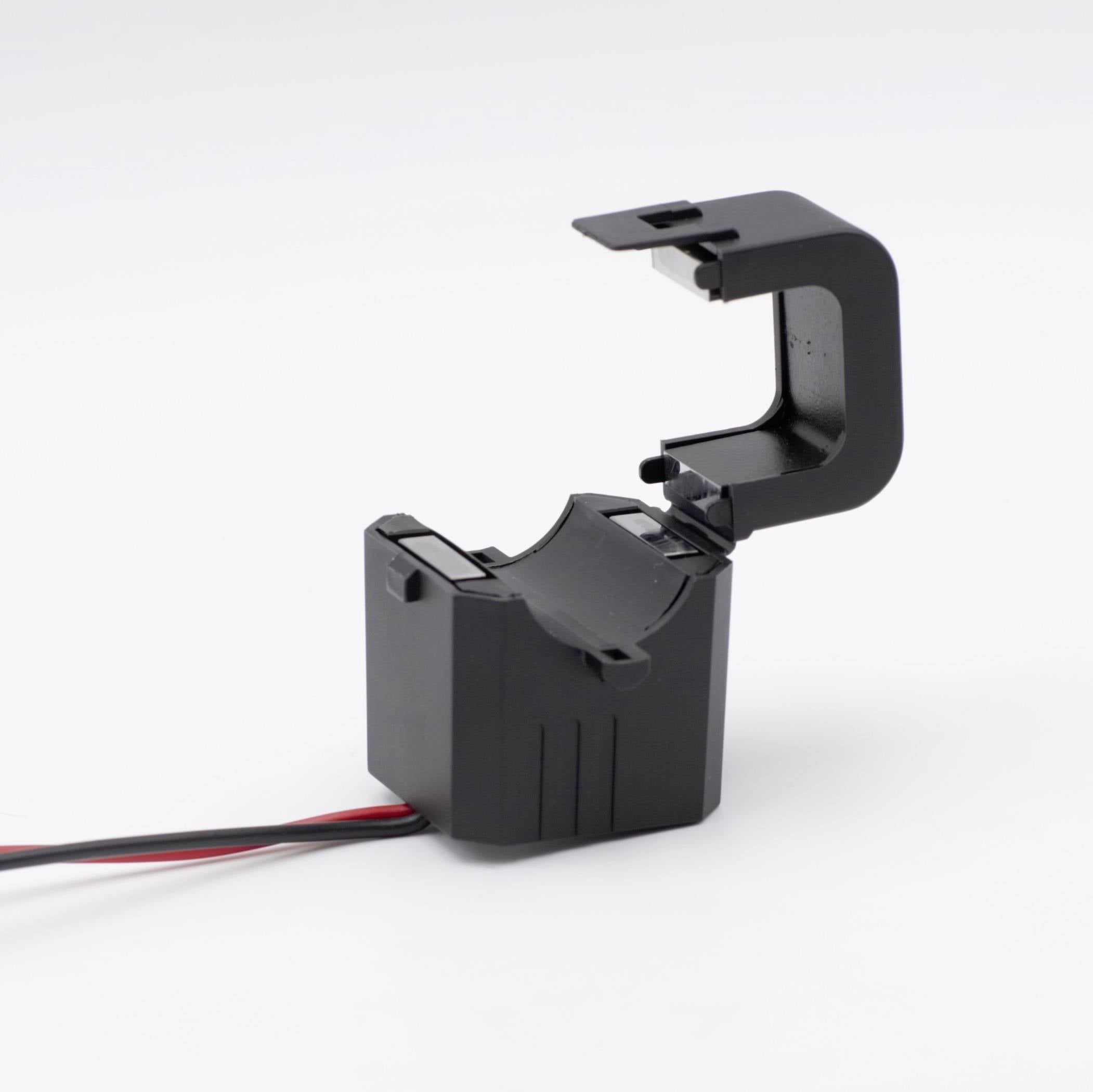

Black electricity sensor with an open casing on a white background, with a red and black cable visible on the side.

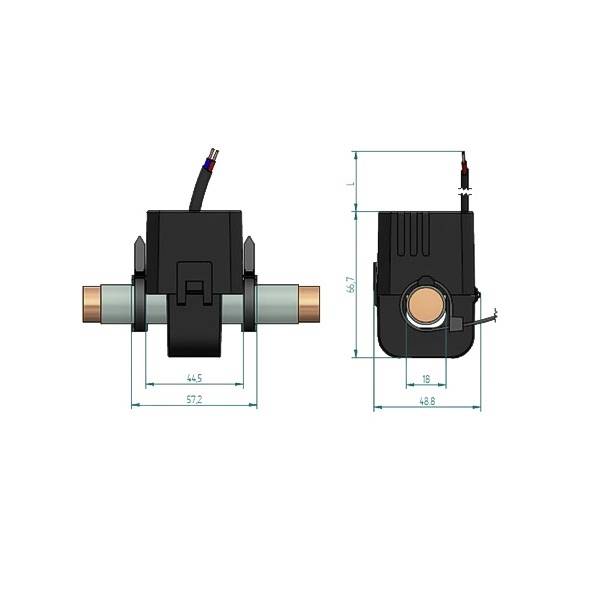

Technical drawing of an electronic device with connection pipes, dimensions specified in millimetres, side and front view.

Technical drawing of an electrical component with dimensions; shows connections and cable wiring.

1/3

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

15 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 77.30 / piece)

€ 77.30

plus VAT.

Report legal concerns

Highlights & Details

CABLEconversion current transformer TQ 18-B 100/1A 0.2VA Kl 1

Line feed-through diameter 18 mm

Technical specifications

Product type: Cable current transformer

Primary current: 100 A

Secondary current: 1 A

Line feed-through diameter: 18 mm

Accuracy class: 1

Type: TQ 18-B 100/1A 0.2VA Kl. 1

Line feed-through (W): 0 mm

Line feed-through (H): 0 mm

: Cable rebuilding current converter

: 18 mm

: 1

: FALSE

: 100 A

: FALSE

: 2 VA

: 1 A

: FS 5

: TRUE

: FALSE

: 1

: 0-0 mm

: 0-0 mm

: Cable

Documents & Downloads

Datasheet

Datasheet 3131446 Celsa TQ 18-B 100/1A 0.2VA Kl. 1 70006-1025 Cable current transformer Primary current 100 A Secondary current 1 A Line f

User & Safety Instructions

User & Safety Instructions 3131446 Celsa TQ 18-B 100/1A 0.2VA Kl. 1 70006-1025 Cable current transformer Primary current 100 A Secondary current 1 A Line f

Description

Extremely compact
Excellent for retrofitting, as you don't need to interrupt the primary circuit
Especially suitable for digital measuring devices
Super quick and easy installation
Fuse of the converter with UV-resistant cable ties
This cable transformer is supplied with multi-color coded connecting cables
