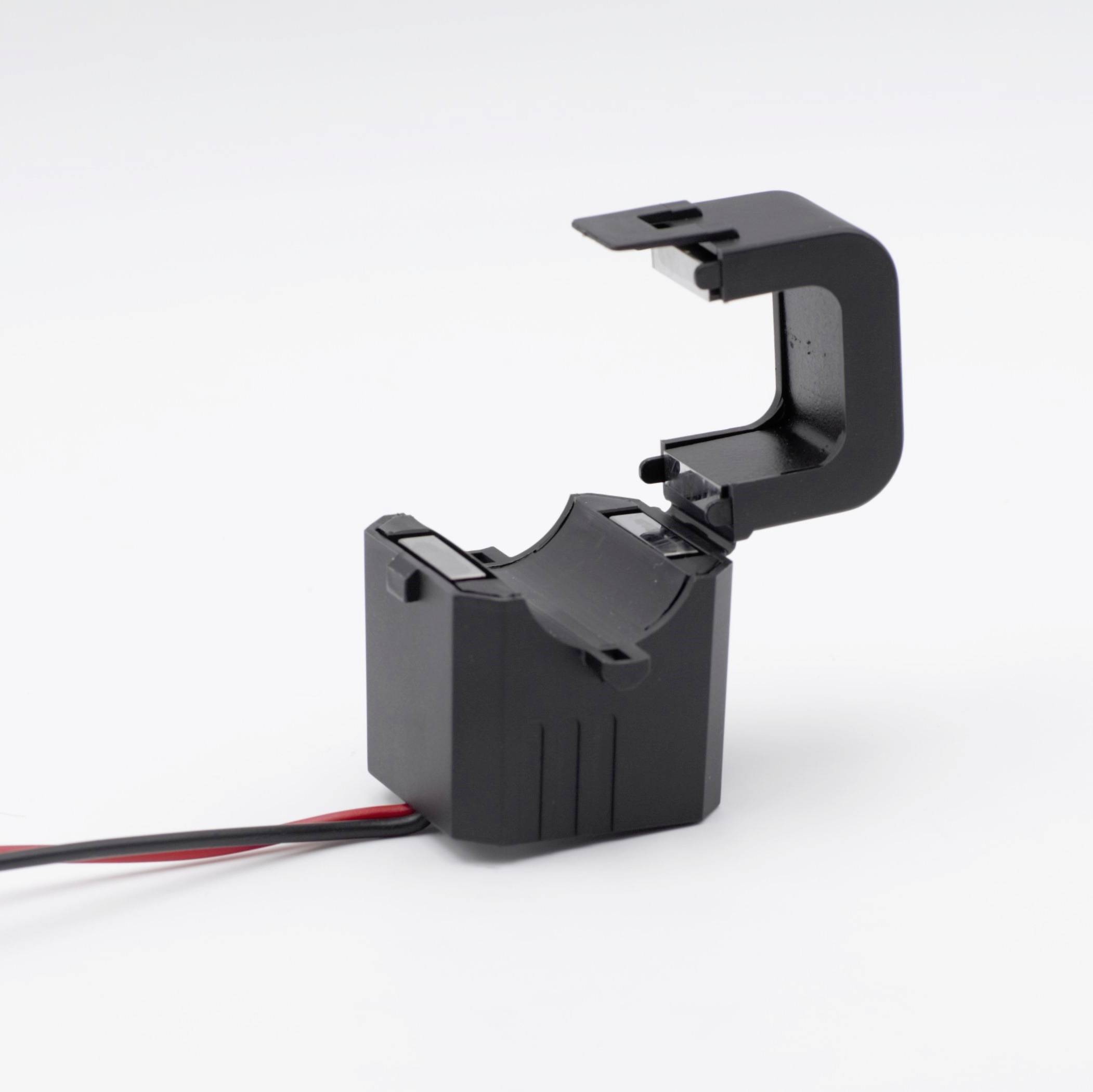

A black cable plug is partially open, revealing red and black wires. It is commonly used in electronic devices.

Diagram of a technical component with dimensions in millimetres: 57.2 x 68.7 x 44.5 (left) and 48.8 high (right).

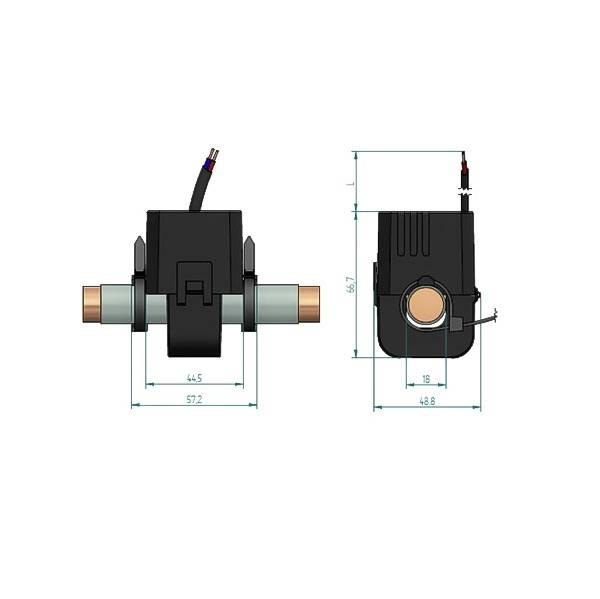

Technical drawing of an electrical device with dimensions: height 86.7 mm, width 48.8 mm. Shows front and side view.

1/3

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 67.22 / piece)

€ 67.22

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

CABLEconversion current transformer TQ 18-B 125/1A 0.2VA Kl 1

Line feed-through diameter 18 mm

Technical specifications

Product type: Cable current transformer

Primary current: 125 A

Secondary current: 1 A

Line feed-through diameter: 18 mm

Accuracy class: 1

Type: TQ 18-B 125/1A 0.2VA Kl. 1

Line feed-through (W): 0 mm

Line feed-through (H): 0 mm

: Cable rebuilding current converter

: 18 mm

: 1

: FALSE

: 125 A

: FALSE

: 2 VA

: 1 A

: FS 5

: TRUE

: FALSE

: 1

: 0-0 mm

: 0-0 mm

: Cable

Documents & Downloads

Datasheet

Datasheet 3131447 Celsa TQ 18-B 125/1A 0.2VA Kl. 1 70006-1026 Cable current transformer Primary current 125 A Secondary current 1 A Line f

User & Safety Instructions

User & Safety Instructions 3131447 Celsa TQ 18-B 125/1A 0.2VA Kl. 1 70006-1026 Cable current transformer Primary current 125 A Secondary current 1 A Line f

Description

Extremely compact
Excellent for retrofitting, as you don't need to interrupt the primary circuit
Especially suitable for digital measuring devices
Super quick and easy installation
Fuse of the converter with UV-resistant cable ties
This cable transformer is supplied with multi-color coded connecting cables
