Buy Celsa TQ 18-B 150/5A 1VA Kl. 1 70006-1053 Cable current transformer Primary current 150 A Secondary current 5 A Line fee

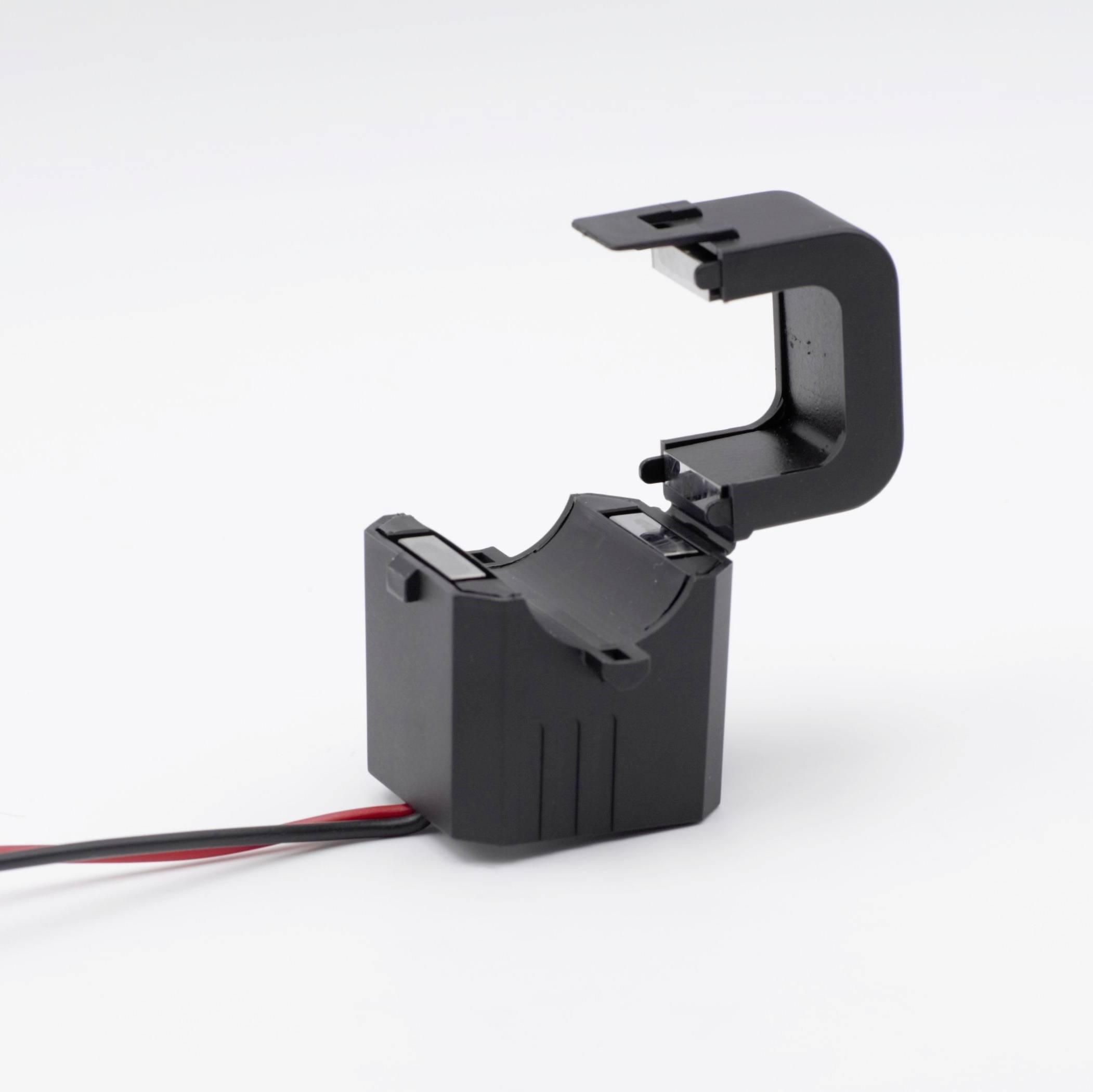

Black plastic clip sensor with an open snap mechanism and red and black wires. Ideal for detecting electrical currents.

Technical drawing of a water flow sensor. Shows the front view with dimensional specifications (57.2 mm width) and side view (68.2 mm height).

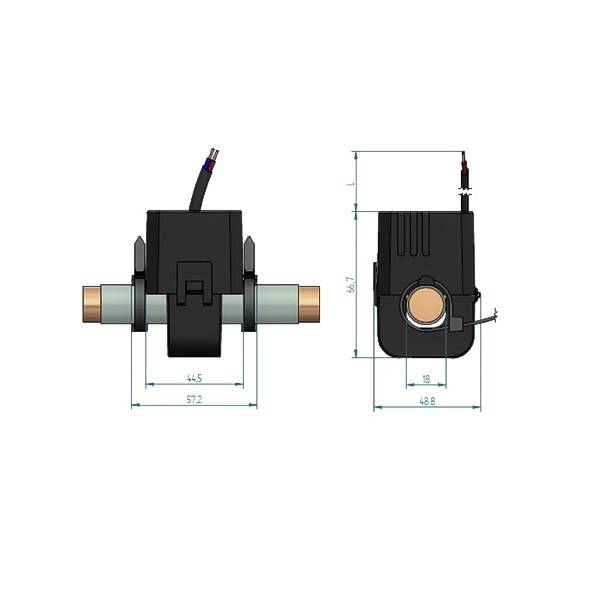

Technical drawing of a flow sensor with two different views. Dimensions are specified: Width 57.2 mm, Height 66.2 mm.

1/3

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 77.30 / piece)

€ 77.30

plus VAT.

Only 7 Piece(s) available

Report legal concerns

Highlights & Details

CABLEconversion current transformer TQ 18-B 150/5A 1VA Cl. 1

Line feed-through diameter 18 mm

Technical specifications

Product type: Cable current transformer

Primary current: 150 A

Secondary current: 5 A

Line feed-through diameter: 18 mm

Accuracy class: 1

Type: TQ 18-B 150/5A 1VA Kl. 1

Line feed-through (W): 0 mm

Line feed-through (H): 0 mm

: Cable rebuilding current converter

: 18 mm

: 1

: FALSE

: 150 A

: FALSE

: 1 VA

: 5 A

: FS 5

: TRUE

: FALSE

: 1

: 0-0 mm

: 0-0 mm

: Cable

Documents & Downloads

Datasheet

Datasheet 3131449 Celsa TQ 18-B 150/5A 1VA Kl. 1 70006-1053 Cable current transformer Primary current 150 A Secondary current 5 A Line fee

User & Safety Instructions

User & Safety Instructions 3131449 Celsa TQ 18-B 150/5A 1VA Kl. 1 70006-1053 Cable current transformer Primary current 150 A Secondary current 5 A Line fee

Description

Extremely compact
Excellent for retrofitting, as you don't need to interrupt the primary circuit
Especially suitable for digital measuring devices
Super quick and easy installation
Fuse of the converter with UV-resistant cable ties
This cable transformer is supplied with multi-color coded connecting cables
