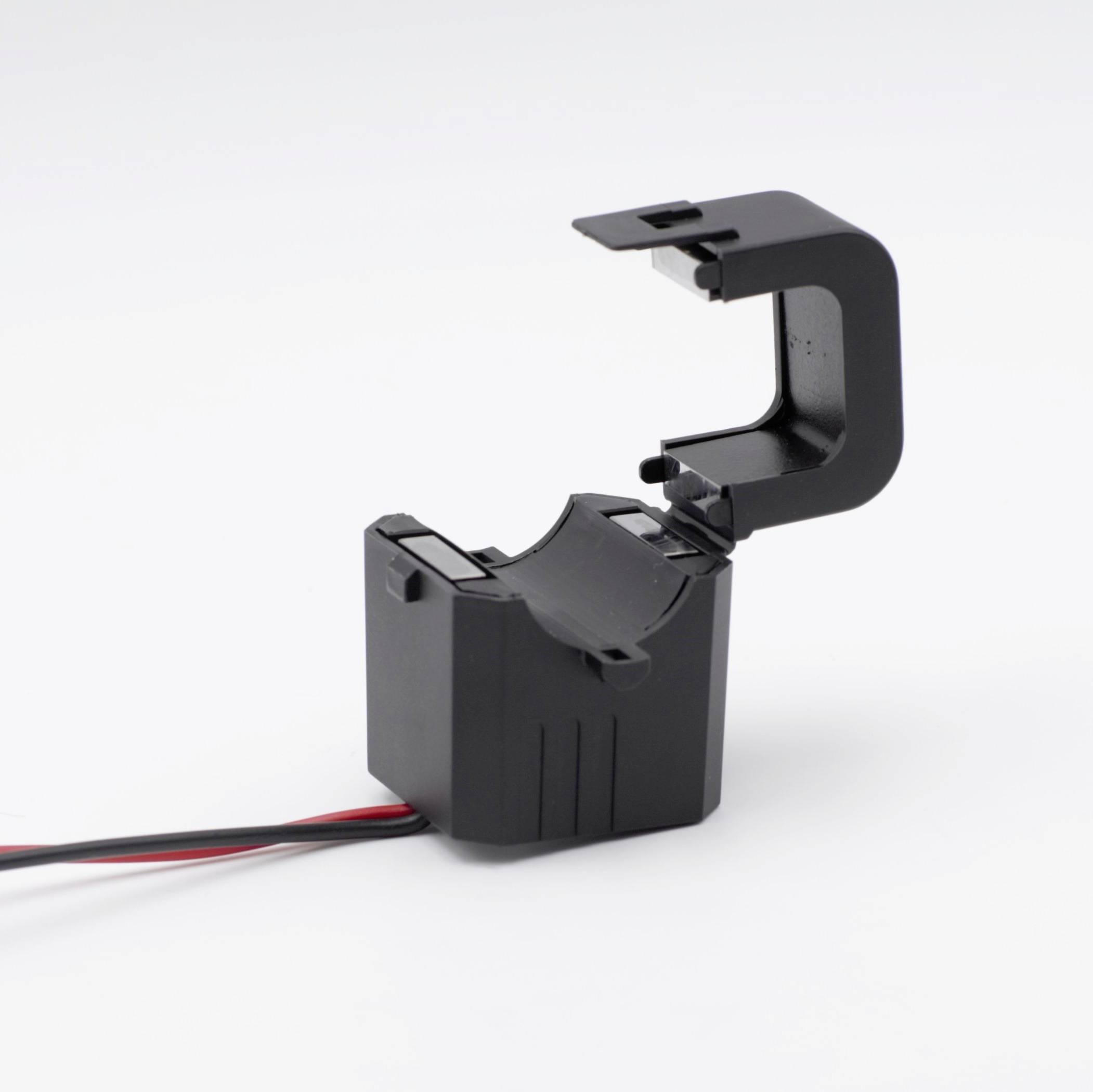

A black electrical component with an open lid and two visible cables. It is intended for technical applications.

Technical drawing of a sensor with dimensions: Length 57.2 mm, Height 68.7 mm, Width 48.8 mm. Sensor has connections on the left and top.

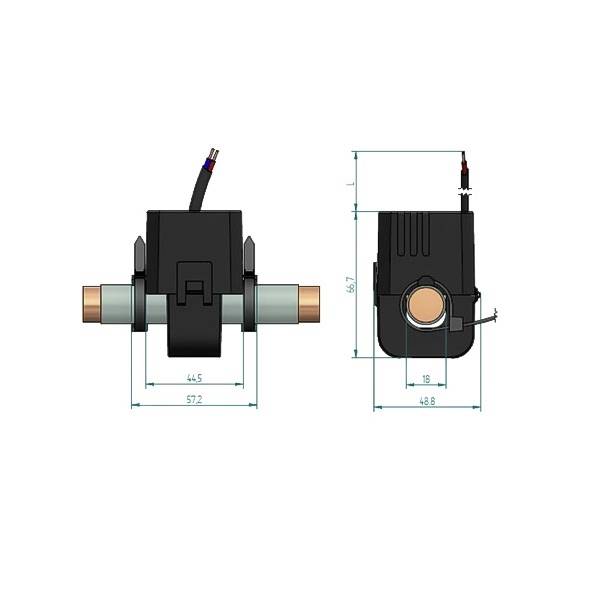

Electrical device with two views: Front view shows pipes with dimensions. Side view shows cable connection and measurements.

1/3

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 77.30 / piece)

€

Report legal concerns

Highlights & Details

CABLEconversion current transformer TQ 18-B 200/5A 1VA Cl. 1

Line feed-through diameter 18 mm

Technical specifications

Product type: Cable current transformer

Primary current: 200 A

Secondary current: 5 A

Line feed-through diameter: 18 mm

Accuracy class: 1

Type: TQ 18-B 200/5A 1VA Kl. 1

Line feed-through (W): 0 mm

Line feed-through (H): 0 mm

: Cable rebuilding current converter

: 18 mm

: 1

: FALSE

: 200 A

: FALSE

: 1 VA

: 5 A

: FS 5

: TRUE

: FALSE

: 1

: 0-0 mm

: 0-0 mm

: Cable

Documents & Downloads

Datasheet

Datasheet 3131451 Celsa TQ 18-B 200/5A 1VA Kl. 1 70006-1030 Cable current transformer Primary current 200 A Secondary current 5 A Line fee

Description

Extremely compact
Excellent for retrofitting, as you don't need to interrupt the primary circuit
Especially suitable for digital measuring devices
Super quick and easy installation
Fuse of the converter with UV-resistant cable ties
This cable transformer is supplied with multi-color coded connecting cables
