Buy Celsa TQ 42 1000/5A 0.5VA Kl. 0.5 70006-1329 Cable current transformer Primary current 1000 A Secondary current 5 A Line

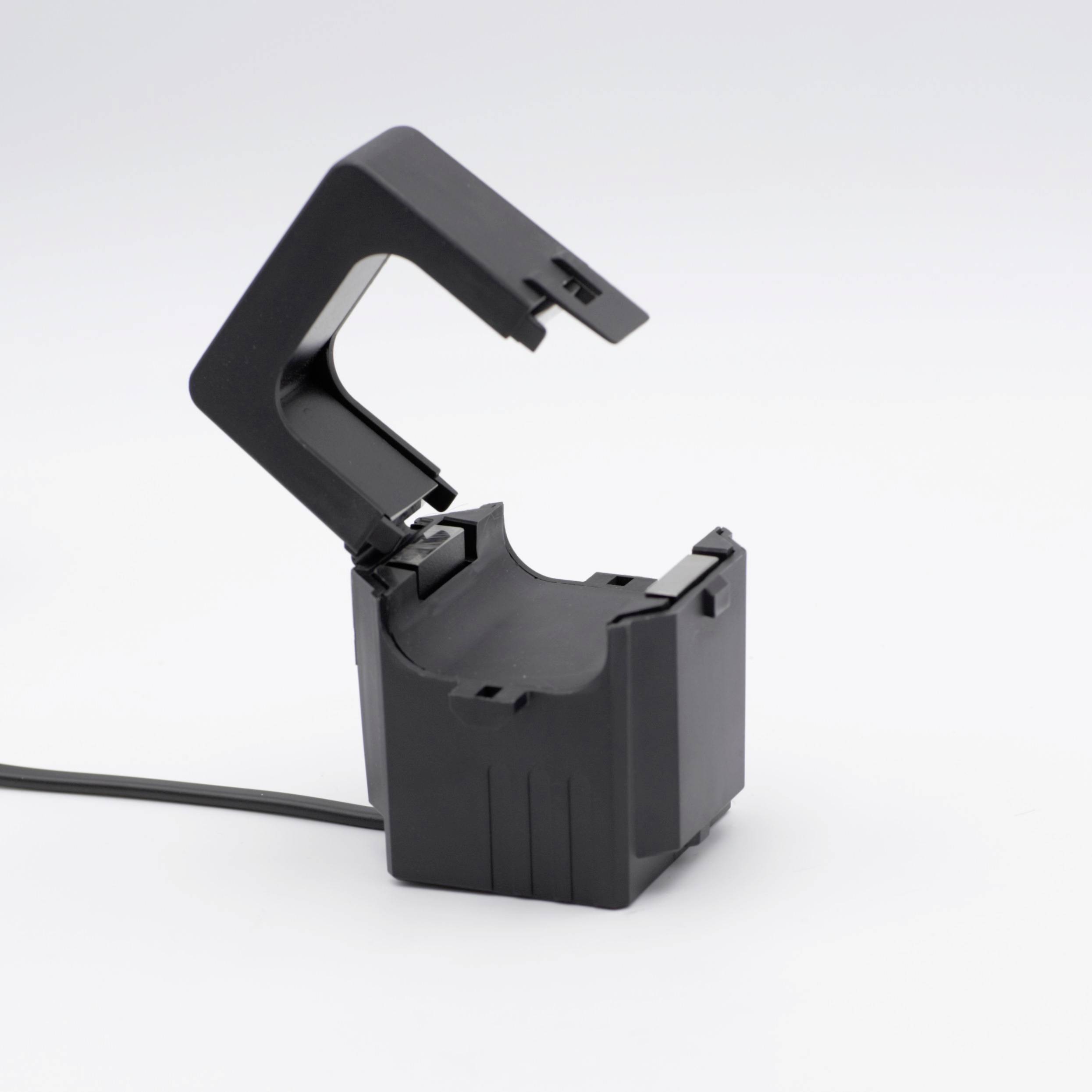

A black, open cable clip with a rectangular design and cable retention function is shown against a white background.

Two technical drawings of an electrical component with dimensions in millimetres. One from the front, the other from the side.

Technical drawing of an electrical component with dimensional specifications. Two views: front and side. Primary colours: Black and Grey.

1/3

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

13 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 96.63 / piece)

€ 96.63

plus VAT.

Report legal concerns

Highlights & Details

Cble to convert transformer TQ 42 1000/5A 0.5VA Cl. 0.5

Line feed-through diameter 42 mm

Technical specifications

Product type: Cable current transformer

Primary current: 1000 A

Secondary current: 5 A

Line feed-through diameter: 42 mm

Accuracy class: 0.5

Type: TQ 42 1000/5A 0.5VA Kl. 0.5

Line feed-through (W): 0 mm

Line feed-through (H): 0 mm

: Cable rebuilding current converter

: 42 mm

: 1

: FALSE

: 1000 A

: FALSE

: 5 VA

: 5 A

: FS 5

: TRUE

: FALSE

: 0.5

: 0-0 mm

: 0-0 mm

: Cable

Documents & Downloads

Datasheet

Datasheet 3131464 Celsa TQ 42 1000/5A 0.5VA Kl. 0.5 70006-1329 Cable current transformer Primary current 1000 A Secondary current 5 A Line

User & Safety Instructions

User & Safety Instructions 3131464 Celsa TQ 42 1000/5A 0.5VA Kl. 0.5 70006-1329 Cable current transformer Primary current 1000 A Secondary current 5 A Line

Description

Extremely compact
Excellent for retrofitting, as you don't need to interrupt the primary circuit
Especially suitable for digital measuring devices
Super quick and easy installation
Fuse of the converter with UV-resistant cable ties
This cable transformer is supplied with multi-color coded connecting cables

This text is machine translated.
