Chauvin Arnoux C.A 942 Handheld oscilloscope 40 MHz 2-channel 2 GS/s 2.5 KP 8 Bit Handheld, Multimeter functions, Harmon
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,802.52 / piece)
€ 1,802.52
plus VAT.
Only 1 Piece(s) available
Highlights & Details
C.A 942 Handscope 2x40 MHz
- 40 MHz
- No. of analogue inputs 0
Technical specifications
- Sampling rate 2 GSa/s in ETS, 50 MSA/s in single shot
- Product type
Handheld oscilloscope
- Bandwidth
40 MHz
- Channel sample rate
2 GS/s
- Displays
Color TFT, 3.5", 2 curves + 2 reference signals + stored curve or MATHS calculated curve
- Resolution
8 Bit
- Screen size
320x240
- Oscilloscope features
Handheld
Multimeter functions
Harmonics analysis
- Time base
25 ns/div to 200 s/div
- No. of analogue inputs
0
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Vertical deflection
5 mV/div to 200 V/div
- Input impedance
1M Ω ± 0,5%, ca 17 pF
- Input coupling
AC, DC, HF, LF or noise suppression
- Input voltage
Derating -20 dB per decade from 100 kHz
- Power supply (details)
6 batteries type LR6 or 6 NiMH rechargeable batteries type AA
- Dim
(L x W x H) 110 x 57 x 214 mm
- Weight
1200 g
- No. of digital inputs (max.)
2
- Display
Color TFT/320x240
- Width
57 mm
- Height
214 mm
- Length
110 mm
- Interfaces
USB
- Channel memory depth
2.5 KP
- Type
C.A 942
Documents & Downloads
Datasheet
Datasheet 2582966 Chauvin Arnoux C.A 942 Handheld oscilloscope 40 MHz 2-channel 2 GS/s 2.5 KP 8 Bit Handheld, Multimeter functions, Harmon
User & Safety Instructions
User & Safety Instructions 2582966 Chauvin Arnoux C.A 942 Handheld oscilloscope 40 MHz 2-channel 2 GS/s 2.5 KP 8 Bit Handheld, Multimeter functions, Harmon
Warranty Terms
Warranty Terms 2582966 Chauvin Arnoux C.A 942 Handheld oscilloscope 40 MHz 2-channel 2 GS/s 2.5 KP 8 Bit Handheld, Multimeter functions, Harmon
Description

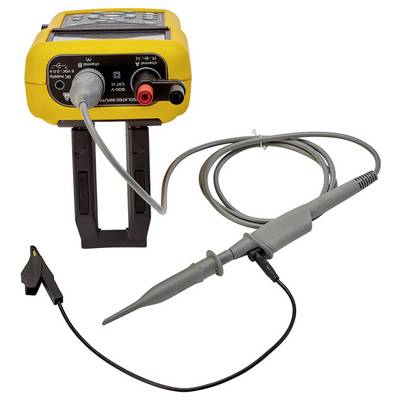

The shock-proof HANDSCOPE CA 942 fits excellently in the hand. The large, LED-lit TFT color screen of the user-friendly device offers a perfect data display.The operation is simplified with easy-to-understand function selection icons and interactive, anytime-ready help in multiple languages. The included carry case and magnetic folding support allow the device to be attached to metal switch cabinets allow hands-free use of the hand scop.The HANDSCOPE combines three devices in one through the 2 isolated channels:- Oscilloscope up to 40 MHz 2 completely isolated channels, 600 V cat III - Bandwidth: 40 MHz - 2 GS/s - 5 mV to 200 V/div and 25 ns to 200 s/div- Multimeter with 8,000 point display and power measurement- Harmonic analyzer up to rank 31 (with a fundamental of 40 to 450 Hz).As a compact device, which can also be held in just one hand, the handscope is perfectly suitable for field use on electrical systems and for general maintenance work. Thanks to the isolated channels, the user can make his measurements without any special precautions in all safety.The 2 MB storage capacity enables a storage of measured data and in the multimeter mode the graphic recording of up to 2,700 measurements (over 5 minutes up to 1 month).The data transfer takes place via optical isolated USB with the SCPI protocol. Thus, the device configuration is possible remotely with the software SX-METRO.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 carrying case
- 1 BNC banana adapter
- 2 test leads 1.5 m long (red/black)
- 2 alligator clips (red/black)
- 2 test tips cat IV 1000 V (red/black)
- 1 divider probe 10:1 600 V
- 1 cable jack plug/USB
- 1 USB power adapter||1 Optical USB cable
- 1 quick instructions
- 1 Safety data sheet
- 1 test report
- 1 Note about NiMH batteries
