Chauvin Arnoux P01120592 MA194-350 Clip-on ammeter adapter 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 273.11 / piece)
€ 273.11
plus VAT.
Highlights & Details
Miniflex MA194-350mm (diameter 100mm)
- Encapsulation-Ø 100 mm / loop length 350 mm
- Safety according to IEC 61010: CAT III 1000 V / CAT IV 600 V.
- Measuring range with PEL 51 / 52: 200 mA...3 kA AC
- Measuring range with PEL 10X / PEL 11X: 200 mA…10 kA AC
- Measuring range with C.A 8331 / 8333 / 8336 / 8436: 100 mA…10 kA AC
- MEASURING RANGE WITH C.A 8332B / 8334B / 8335 / 8435: 30 A...6500 A AC
- Measuring range with C.A 8345: 100 mA…10 kA AC
- Measurement range with C.A 8220 / 8230: 10 / 30 A...6500 A AC
Technical specifications
- Product type
Clip-on ammeter adapter
- Compatible with
Chauvin Arnoux
- Weight
120 g
- Width
110 mm
- Height
18 mm
- Length
170 mm
- Type
MA194-350
Manufacturer's standards (no certificate)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2446291 Chauvin Arnoux P01120592 MA194-350 Clip-on ammeter adapter 1 pc(s)
Description
The MiniFLEX MA194 are flexible current transformers for connection to Chauvin Arnoux power and energy recorders, power analyzers and power and mains analyzers for measuring alternating currents.
They replace the MiniFLEX MA193 series and convince with an improved opening and closing mechanism:

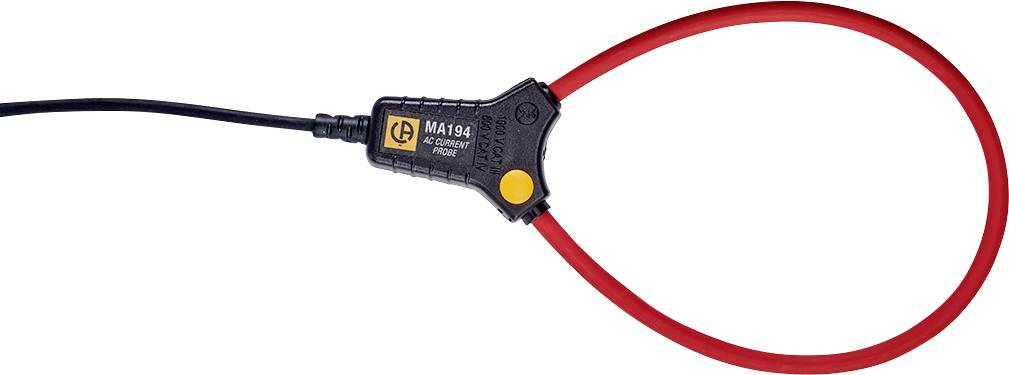

By simply pressing the yellow button, the red Rogowski coil of the current transformer is released, in order to simply lay it around the conductor. When closed, the coil snaps in and locks firmly.
The MiniFLEX MA194 is available with 3 different loop lengths: 250 mm (Ø 70 mm), 350 mm (Ø 100 mm) and 1000 mm (Ø 30 mm).
The MiniFLEX series is characterized by its very thin Rogowski coils with a special flexibility. In addition, it impresses through a particularly high measuring range (e.g. from 200 mA to 10 kA AC with PEL 104 or C.A 8336).
This text is machine translated.
They replace the MiniFLEX MA193 series and convince with an improved opening and closing mechanism:
By simply pressing the yellow button, the red Rogowski coil of the current transformer is released, in order to simply lay it around the conductor. When closed, the coil snaps in and locks firmly.
The MiniFLEX MA194 is available with 3 different loop lengths: 250 mm (Ø 70 mm), 350 mm (Ø 100 mm) and 1000 mm (Ø 30 mm).
The MiniFLEX series is characterized by its very thin Rogowski coils with a special flexibility. In addition, it impresses through a particularly high measuring range (e.g. from 200 mA to 10 kA AC with PEL 104 or C.A 8336).
This text is machine translated.
Scope of delivery
- 1 set of colored identification parts
- 1 operating instructions
