CONTA-CLIP KDS-DE 2X8 BK Sealing UV-resistant, with strain relief, Plug Terminal Ø (max.) 8 mm Thermoplastic elastomer B
EAN:
Part number:
Item no:
Product type
Sealing
Features
UV-resistant
with strain relief
Plug
Material
Thermoplastic elastomer
Clamp Ø
8 mm
Terminal Ø (max.)
8 mm
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 1.85 / piece)
€ 18.48
plus VAT.
Only 7 Set(s) available
Highlights & Details
Sealing element
Our service for you
Technical specifications
- Number of lines: 2Flammability class UL 94: HBDIN: Strain relief according to DIN EN 62444for cable diameter up to 8 mm.Cable diameter min.: 8 mmMounting type: InsertRAL 9005UV-stabilized: YesStrain relief : Yes
- Product type
Sealing
- Features
UV-resistant
with strain relief
Plug
- Factory colour
Black
- Material
Thermoplastic elastomer
- Length
20.3 mm
- Width
20.3 mm
- Height
17.7 mm
- Dim
(L x W x H) 20.3 x 20.3 x 17.7 mm
- Clamp Ø
8 mm
- Terminal Ø (max.)
8 mm
- Min. temperature
-40 °C
- Max. temperature
+120 °C
IP66
- Halogen-free
Yes
- Content
10 pc(s)
- Manufacturer part #
28691.4
- Type
KDS-DE 2X8 BK
- RoHS-compliant
Yes
- Material properties
silicone-free
Documents & Downloads
Datasheet
Datasheet 2617467 CONTA-CLIP KDS-DE 2X8 BK Sealing UV-resistant, with strain relief, Plug Terminal Ø (max.) 8 mm Thermoplastic elastomer B
User & Safety Instructions
User & Safety Instructions 2617467 CONTA-CLIP KDS-DE 2X8 BK Sealing UV-resistant, with strain relief, Plug Terminal Ø (max.) 8 mm Thermoplastic elastomer B
Description

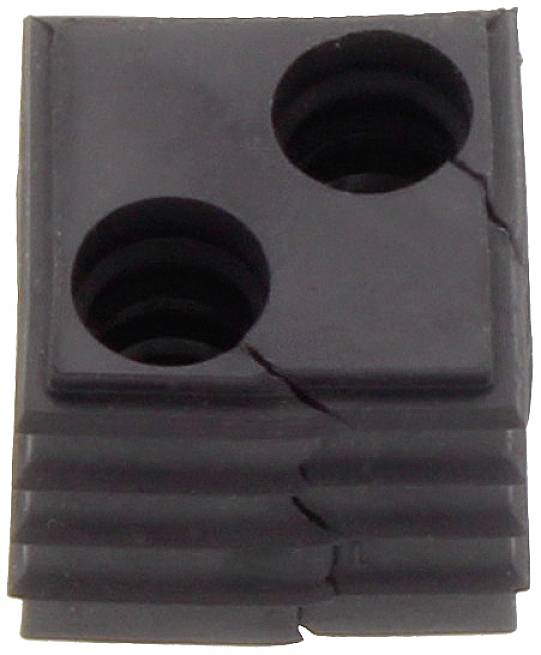

Sealing element, mounting type: Insert, length x width: 20.3 mm, cable diameter max.: 8 mm, IP66, color: Black
