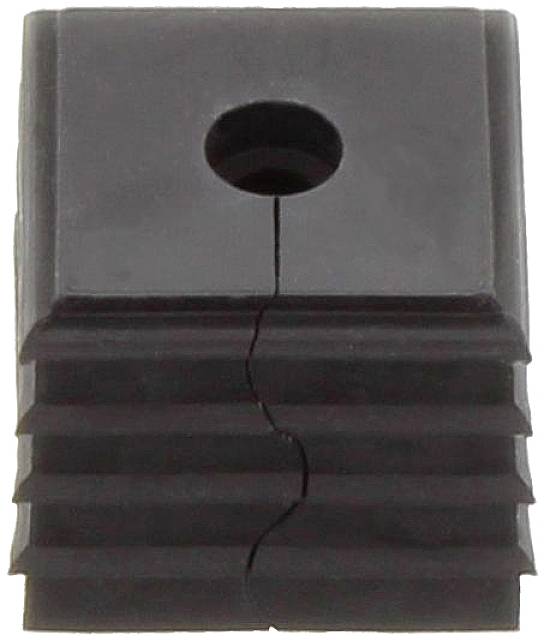

CONTA-CLIP KDS-DE 5-6 BK Sealing with strain relief, UV-resistant Terminal Ø (max.) 6 mm Thermoplastic elastomer Black 1
EAN:
Part number:
Item no:
Product type
Sealing
Features
with strain relief
UV-resistant
Material
Thermoplastic elastomer
Clamp Ø
5 mm
Terminal Ø (max.)
6 mm
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 31.92
3
4% = € 1.38
€ 30.54
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 10 pc(s))
Total (€ 3.19 / piece)
€ 31.92
plus VAT.
Only 5 Set(s) available
Highlights & Details
Sealing element
Our service for you
Technical specifications
- Number of lines: 1Flammability class UL 94: HBDIN: Strain relief according to DIN EN 62444for cable diameter up to 6 mm.Cable diameter min.: 5 mmMounting type: InsertRAL 9005UV-stabilized: YesStrain relief : Yes
- Product type
Sealing
- Features
with strain relief
UV-resistant
- Factory colour
Black
- Material
Thermoplastic elastomer
- Length
20.3 mm
- Width
20.3 mm
- Height
17.7 mm
- Dim
(L x W x H) 20.3 x 20.3 x 17.7 mm
- Clamp Ø
5 mm
- Terminal Ø (max.)
6 mm
- Min. temperature
-40 °C
- Max. temperature
+120 °C
IP66
- Halogen-free
Yes
- Content
10 pc(s)
- Manufacturer part #
28525.4
- Type
KDS-DE 5-6 BK
- RoHS-compliant
Yes
- Material properties
silicone-free
Documents & Downloads
Datasheet
Datasheet 2617415 CONTA-CLIP KDS-DE 5-6 BK Sealing with strain relief, UV-resistant Terminal Ø (max.) 6 mm Thermoplastic elastomer Black 1
User & Safety Instructions
User & Safety Instructions 2617415 CONTA-CLIP KDS-DE 5-6 BK Sealing with strain relief, UV-resistant Terminal Ø (max.) 6 mm Thermoplastic elastomer Black 1
Description
Sealing element, mounting type: Insert, length x width: 20.3 mm, cable diameter max.: 6 mm, IP66, color: Black
