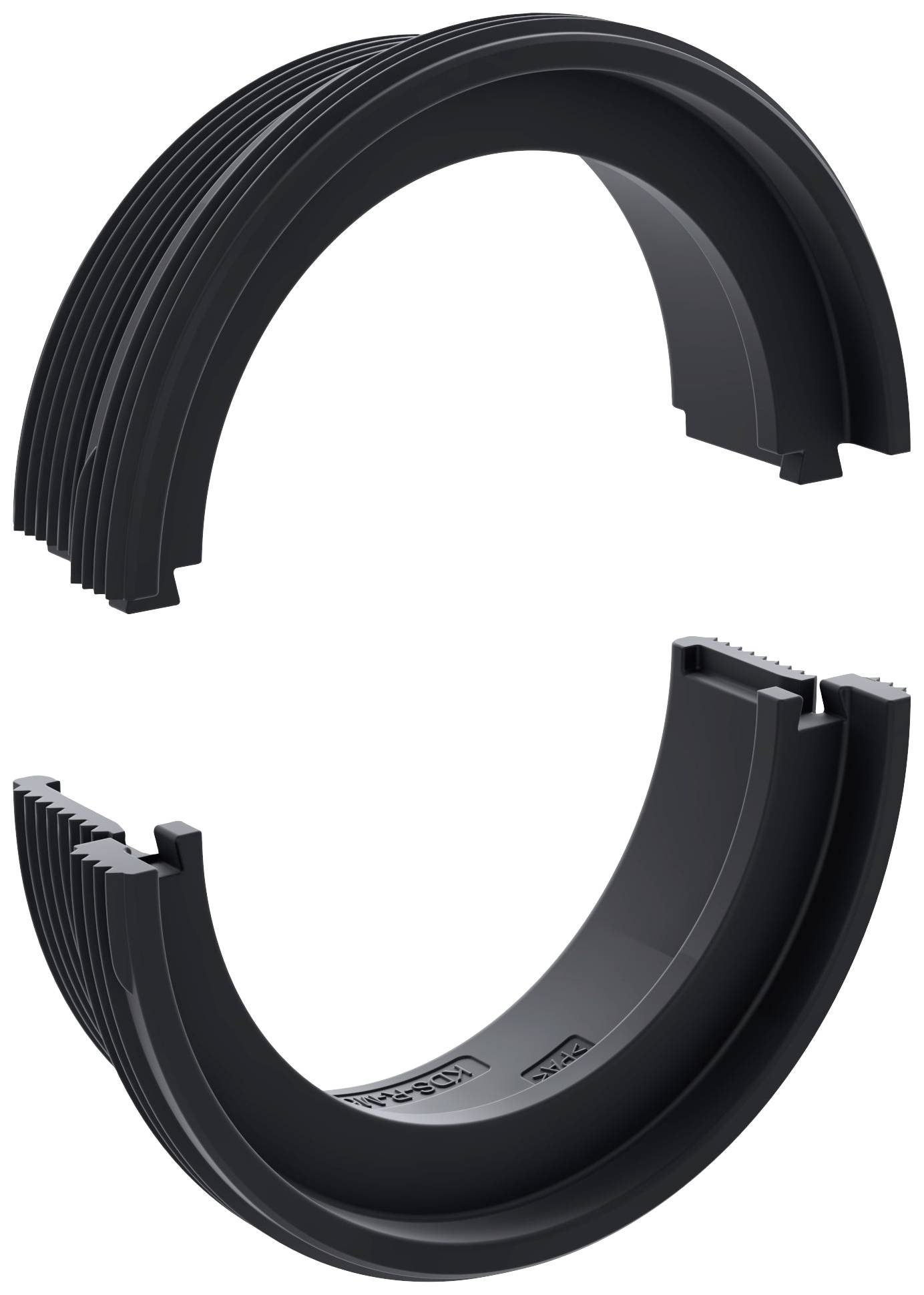

CONTA-CLIP KDS-RGA M50 BK Threaded grommet with locknut Mounting hole diameter 50.4 mm Board thickness (max.) 7 mm Polya
EAN:
Part number:
Item no:
Product type
Threaded grommet
Features
with locknut
Material
Polyamide 6.6
Mounting hole
50 mm
Factory colour
Black
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 26.04
3
4% = € 1.13
€ 24.91
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 5 pc(s))
Total (€ 5.21 / piece)
€ 26.04
plus VAT.
Only 1 Set(s) available
Highlights & Details
Thread and locking adapter
Our service for you
Technical specifications
- Building height 14.9 mmMaximum sheet thickness: 7 mmWidth wall cut-out: 50.4 mmFlammability class UL 94: V-0Torque of the counter nut: 7 NmThread type: MetricThread size 50 mmThread length (L): 14.9 mmThread pitch 1.5 mmLength of wall cut-out: 50.4 mmMounting type: ScrewsRAL 9005
- Product type
Threaded grommet
- Features
with locknut
- Factory colour
Black
- Material
Polyamide 6.6
- Length
70 mm
- Width
70 mm
- Height
22.1 mm
- Dim
(L x W x H) 70 x 70 x 22.1 mm
- Mounting hole
50 mm
- Board thickness (max.)
7 mm
- Min. temperature
-40 °C
- Max. temperature
+120 °C
IP66
- Halogen-free
Yes
- Content
5 pc(s)
- Manufacturer part #
28776.4
- Type
KDS-RGA M50 BK
- RoHS-compliant
Yes
- Material properties
fibreglass-reinforced
silicone-free
- Mounting hole diameter
50.4 mm
Documents & Downloads
Datasheet
Datasheet 2617477 CONTA-CLIP KDS-RGA M50 BK Threaded grommet with locknut Mounting hole diameter 50.4 mm Board thickness (max.) 7 mm Polya
User & Safety Instructions
User & Safety Instructions 2617477 CONTA-CLIP KDS-RGA M50 BK Threaded grommet with locknut Mounting hole diameter 50.4 mm Board thickness (max.) 7 mm Polya
Description
Thread and locking adapter, material: Polyamide PA 6.6, glass fiber reinforced, color: Black
