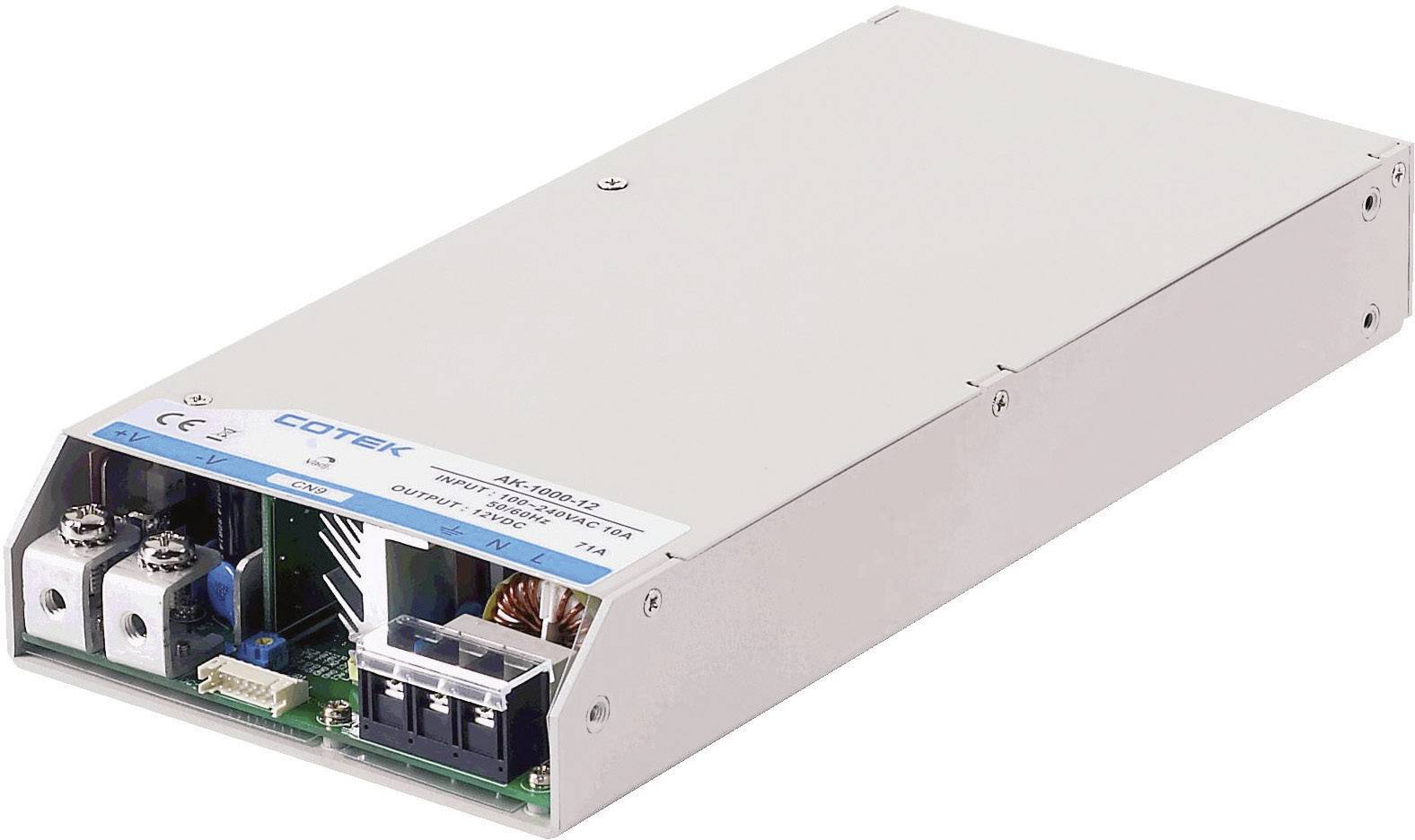

Cotek AK 1000-12 SMPSU 12 V DC 62 A 744 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 402.52 / piece)
€ 402.52
plus VAT.
Highlights & Details
Cotek AK 1000-12 SMPSU 12 V DC 62 A 744 W
- High degree of efficiency
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
62 A
- Output current (max.) - rounded
62 A
- Min. input voltage
90 V AC
- Dim
(L x W x H) 283 x 127 x 41 mm
- Output voltage (max.)
12 V DC
- Connection
Screw terminal
744 W
- No. of outputs
1 x
- Output voltage 1
12 V DC
- Output current 1
62 A
- Type
closed
- Weight
1.9 kg
- Type
Switched Mode
- Width
127 mm
- Height
41 mm
- Length
283 mm
- Type
AK 1000-12
744 W
- Connection
Screw terminals
- Input voltage
90 - 264 V/AC, 127 - 370 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 513351 Cotek AK 1000-12 SMPSU 12 V DC 62 A 744 W
User & Safety Instructions
User & Safety Instructions 513351 Cotek AK 1000-12 SMPSU 12 V DC 62 A 744 W
Warranty Terms
Warranty Terms 513351 Cotek AK 1000-12 SMPSU 12 V DC 62 A 744 W
Description
Features
- Very long life (MTBF)
- Current division in parallel mode
- Output voltage and current can be set
- Protection measures against overload, overvoltage and short circuit with automatic restart
- International deployment of AC and DC wide input ranges
- Safety TUV, EN, UL, CSA, IEC EMC / EMS: EN61000-3, EN61000-4, with PFC as per EN 61000-3-2
