Deditec UC-CAN-E-O8-R8_3A UC-CAN-E-O8-R8_3A IO module CAN, USB No. of digital outputs: 8 No. of digital inputs: 8 No. of
Part number:
Item no:
Product type
IO module
Interfaces
CAN
USB
No. of relay outputs
8
Type
UC-CAN-E-O8-R8_3A
Operating voltage
7 V DC
24 V DC
Datasheet (PDF)
Number
Total (€ 357.14 / piece)
€ 357.14
plus VAT.
Highlights & Details
CAN module with 8 DiO EA - can EA DiO module - 8 optocoupler inputs and 8 digital outputs (3 A) - with Ethernet configuration interface
- Ethernet 10/100 Mbit/s
- Supported protocols: HTTP, UDP, TCP, DHCP, Modbus-TCP
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface, disclosed TCP protocol, Modbus TCP
- Encrypted Ethernet communication is possible
- Open standard or Modbus TCP protocol
- Web interface and APP (smartphone and tablet)
- Galvanically separated up to 1.5 kV
- Control: API for Windows and Linux (DELIB driver library), Command Line Interface
- CAN interface according to ISO 11898
- Open CAN Protocol (RAW CAN)
- Automatic send / receive mode
- Electrically isolated up to 500 V
- Closer (NO)
- Max. SWITCHING VOLTAGE 48 V AC/DC
- Max. SWITCHING CURRENT 3 A AC / DC
- Max. TRANSPORT CURRENT 3 A AC / DC
- Max. breaking capacity 90 W
- Timeout-protection function (can be configured via software)
- Status LED for each output
- Type: Optocouplers AC / DC
- Signal level ±5 V to ±15 V or ±15 V to ±30 V.
- 16 bit counter per channel (up to 100Hz)
- Detects a change from Low to High and High to Low Level (Flip-Flop)
- Status LED for each channel
Technical specifications
- Electrical isolation of the CAN bus
- CANopen profiles according to the CIA® specification CIA 301, CIA 305 and CIA 401
- Product type
IO module
- Interfaces
CAN
USB
- Type
UC-CAN-E-O8-R8_3A
- Operating voltage
7 V DC
24 V DC
- Operating voltage
7 - 24 V DC
- Height
120 mm
- Length
111 mm
- Width
22.5 mm
- No. of digital inputs
0
- No. of digital inputs
8
- No. of digital outputs
8
- No. of relay outputs
8
- Dim
(L x W x H) 111 x 22.5 x 120 mm
- Control LEDs
Yes
- Manufacturer part #
UC-CAN-E-O8-R8_3A
- Fitting type (details)
Rail mounting (Mounting rail TS 35 x 7.5 mm)
- Relay rating
3 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796620 Deditec UC-CAN-E-O8-R8_3A UC-CAN-E-O8-R8_3A IO module CAN, USB No. of digital outputs: 8 No. of digital inputs: 8 No. of
User & Safety Instructions
User & Safety Instructions 3796620 Deditec UC-CAN-E-O8-R8_3A UC-CAN-E-O8-R8_3A IO module CAN, USB No. of digital outputs: 8 No. of digital inputs: 8 No. of
Description

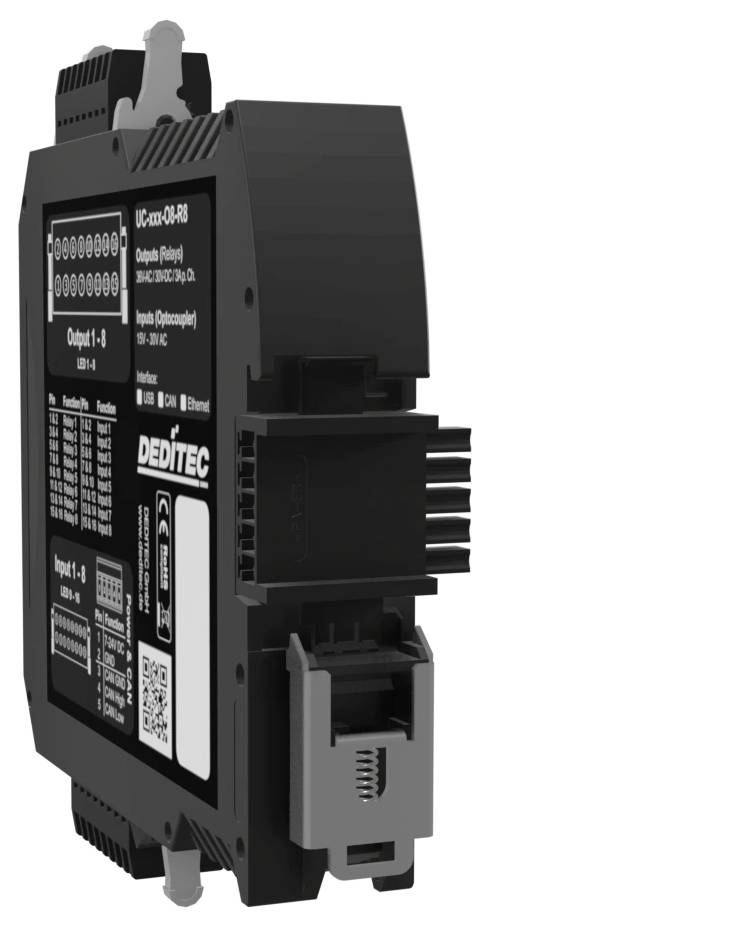

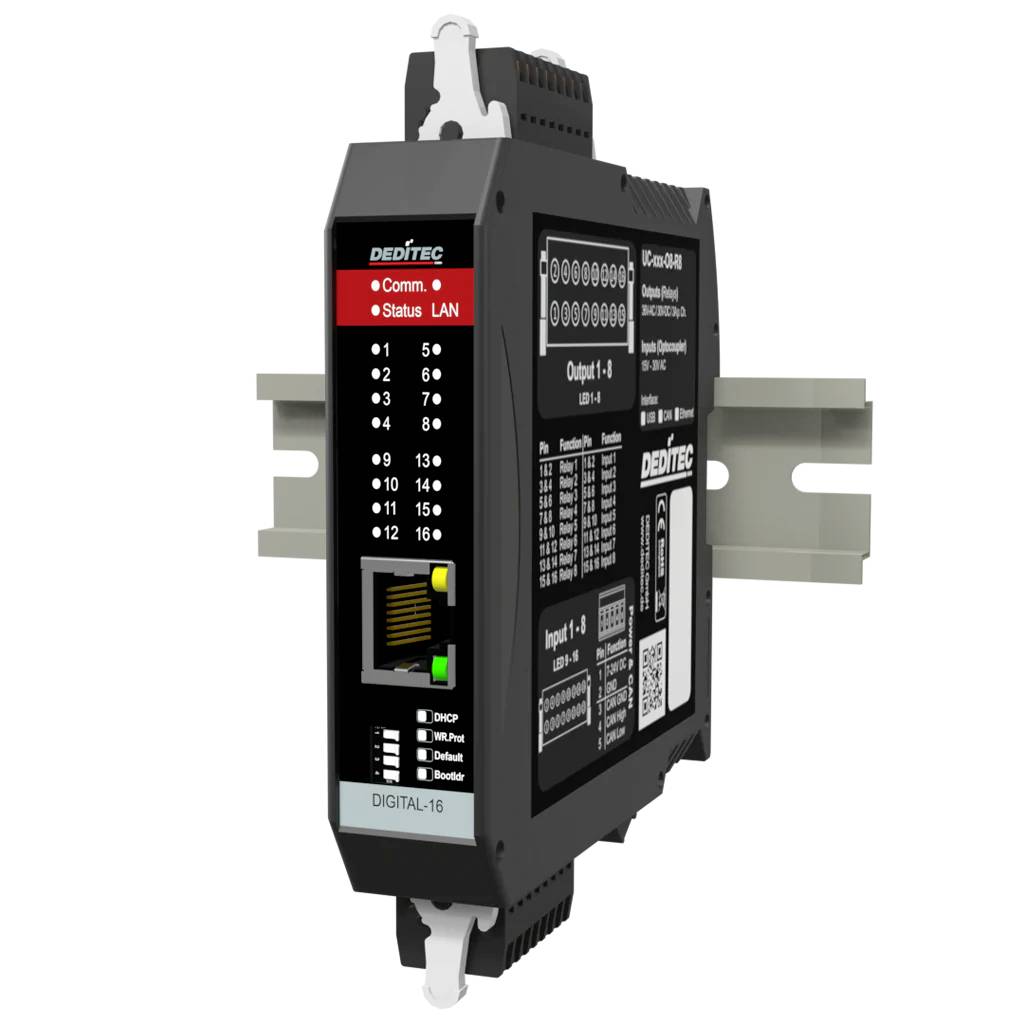

The UC-CAN-E-O8-R8_3A is a modern CAN EA DiO module with 8 optocoupler inputs and 8 digital outputs (3 A). Ideal is suitable for recording sensor signals as well as for switching actuators in industrial applications. Typical application areas are test stands for safe signal processing and automation systems, in which digital inputs and outputs must be controlled reliably via CAN.
This text is machine translated.
This text is machine translated.
Features
- M2M functionality
- Automatic CAN-RX/TX mode
- RAW CAN
- J1939 Protocol
- Free configuration and testing software
- USB configuration interface
- Supply voltage +7 V to +24 V DC
- Plug-in female multipoint connectors with locking mechanism
- Fixes to 35 mm x 7.5 mm DIN rail
- Operating temperature: +10 °C to +50 °C (extended temperature range on request)
- Suitable for typical industrial indoor and switching cabinet environments
Scope of delivery
- 5 pin connector
- 2x 16 pin connectors
- Actuating tool for WAGO connector
- DIN-rail connector
System requirements
- Windows, Linux
