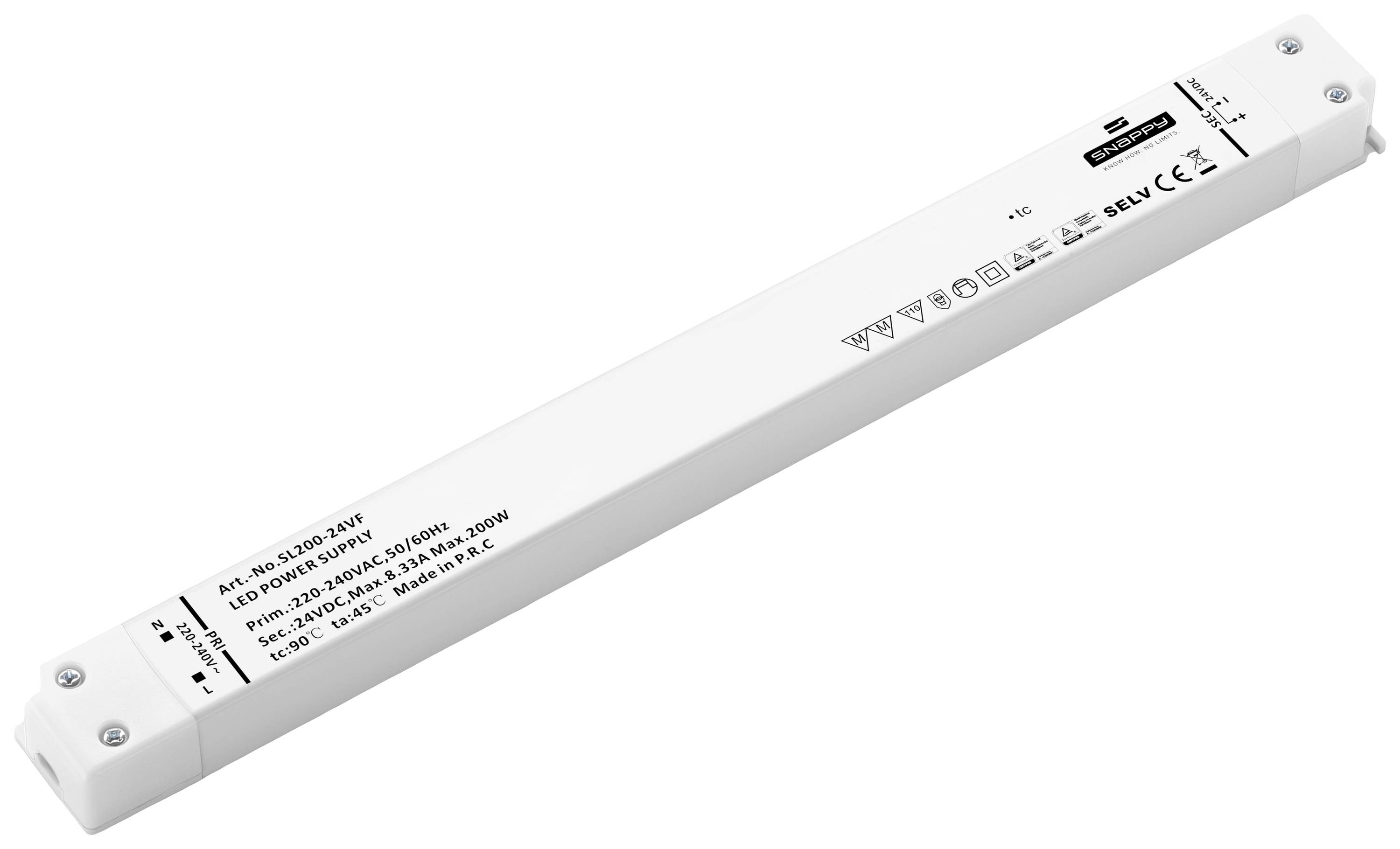

Dehner Elektronik LED 24V200W-MM-EU LED transformer, LED driver Constant voltage 200 W 8.33 A 24 V DC Approved for use o
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
Only 3 Piece(s) available
Highlights & Details
LED power supply/driver LED 24V200W-MM-EU (SL200-24VF) Dehner Elektronik GmbH
- Constant voltage
- 24 V DC
- 8.33 A
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 322 x 30 x 21.5 mm
- Factory colour
White
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Test mark
MM; SELV; TÜV; ; UKCA
- Max. output current
8.33 A
- Output current (max.) - rounded
8.33 A
- Operating voltage
240 V AC
- Protection class
IP20
- LED driver features
Approved for use on furniture
Surge protection
Overvoltage
IP20
- Connection
Screw terminal
- Max. power
200 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
8.33 A
- Input voltage (max.)
264 V AC
- Min. input voltage
180 V AC
- Weight
285 g
- Power (min.)
200 W
- Power range
200 up to 200 W
- Type
Switched PSU
- Width
30 mm
- Height
21.5 mm
- Length
322 mm
- Max. temperature
45 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 2730523 Dehner Elektronik LED 24V200W-MM-EU LED transformer, LED driver Constant voltage 200 W 8.33 A 24 V DC Approved for use o
User & Safety Instructions
User & Safety Instructions 2730523 Dehner Elektronik LED 24V200W-MM-EU LED transformer, LED driver Constant voltage 200 W 8.33 A 24 V DC Approved for use o
Warranty Terms
Warranty Terms 2730523 Dehner Elektronik LED 24V200W-MM-EU LED transformer, LED driver Constant voltage 200 W 8.33 A 24 V DC Approved for use o
Description
Power supply specially designed for LED lighting, which stands out due to its compact design. Suitable for various LED interior applications. (E.g. Furniture installation, suspended ceilings)
This text is machine translated.
This text is machine translated.
Scope of delivery
- User manual
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
