Dehner Elektronik SL 100-24VF-1 LED transformer, LED driver Constant voltage 100 W 4.17 A 24 V DC Surge protection, Over
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 38.65 / piece)
€ 38.65
plus VAT.
Only 4 Piece(s) available
Highlights & Details

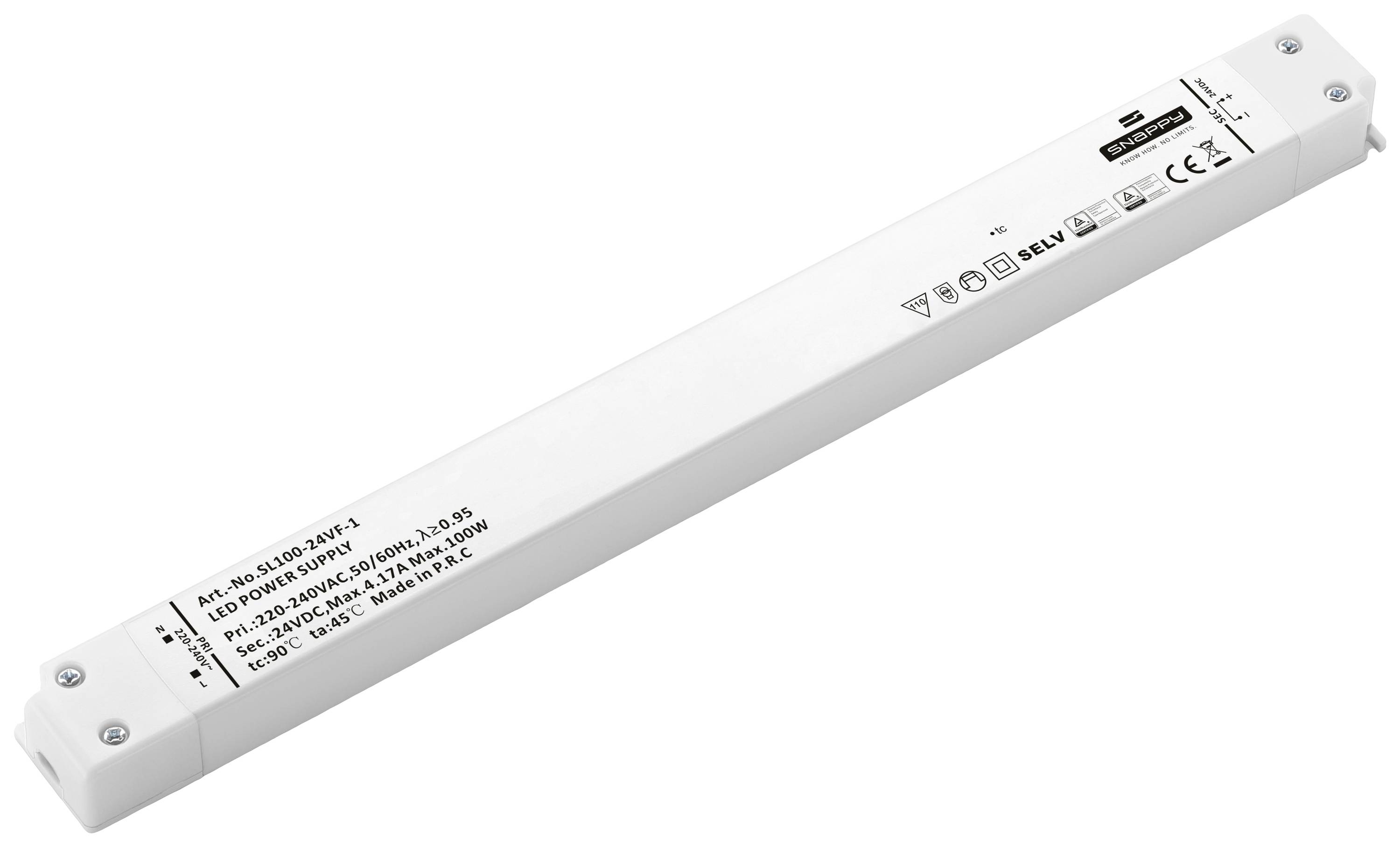

LED power supply/driver SL 100-24VF-1 Dehner Elektronik GmbH
- Constant voltage
- 24 V DC
- 4.17 A
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 320 x 30 x 19 mm
- Factory colour
White
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Test mark
MM; SELV; TÜV; ; UKCA
- Max. output current
4.17 A
- Output current (max.) - rounded
4.17 A
- Operating voltage
240 V AC
- Protection class
IP20
- LED driver features
Surge protection
Overvoltage
Approved for use on furniture
IP20
- Connection
Screw terminal
- Max. power
100 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
4.17 A
- Input voltage (max.)
264 V AC
- Min. input voltage
180 V AC
- Weight
170 g
- Power (min.)
100 W
- Power range
100 up to 100 W
- Type
Switched PSU
- Width
30 mm
- Height
19 mm
- Length
320 mm
- Max. temperature
45 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 2730529 Dehner Elektronik SL 100-24VF-1 LED transformer, LED driver Constant voltage 100 W 4.17 A 24 V DC Surge protection, Over
User & Safety Instructions
User & Safety Instructions 2730529 Dehner Elektronik SL 100-24VF-1 LED transformer, LED driver Constant voltage 100 W 4.17 A 24 V DC Surge protection, Over
Warranty Terms
Warranty Terms 2730529 Dehner Elektronik SL 100-24VF-1 LED transformer, LED driver Constant voltage 100 W 4.17 A 24 V DC Surge protection, Over
Description
Power supply specially designed for LED lighting, especially compact and flat design. Suitable for various LED-applications in the inner area. (E.g. Decoration, furniture installation, suspended ceilings)
This text is machine translated.
This text is machine translated.
Scope of delivery
- User manual
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
