Buy Digitus DN-19 FAN-2-N 19 inch 2 x Server rack cabinet fan with switch Grey-white (RAL 7035)

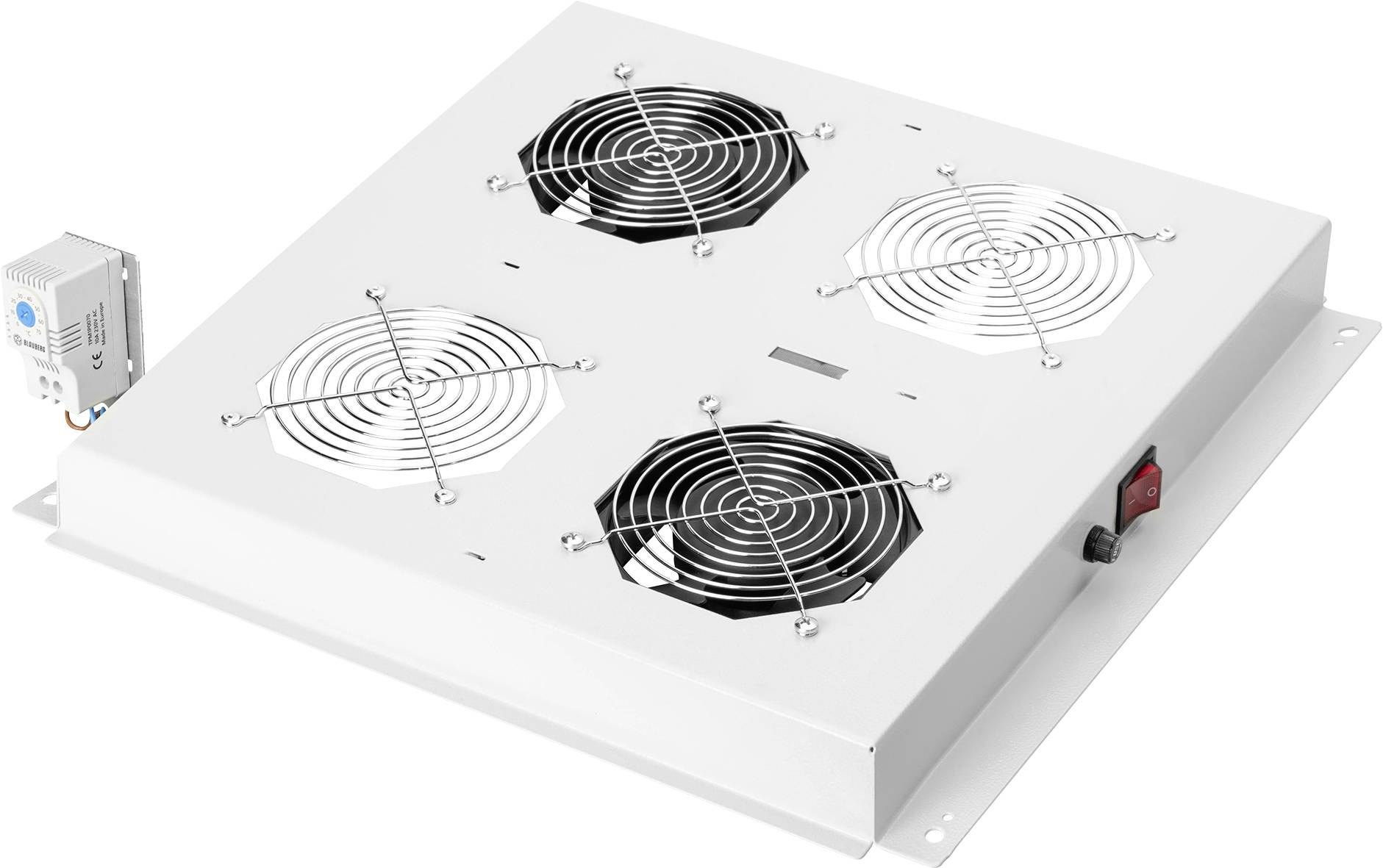

A square ventilation unit with four fans and protective grills, featuring a control switch on the side, used for air circulation.

A thermostat with a blue dial set to 25°C, mounted on a metal bracket.

A close-up of a white electronic device shows a red power switch in the 'on' position next to a fuse indicator.

Close-up of a white metal panel with two circular ventilation grilles and screws, indicating part of an electronic device or appliance.

'A white ventilation unit with two black electric fans and wiring on a rectangular metal surface.'

1/5

Datasheet (PDF)

Dispatches on Thu, 6 Aug

341 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 105.03 / piece)

€ 105.03

plus VAT.

Report legal concerns

Highlights & Details

Roof Cooling Unit for Unique Network Cabinets & Dynamic Basic Network- and Server Cabinets

The DIGITUS 483 mm (19") equipment is made for high demand IT-infrastructure solutions, produced on German standards.

Technical specifications

Product type: Server rack cabinet fan

Features: with switch

Suitable for server rack cabinet (inch): 19 inch

Dim: (W x H x D) 430 x 45 x 415 mm

Cable length: 1.8 m

No. of fans: 2 x

Noise level: 47 dB

Content: 1 pc(s)

Factory colour: Grey-white (RAL 7035)

Width: 430 mm

Height: 45 mm

Depth: 415 mm

Rack size: 483 mm (19")

Weight: 3220.00

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 704680 Digitus DN-19 FAN-2-N 19 inch 2 x Server rack cabinet fan with switch Grey-white (RAL 7035)

User & Safety Instructions

User & Safety Instructions 704680 Digitus DN-19 FAN-2-N 19 inch 2 x Server rack cabinet fan with switch Grey-white (RAL 7035)

Description

The Roof Ventilation Units are suitable for all network cabinets of the Unique Series as well as for all network- and server cabinets of the Dynamic Basic Series. Furthermore they also fit into all unmounted network- and server cabinets (-EC). The installation in the roof module of the cabinet can be done quick and easy. A switch as well as an adjustable thermostat provide best options for customizations. The model is available in color grey (RAL 7035) and black (RAL 9005), equipped with either two or four fans.

· For installation into top-floor module
· 2 fans
· Noise level: 47 dBm
· Thermostat adjustable from 0 ~ +35°C
· On/off switch
