Buy Digitus DN-651118 DN-651118 Industrial Ethernet switch 5 ports 10 / 100 / 1000 MBit/s

Blue network switch with five Ethernet ports on the front, suitable for industrial applications.

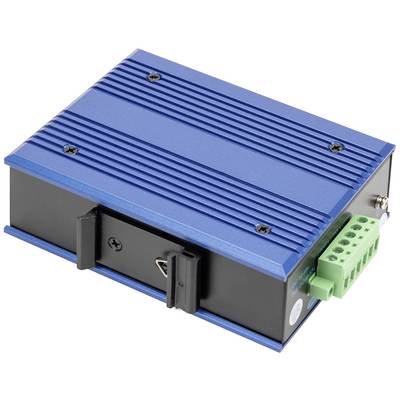

A rectangular, blue electronic device with ventilation grooves, a black base, and a green connection block on the right-hand side.

Two network switches with multiple Ethernet ports, marked with 'GE'. They are installed and interconnected in a server room.

A network switch with multiple connected blue Ethernet cables representing data connections in a server room.

A blue, industrial 5-port Gigabit switch by Digitus positioned against an industrial background. Temperature range: -40°C to 85°C. Protection class IP40.

'DN-651118' is an industrial 5-port Gigabit switch by Digitus, unmanaged, with surge and short-circuit protection. Connection ports: Ethernet (RJ45).

'DN-651118 Industrial 5 Port Gigabit Switch, Unmanaged' shows device with ports, description of technical features, and mounting options.

'Industrial Switch DN-651118 with 5 Ports. Functions: Lightning protection, Surge protection, Power supply.'

Industrial 5-port Gigabit switch, unmanaged. Drawing shows dimensions in mm: Length 118, Height 28, Depth 84. Model DN-651118.

1/9

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

50 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 58.82 / piece)

€ 58.82

plus VAT.

Report legal concerns

Highlights & Details

Digitus DN-651118 industrial 5-port Gigabit switch, unmanaged, redundant power supply

5 x 10/100/1000Base-TX Ethernet ports
Automatic cable detection - Auto MDI/MDI-X function
Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE802.3ab 1000BaseTX
IEEE802.3x flow control and back pressure
Store-and-forward technology for optimized data transfer

Technical specifications

Extended operating temperature range, -40 °C ~ +85 °C.
Removable terminal connection
Protection class: IP40
Number of ports: 5
Ethernet speed: Gigabit
Industrial use: Yes
Mounting type: DIN rail, wall

Product type: Industrial Ethernet switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 5

10/100/1000 Mbps ports: 5 x

Port type: RJ45

Auto-uplink at each port: Yes

Power supply (LOV): mains-powered
mains-powered (redundant)
via terminal
via DIN rail PSU

Weight: 360 g

Width: 118 mm

Height: 39 mm

Depth: 86 mm

Type: DN-651118

Interfaces: Gigabit LAN (1 Gbps)
Gigabit LAN (1 Gbps)
RJ45

: IP40

Factory colour: Blue
Blue-purple
Blue
Cobalt blue
Black

Operating voltage: 48 V DC

Max. ambient temperature: +85 °C

Min. ambient temperature: -40 °C

Port: 5 ports

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2259026 Digitus DN-651118 DN-651118 Industrial Ethernet switch 5 ports 10 / 100 / 1000 MBit/s

User & Safety Instructions

User & Safety Instructions 2259026 Digitus DN-651118 DN-651118 Industrial Ethernet switch 5 ports 10 / 100 / 1000 MBit/s

Description

Digitus DIGITUS® Industrial Gigabit Switch is designed for harsh environments where it is exposed to humidity, temperature fluctuations and vibration. With a temperature range of -40°C to 85°C, the Industrial Gigabit Switch can be used under the most unfavorable conditions. Continuous availability is ensured in highly sensitive areas such as transport, production, transport and security monitoring. The simple plug-and-play system allows the Industrial Gigabit Switch to be quickly integrated into the respective environment. Due to the Gigabit connectivity, the Industrial Gigabit Switch thus represents a flexible, cost-effective solution for the industrial environment.

This text is machine translated.

Features

Automatic speed and half/full duplex detection/setting
Backplane with 10Gbps
MAC address memory 4K
compact, robust metal housing
excellent protection against short circuits
lightning protection and overvoltage protection
DIN rail (DIN rail) and wall mounting possible
Redundant power supply: 12~48 V DC, redundant power supply with polarity reversal protection function
