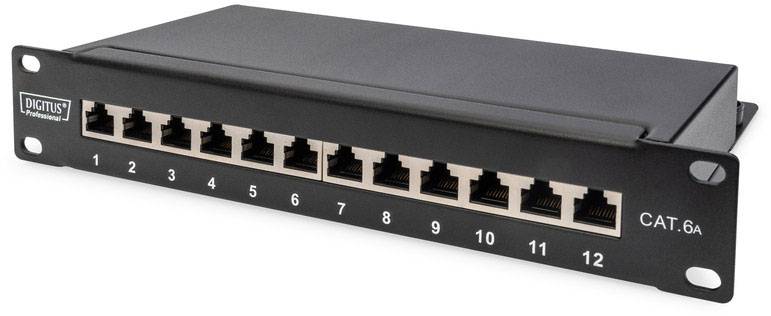

Digitus DN-91612S-EA 12 ports Network patch panel 254 mm (10") CAT 6A 1 U Multicolour Equipped
EAN:
Part number:
Item no:
Number
Total (€ 26.88 / piece)
€ 26.88
plus VAT.
Highlights & Details
Digitus CAT 6A patch panel, 10", 12-port, shielded, 1HE, rack mount, black
- Robust patch panel with sturdy metal housing
- Complete shielding of housing and shield contact
- Cable installation via LSA-strips
- Central grounding connection
- Dielectric strength up to 1500 VDC (contact / ground)
Technical specifications
- Dielectric strength up to 1500 VDC (contact / ground)
- Transfer property: Category 6A, class EA
- Application areas: Up to 500 MHz, 10GBase-T.
- Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
- Suitable for 10" (254 mm) cabinet mounting
- Material casing: 1.5 mm galvanized, cold-rolled steel according to EN 1.4301, US S30400, AISI 304 and LMSAD110
- Material RJ45 socket: ABS UL 94V-0
- Contact RJ45 socket: Nickel plated phosphor bronze, 0.5 μ gold plated contact
- RJ-45 shielding: Nickel-plated bronze
- LSA-cutting terminal: Krone LSA+, UL 94V-0, galvanized phosphor bronze
- PRINTED CIRCUIT BOARD FR4, UL 94V-0
- Insertion force: 30N max. (IEC 60603-7-5)
- Tensile load: 7.7 kg between socket and plug
- OPERATING TEMPERATURE -20° C TO +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Plug-in cycle socket: Greater than 750 in accordance with ISO/IEC 11801, IEC 60603-7-5
- Terminal: Greater than 200 in accordance with ISO/IEC 11801, IEC 60603-7-5
- Wire intake: 22-26 AWG solid and stranded conductor
- Insulation resistance: Greater than 500 MOhm
- Contact resistance: Less than 20 milliohms
- Dielectric strength 1000VDC (contact/contact), 1500VDC (contact/ground)
- Colour: Black
- Category: Cat.6A
- Grounding wire: Not included
- Product type
Network patch panel
- Rack size
254 mm (10")
CAT 6A
- Rack unit
1 U
- Transfer rate
10 GBit/s
- Port
12 ports
- Patch panel design
Equipped
- Connection method
LSA+
- Connections
RJ45
- Width
110 mm
- Height
44 mm
- Factory colour
Multicolour
- Length
255 mm
- Weight
0.89
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2143953 Digitus DN-91612S-EA 12 ports Network patch panel 254 mm (10") CAT 6A 1 U Multicolour Equipped
Description
Future-oriented standards and high-end quality for your network
The DIGITUS® CAT 6A patch panel is available in the 12-port version and with its 1.5 mm galvanized cold-rolled steel, it is a robust patch panel for 10" cabinet mounting. It corresponds to the (IEEE 802.3at/af) PoE+ standard. The patch panel is electromagnetically shielded and thus offers loss-free and interference-free transmission of the data of your network infrastructure. The 360° shielding at the contact points ensures that every single consolidation point is also cleanly shielded.
This text is machine translated.
The DIGITUS® CAT 6A patch panel is available in the 12-port version and with its 1.5 mm galvanized cold-rolled steel, it is a robust patch panel for 10" cabinet mounting. It corresponds to the (IEEE 802.3at/af) PoE+ standard. The patch panel is electromagnetically shielded and thus offers loss-free and interference-free transmission of the data of your network infrastructure. The 360° shielding at the contact points ensures that every single consolidation point is also cleanly shielded.
This text is machine translated.
Features
- Transfer property: Category 6A, class EA
- Application areas: Up to 500 MHz, 10GBase-T.
- Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
- Suitable for 10" (254 mm) cabinet mounting
- RJ45 sockets, 12P12C
- Cable installation via LSA-strips, color-coded according to EIA/TIA 568 A & B.
- Cable fixing by means of cable ties
- Central grounding connection
- 360° shield contact
- Material casing: 1.5 mm galvanized, cold-rolled steel according to EN 1.4301, US S30400, AISI 304 and LMSAD110
- Material RJ45 socket: ABS UL 94V-0
- Contact RJ45 socket: Nickel plated phosphor bronze, 0.5 μ gold plated contact
- RJ-45 shielding: Nickel-plated bronze
- LSA-cutting terminal: Krone LSA+, UL 94V-0, galvanized phosphor bronze
- PRINTED CIRCUIT BOARD FR4, UL 94V-0
- Insertion force: 30N max. (IEC 60603-7-5)
- Tensile load: 7.7 kg between socket and plug
- OPERATING TEMPERATURE -20° C TO +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Plug-in cycle socket:> 750 acc. To ISO/IEC 11801, IEC 60603-7-5
- Terminal 200> acc. To ISO/IEC 11801, IEC 60603-7-5
- Wire intake: 22-26 AWG solid and stranded conductor
- Insulation resistance> 500 MOhm
- Contact resistance< 20 milliohms
- Dielectric strength 1000VDC (contact/contact), 1500VDC (contact/ground)
Scope of delivery
- 1 x 10" patch panel, 12-port
- 1x user manual
