Buy Digitus DN-95102-1 PoE injector 10 / 100 / 1000 MBit/s IEEE802.3af (15.4 W)

Black PoE injector device with two ports: 'LAN' and 'POE'. Labelled with 'POWER' and 'ACTIVE'. Device for power supply over Ethernet.

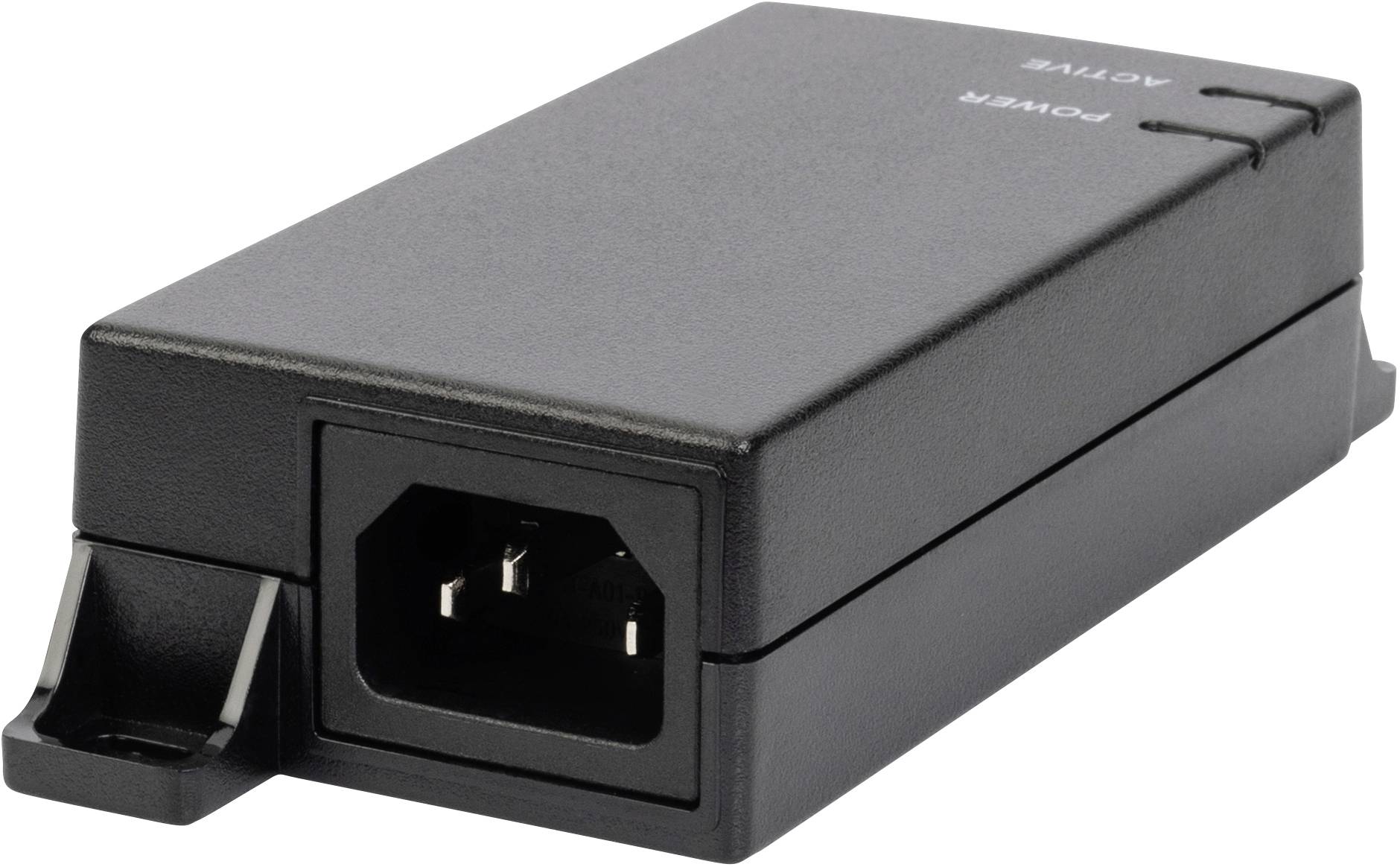

Black power supply with connection socket and indicator lights for Power and Active. Compact design for electronic devices.

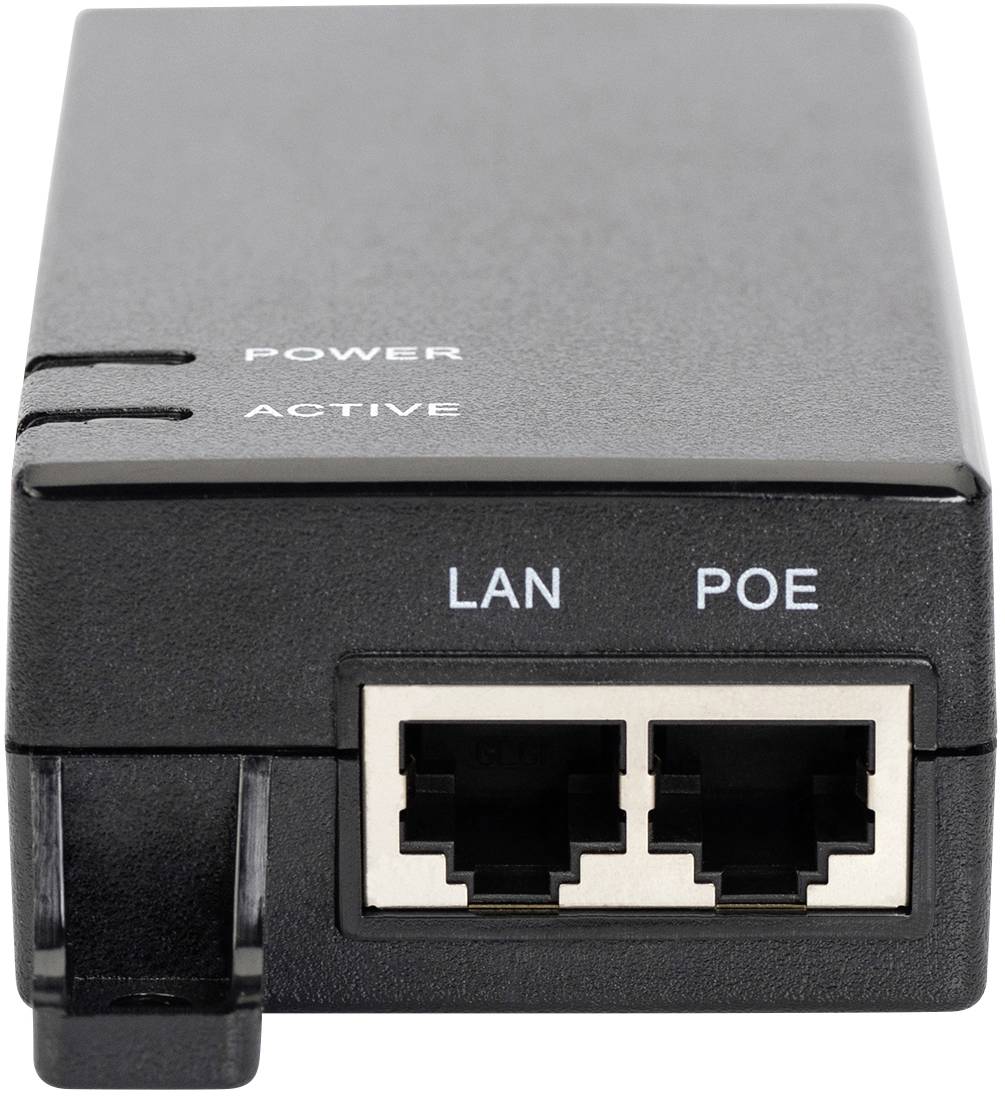

A black network device with two Ethernet ports, labelled 'LAN' and 'POE'. At the top are 'POWER' and 'ACTIVE'.

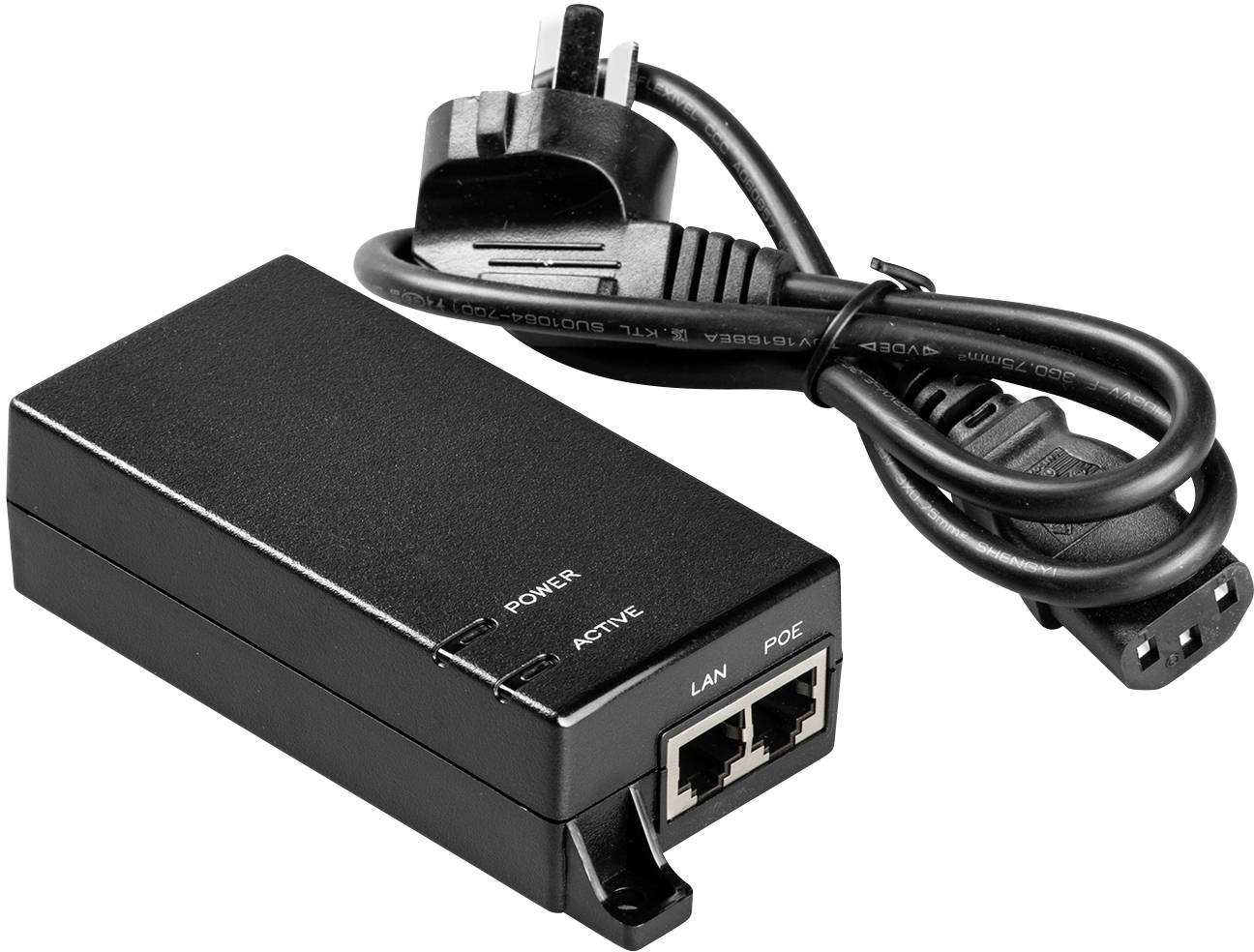

Network PoE adapter with two Ethernet ports and power cable, enables power supply to devices via a network cable.

Black, rectangular device with two LED indicators on the side, marked as 'Power' and 'Ready'.

A black electronic device with a three-pin plug socket.

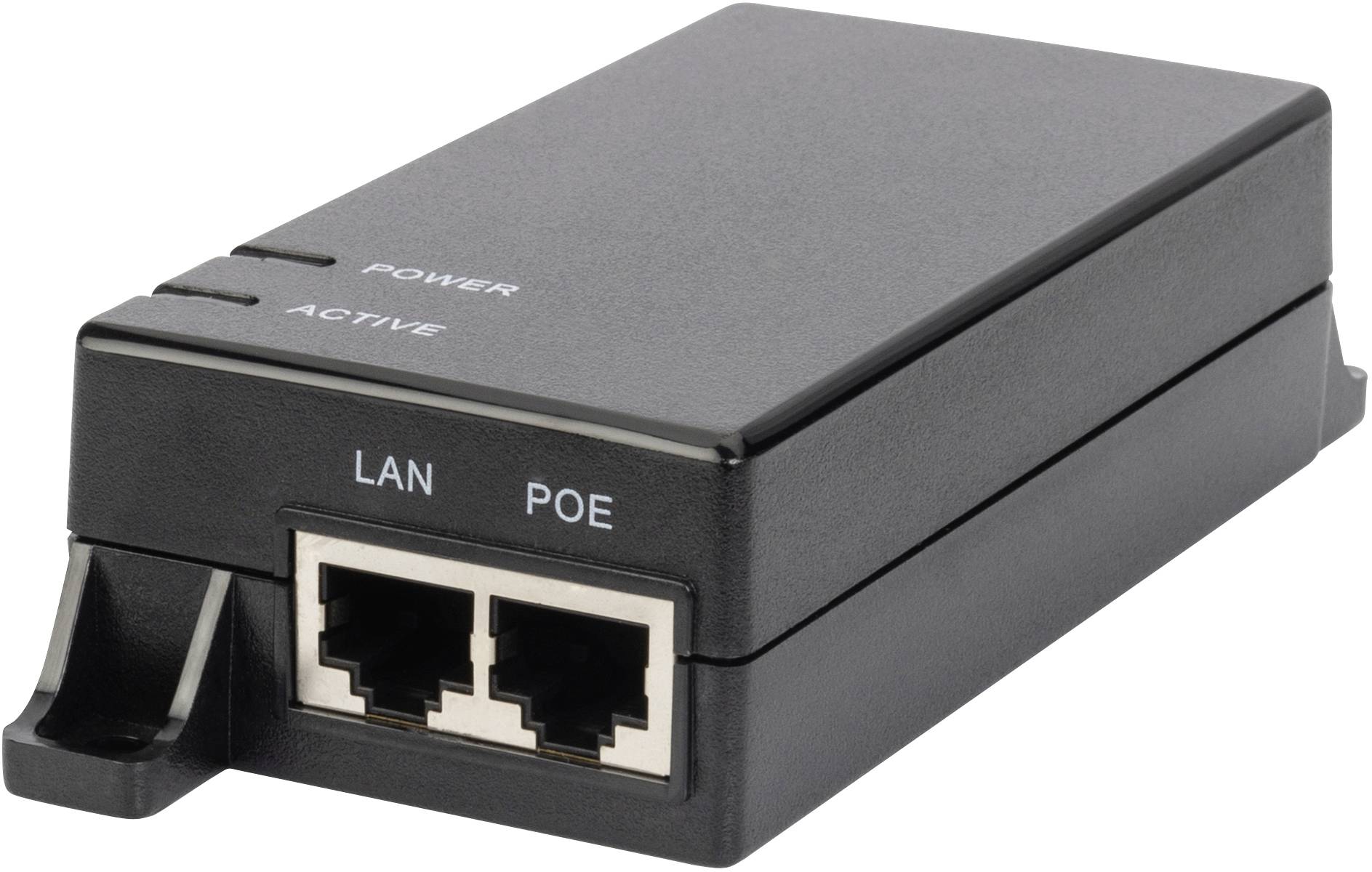

A black network adapter with two labels: 'LAN' and 'POE'. Front side shows two ports. Top side shows 'POWER' and 'ACTIVE'.

Black power supply with two status lights. Power cable connections visible on the front.

A black network device with two Ethernet ports, labelled 'LAN' and 'POE'. At the top are status indicators 'POWER' and 'ACTIVE'.

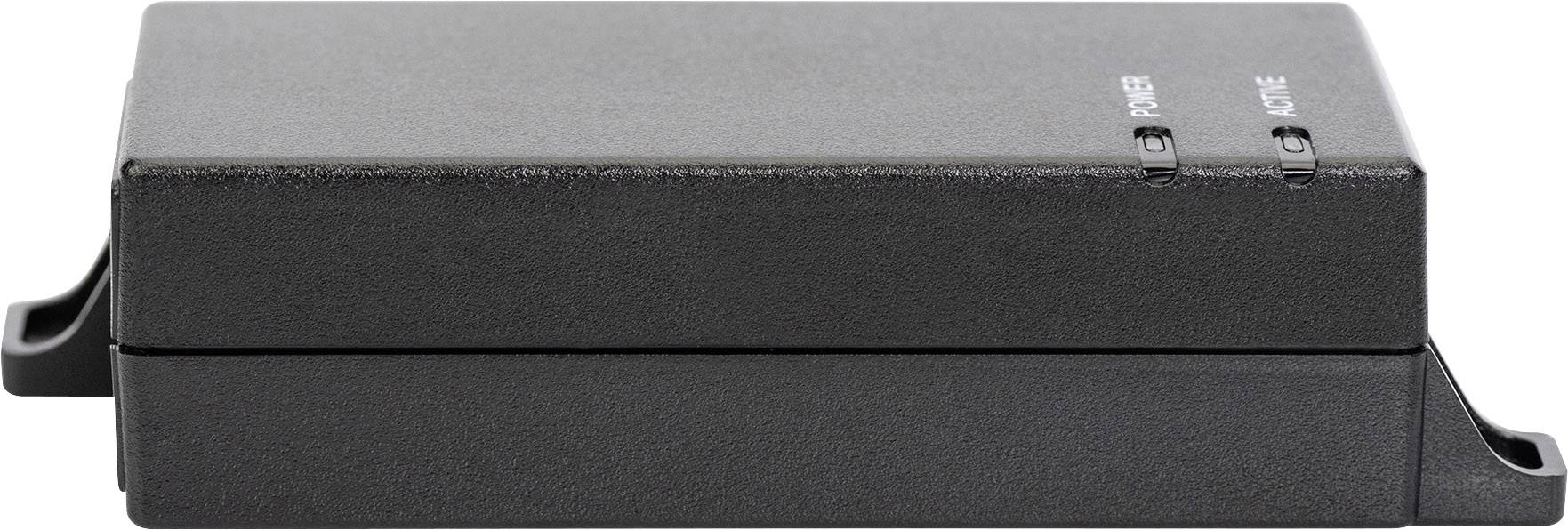

A rectangular, black electronic device with two buttons on the top surface, labelled 'POWER' and 'ACTIVE', shows the side view.

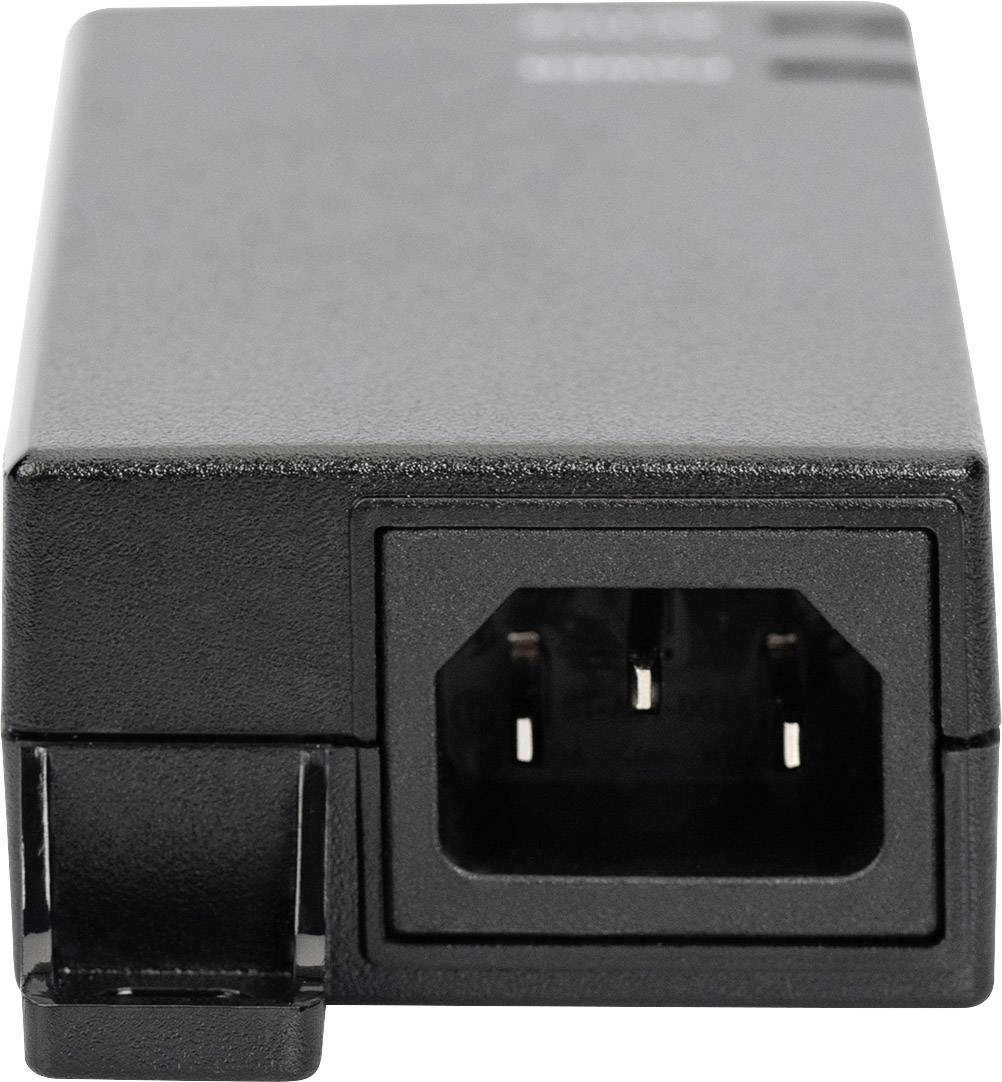

A black mains adapter with a three-pin plug on one side, suitable for electronic devices, is shown front-on.

A black power supply with two network ports (LAN and PoE) and a power cable.

Digitus DN-95102-1 PoE injector 10 / 100 / 1000 MBit/s IEEE802.3af (15.4 W)-12

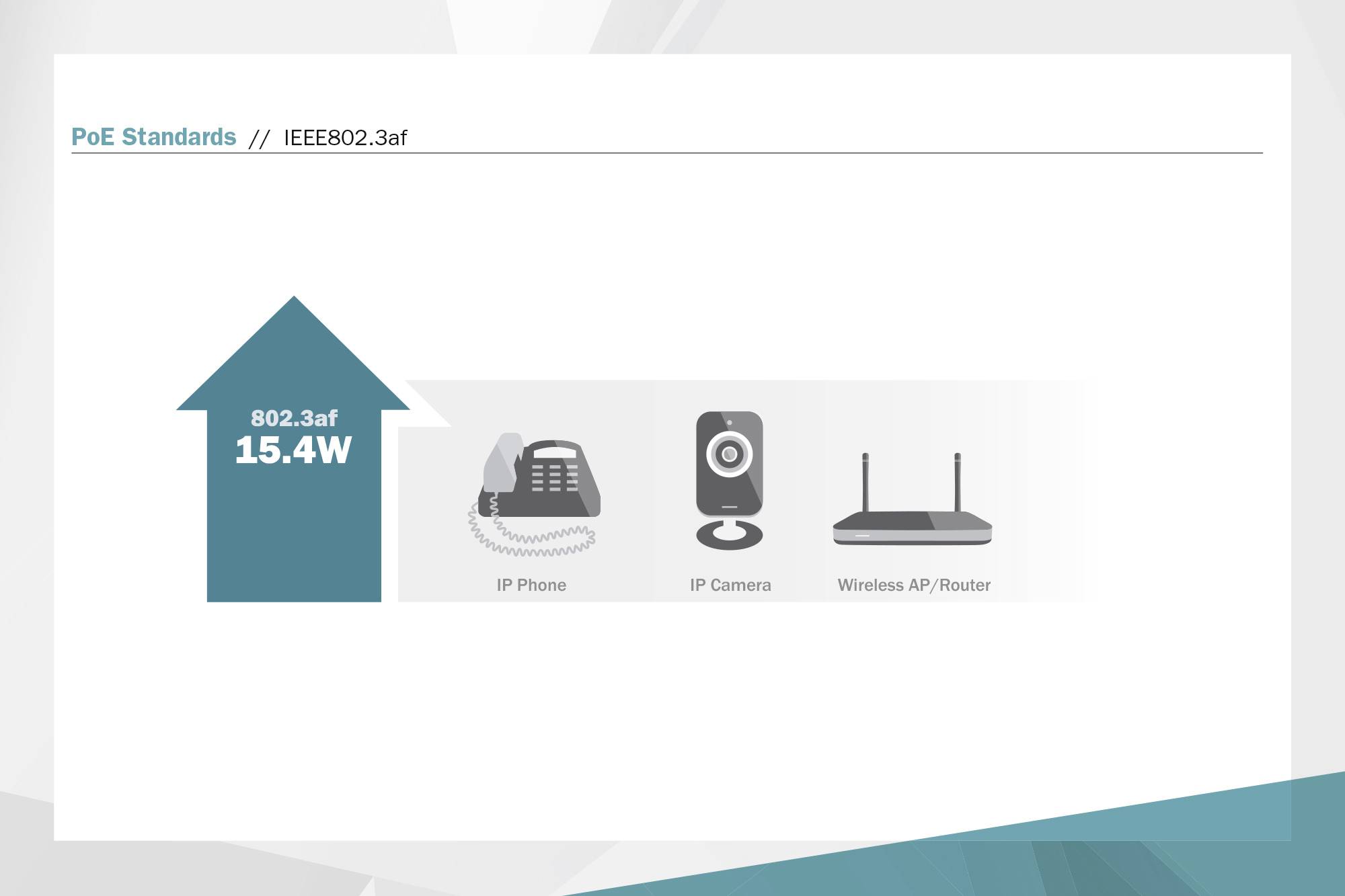

Arrow points to PoE Standard '802.3af', current: 15.4W, with symbols for IP telephone, IP camera and wireless router.

1/14

Fast track dispatch on Wed, 5 Aug

38 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 21.00 / piece)

€ 21.00

plus VAT.

Report legal concerns

Highlights & Details

Gigabit Ethernet PoE Injector, 802.3af power pins:4/5(+),7/8(-), 15.4 W

PoE is preferably used when no power supply is possible at the place of operation and suitable devices can also be supplied with power via the incoming network cable at the same time.
With a data transfer rate of 1 GBit/s, this PoE injector corresponds to the Gigabit Ethernet standard and has a maximum output voltage of 48 V as well as a power output of 15.4 W.
Two RJ45 sockets as well as a cold device connection are integrated in the plastic housing - the power supply via pin 4/5(+) & 7/8(-) is via the marked "PoE" network socket.

Technical specifications

LAN(RJ45) output, power supply via pin: 4/5(+), 7/8(-)
Cable connection 10/100/1000 Mbps
Own consumption: 1.6W max.
POWER SUPPLY: 100-240V AC, 0.8A
Operating temperature: -5°C to 45°C
Dimensions (mm): 134(L) x 56(W) x 33(H)
Ethernet speed: Gigabit
PoE standard IEEE802.3af (PoE)

Product type: PoE injector

PoE: IEEE802.3af (15.4 W)

LAN data transfer rate: 10 / 100 / 1000 MBit/s

Width: 56 mm

Height: 33 mm

Length: 134 mm

Factory colour: Multicolour

Weight: 0.86

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2290750 Digitus DN-95102-1 PoE injector 10 / 100 / 1000 MBit/s IEEE802.3af (15.4 W)

Conformity certificate

Conformity certificate 2290750 Digitus DN-95102-1 PoE injector 10 / 100 / 1000 MBit/s IEEE802.3af (15.4 W)

Description

With the help of the Digitus PoE injector you minimize your wiring expenditure during the installation of PoE-enabled devices such as IP network cameras. The data and power supply for the devices are only fed via an Ethernet cable. This makes laying a separate power line unnecessary and you are able to expand your network even where there are no sockets or power lines available. The injector is fully compatible with the IEEE 802.3af PoE standard and delivers an output power of 15.4 watt.

This text is machine translated.

Features

The PoE output has a current limitation, a short-circuit protection as well as an automatic end device detection and classification.
The power consumption of the injector itself is max. 1.6 Watt - a cold device connection cable is included in the delivery.
Conforms to the 802.3af PoE standard
48 volt output voltage, 15.4 watt
RJ45 LAN input
the output possesses a current limitation, a short-circuit protection as well as automatic end device detection and classification
