Buy Digitus DS-30000-1 2 ports Serial interface Serial (9-pin) PCIe

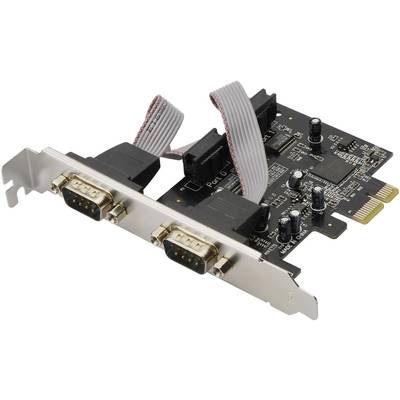

A PCIe expansion card with two serial ports, connected via ribbon cables, for computer port expansion.

Fast track dispatch on Wed, 5 Aug

234 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 21.84 / piece)

€ 21.84

plus VAT.

Report legal concerns

Highlights & Details

2-Port Serial Interface Card, PCIe

Perfect for connecting serial modems, PDAs, digital cameras, printers, ISDN terminal adapters and many more
Data transfer rate up to 230, 400 bps
Compliant with PCI Express base specification 1.1
2 x DSUB 9, serial ports, male, UART 16C950

Technical specifications

Product type: Serial interface

Slot: PCIe

No. of serial ports: 2 x

Power supply: not required

Chipset: Oxford

Port: 2 ports

Interfaces (output): Serial (9-pin)

Version: Cable

Cable use: PC

Weight: 0.13

UKCA: yes

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1020900 Digitus DS-30000-1 2 ports Serial interface Serial (9-pin) PCIe

Description

This PCI Express based serial Add-On card allows you to turn a PCI Express slot into two RS232 (DB9) serial ports. Based on a native single chip design reduces the load applied to the CPU by as much as 48% over conventional serial cards.

· 2 x DSUB 9, serial ports, male, UART 16C950
· Chipset: MCS9901
· Data transfer rate up to 230, 400 bps
· Compliant with PCI Express base specification 1.1
· Compliant with PCI power management 1.2
· Operating temperature: 0 °C - 70 °C
· Operating humidity: 25% - 65% RH (non-condensing)
· Supports Windows 10, 8.1, 8, 7, Vista, XP, Mac OS X and Linux
