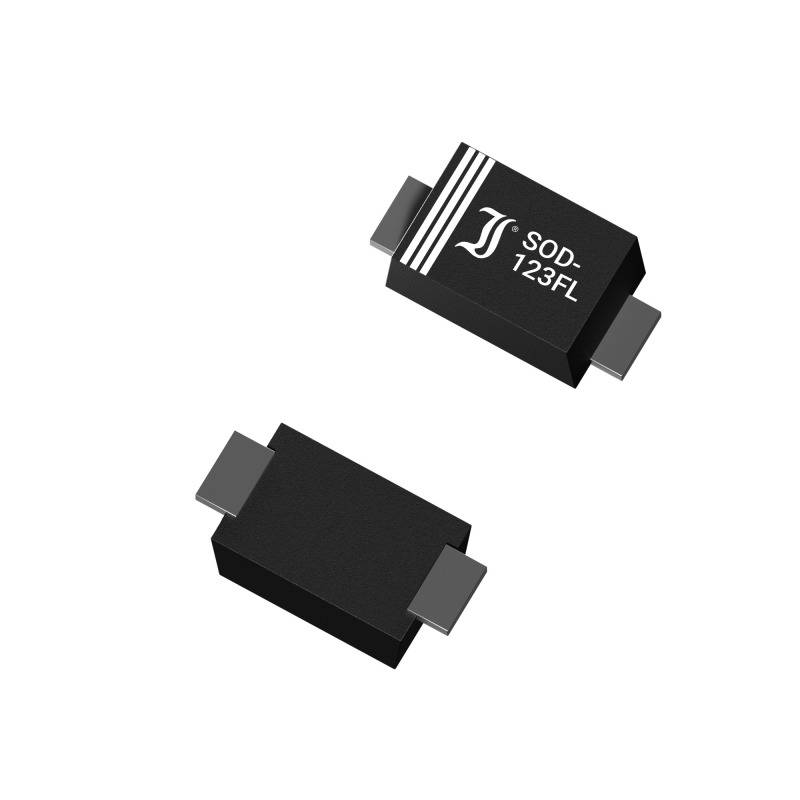

Image similar
Image similar
Diotec Zener diode MM1Z4735A Enclosure type (semiconductors) SOD 123FL Zener voltage 6.20 V Power (max) P(TOT) 1 W Rever
Part number:
Item no:
Z voltage U(Z)
6.20 V
Power (max) P(TOT)
1 W
Enclosure
SOD 123FL
Mounting type
Surface-mount
Reverse voltage U(R)
3 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
250
-
€ 0.08842
750
9% = € 0.01
€ 0.08036
1250
13% = € 0.01
€ 0.07714
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 250
Total (€ 0.08842 / piece)
€
Technical specifications
- Type SMDSOD 123FL housingZener voltage - Vzmin 5.80 VVZnom 6.20 VVzmax 6.60 VIze test 41.00 mAPower loss - Ptot 1,000 W.Junction temperature - Tjmax 150 °CReverse current - IR 10,000 µAVR 3 VInherent differential resistance - rzj: 2.0 ΩLock layer capacity - CJ: PFVR V
- Type
MM1Z4735A
- Manufacturer
Diotec
- Z voltage U(Z)
6.20 V
- Power (max) P(TOT)
1 W
- Operating temperature (max.)
150 °C
- Uz (max.)
6.60 V
- Uz(min.)
5.80 V
- Enclosure
SOD 123FL
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Reverse leakage current I(r)
10 µA
- Reverse voltage U(R)
3 V
- Product type
Zener diode
Documents & Downloads
Datasheet
Datasheet 2809948 Diotec Zener diode MM1Z4735A Enclosure type (semiconductors) SOD 123FL Zener voltage 6.20 V Power (max) P(TOT) 1 W Rever
