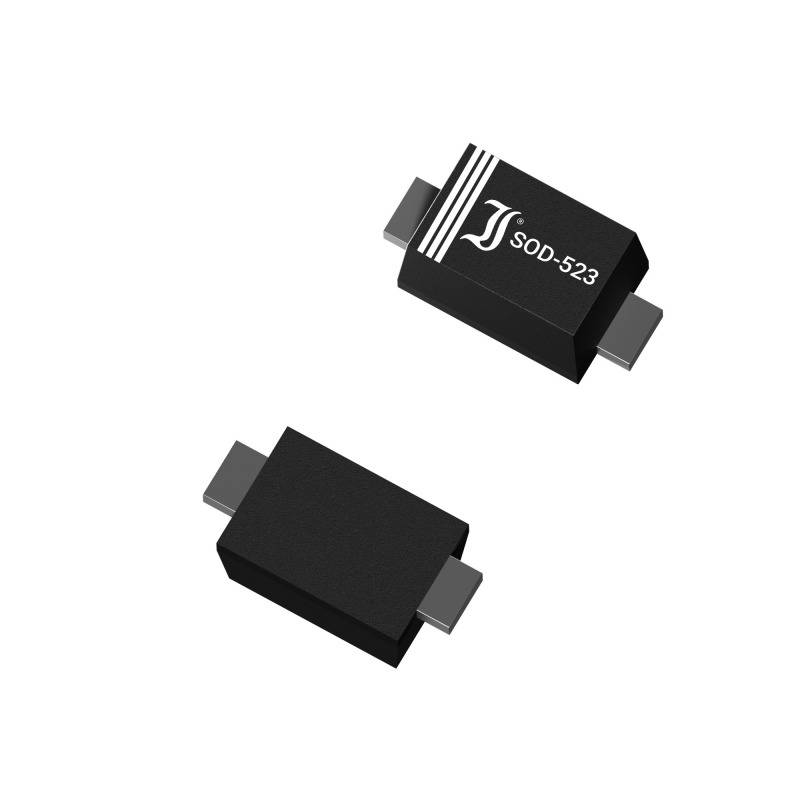

Diotec Zener diode MM5Z5V1 Enclosure type (semiconductors) SOD 523 Zener voltage 5.10 V Power (max) P(TOT) 0.3 W Reverse
Part number:
Item no:
Z voltage U(Z)
5.10 V
Power (max) P(TOT)
0.3 W
Enclosure
SOD 523
Mounting type
Surface-mount
Reverse voltage U(R)
2 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
750
-
€ 0.02860
2250
9% = € 0.00
€ 0.02599
3750
13% = € 0.00
€ 0.02495
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 750
Total (€ 0.0286 / piece)
€
Technical specifications
- Type SMDSOD 523 housingZener voltage - Vzmin 4.80 VVZnom 5.10 VVzmax 5.40 VIze test 5.00 mAPower loss - Ptot 0,300 W.Junction temperature - Tjmax 150 °CReverse current - IR 2,000 µAVR 2 VInherent differential resistance - rzj: 60.0 ΩLock layer capacity - CJ: PFVR V
- Type
MM5Z5V1
- Manufacturer
Diotec
- Z voltage U(Z)
5.10 V
- Power (max) P(TOT)
0.3 W
- Operating temperature (max.)
150 °C
- Uz (max.)
5.40 V
- Uz(min.)
4.80 V
- Enclosure
SOD 523
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Reverse leakage current I(r)
2 µA
- Reverse voltage U(R)
2 V
- Product type
Zener diode
